Instruction manual - English - EN
5MNVCHEG_2222_EN
5.5 Preparatory work before
installation
5.5.1 Mounting the bracket
The product must be fastened with
suitable equipment. The fastening means
must guarantee mechanical sealing when
a force equal to at least 4 times the weight
of the device is applied.
6 Installation
6.1 Housing opening

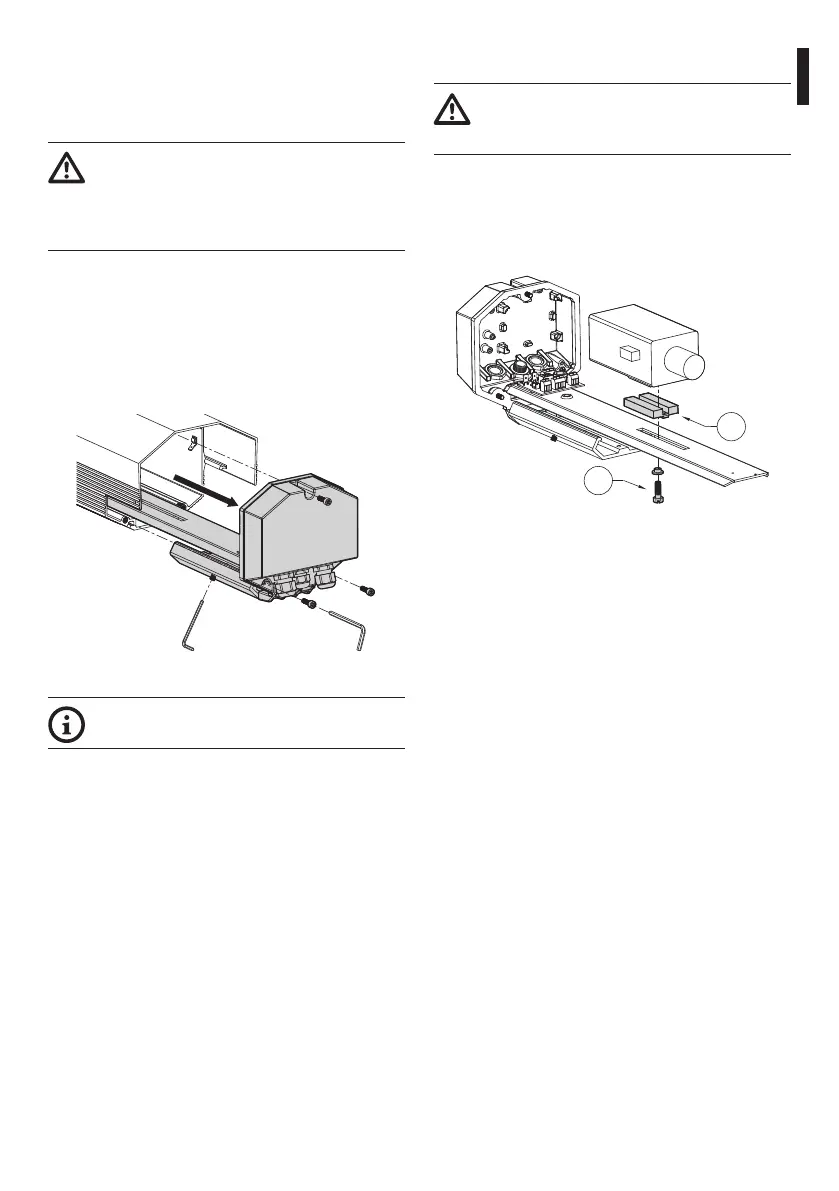

Unscrew the screws on the rear cover plate and
loosen the 2 dowels on the outer slide. Slide out the
housing body.
Fig. 1
After installation and wiring, close the
product.
6.2 How to install the camera
Power supply can be provided by the
board supplied with the product. Make
sure the voltage values are appropriate.
Open the housing as described in the relative
chapter (6.1 Housing opening, page 5).
Fasten the camera with the 1/4" screw (01). To
position the camera and lens correctly, if necessary,
use the supplied spacers. (02).
01
02
Fig. 2
Remove the conductors protective sheathing and
connect them to terminal (camera power supply, 6.3
Board description, page 6).
The camera’s power supply cable conductors must
be tied up with a cable tie next to the terminal. Keep
the signalling and power supply cables separated
from each other.
Reposition the internal slide and tighten the screws
that had been loosened previously.
