EN - English - Instructions manual
7
9.3 Electrical
Heater Ton 15°C±3°C (59°F ±37°F) Toff 22°C±3°C (71°F
±37°F)
- IN 12Vdc/24Vac, consumption 20W max
- IN 115/230Vac, consumption 40W max
Blower with thermostat and air filter, Ton 35°C±3°C
(95°F±37°F) Toff 20°C±3°C (71°F±37°F) and back cover
- IN 12Vdc, consumption 4W max
- IN 24Vac, consumption 4W max
- IN 230Vac, consumption 4W max, complete with
voltage transformer
Not compatible with bracket with internal cable channel.
Camera power supply
- IN 100-240Vac - OUT 12Vdc, 50/60 Hz, 1A
- IN 230Vac - OUT 24Vac, 50/60Hz, 400mA
9.4 Environment
Indoor / Outdoor
Operating temperature with heater: -20°C / +60°C (-4°F
/ +140°F)
Resistant to salty fog until 1000 hours (according to
ISO9227)
9.5 Certications
CE EN61000-6-3, EN60065, EN50130-4
IP66/IP67 EN60529 with cable glands
IP66/IP67 EN60529 with special gaskets and bracket with
internal cable channel
IP55 EN60529 with bracket with internal cable channel
EAC certification

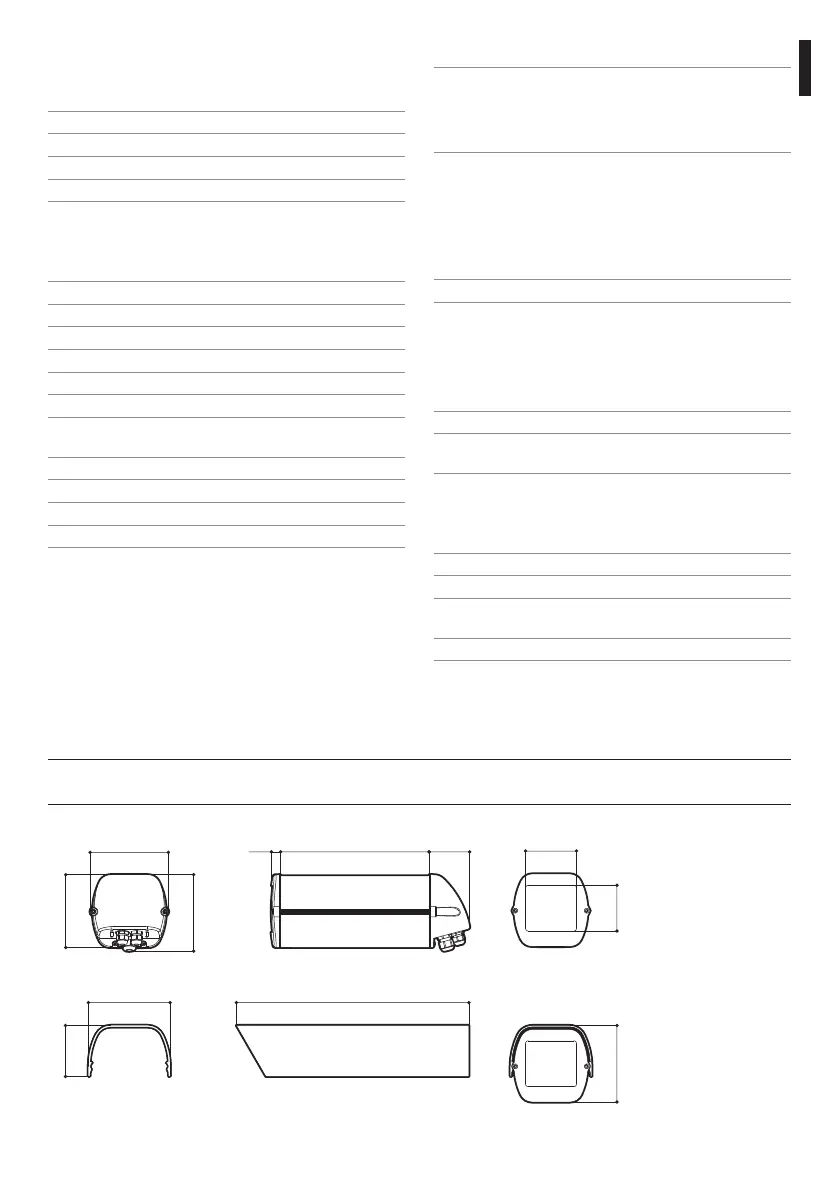

10 Technical drawings
j
The values are in millimeters.
410 / 470144
90
135
138
260 / 320 71
90
16
128
81
135
Fig. 08 HEB
9 Technical data
9.1 General
Aluminium back and front cover plates
Extruded aluminium body, external slide and sunshield
Epoxypolyester powder painting, RAL9002 colour
Stainless steel external screws
Supplied with instruction manual, desiccant bag,
accessories for camera and lens mounting
9.2 Mechanical
3xM16 cable glands
Glass window (WxH): 90x81mm (3.5x3.2in)
Internal usable area (WxH): 90x85mm (3.5x3.3in)
Internal usable length without accessories
HEB26 260mm (10.2in)
HEB32 320mm (12.6in)
Internal usable length with heater and/or power supply,
or heater and/or blower
HEB26 190mm (7.5in)
HEB32 250mm (9.8in)
Unit Weight:
HEB26 2.7kg / 5.9lb
HEB32 3.2kg / 7lb
