Instruction manual - English - EN
7MNVCIRN_2222_EN

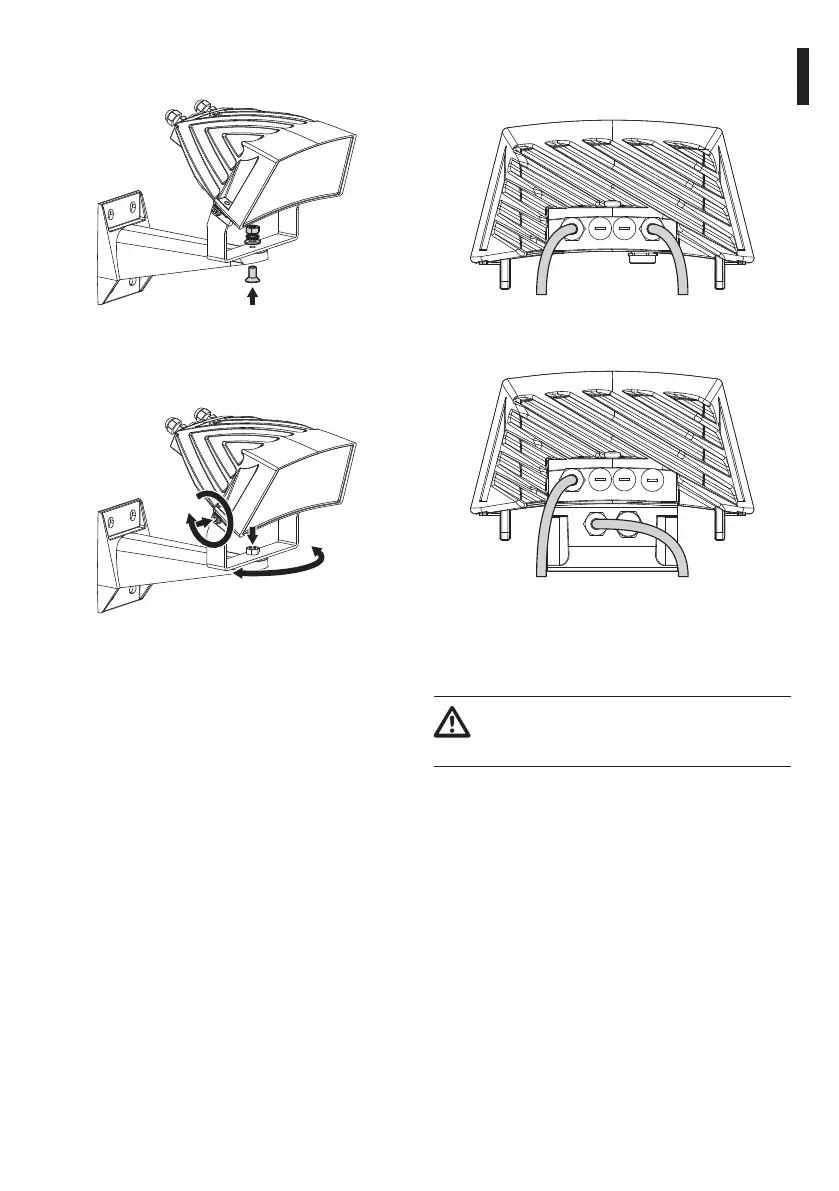

Fasten the illuminator, complete with its bracket,
using the screw, the nut and the washer supplied.
Fig. 6
Set the illuminator’s vertical and horizontal
inclination by adjusting the two fastening screws.
Fig. 7
Check the resulting illumination range on the screen.
Tighten all the screws.
7.2 Description of connection
cables
Control cable Power supply
Fig. 8 12Vdc, 24Vdc and 24Vac version.
Control cable Power supply
Fig. 9 From 100Vac to 240Vac version.
7.2.1 Power supply cable version 12Vdc,
24Vdc, and 24Vac
The device is Class III. Provide power
supply using a safety transformer or a SELV
continuous current power supply.
The illuminator is provided with a 2m (6.56ft) power
cable.
Power supply cables (blue, brown): Connect the
two poles to the supply (24Vac, 50/60Hz or 12-24Vdc).
In case of continuous current power supply, polarity
is irrelevant.
For maximum lengths and recommended cable
sections, refer to the relative chapter (7.2.4 Cable
technical specifications, page 9).
