Instruction manual - English - EN
9MNVCIRN_2222_EN

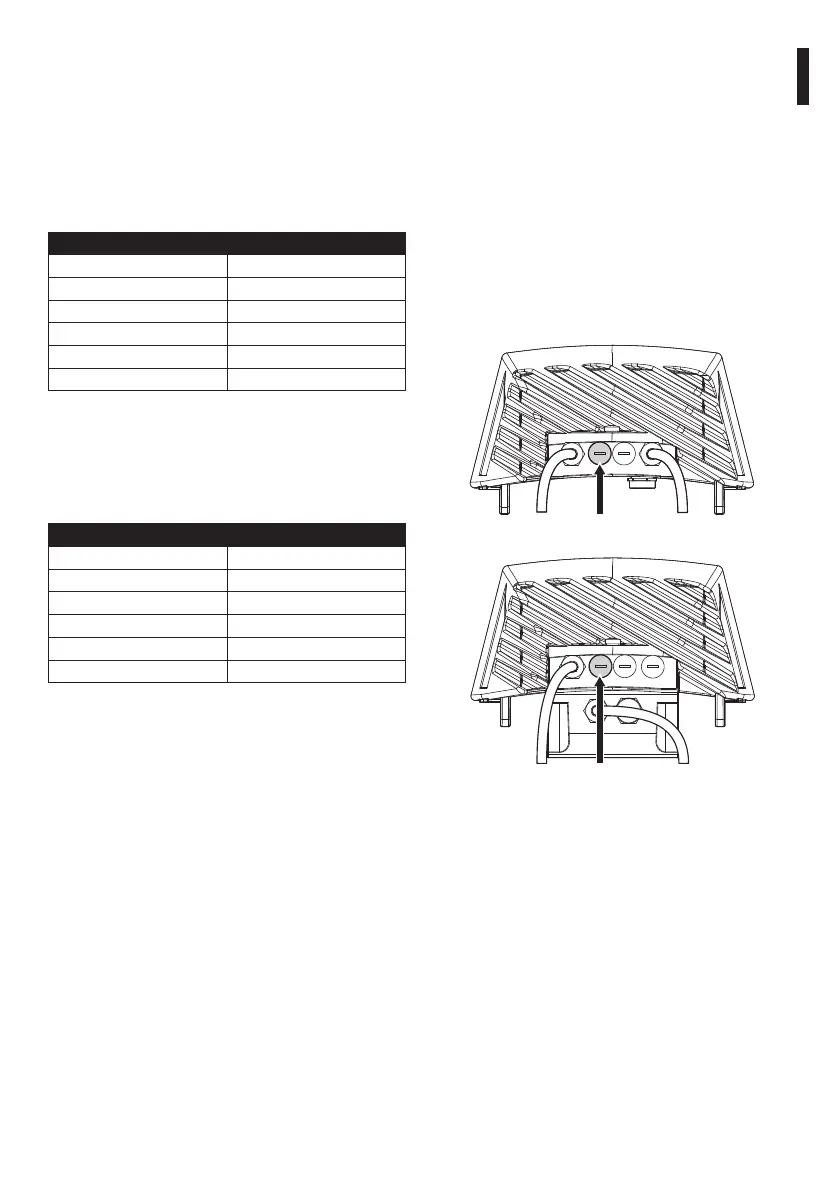

7.2.4 Cable technical specifications
Depending on the type of illuminator and supply
voltage, comply with the following maximum lengths
for the power cables.
Power supply, 12Vdc
• Voltage drop: 0.6V max.
• Minimum voltage at the power cable input
provided with the illuminator: 11.4Vdc.
CABLES SPECIFICATIONS (POWER SUPPLY, 12VDC)
Cable section Maximum length
0.75mm² (18AWG) 4.5m (14.8ft)
1mm² (17AWG) 6.5m (21.3ft)
1.5mm² (16AWG) 9m (29.5ft)
2.5mm² (14AWG) 15m (49.2ft)
4mm² (10AWG) 24m (78.7ft)
Tab. 2
Power supply, 24Vac or 24Vdc
• Voltage drop: 3V max.
• Minimum voltage at the power cable input
provided with the illuminator: 21Vac.
CABLES SPECIFICATIONS (POWER SUPPLY, 24VAC OR 24VDC)
Cable section Maximum length
0.75mm² (18AWG) 35m (114ft)
1mm² (17AWG) 50m (164ft)
1.5mm² (16AWG) 80m (262ft)
2.5mm² (14AWG) 120m (393ft)
4mm² (10AWG) 200m (656ft)
Tab. 3
Power supply, from 100Vac up to 240Vac
• The cable section is less critical, so no particular
prescription is requested. Ensure the ground
connection is efficient for safety reasons.
• Cable minimum section: 0.75mm² (18AWG).
Control cable
• External command: Red, Green.
• Follow command: White, Black.
• Cable minimum section: 0.34mm² (22 AWG).
• Cable length: 200m (656ft) max.
7.2.5 LED illuminator switching on
threshold adjustment
Adjusting the illuminator
trip threshold
Adjusting the illuminator
trip threshold
Fig. 11
