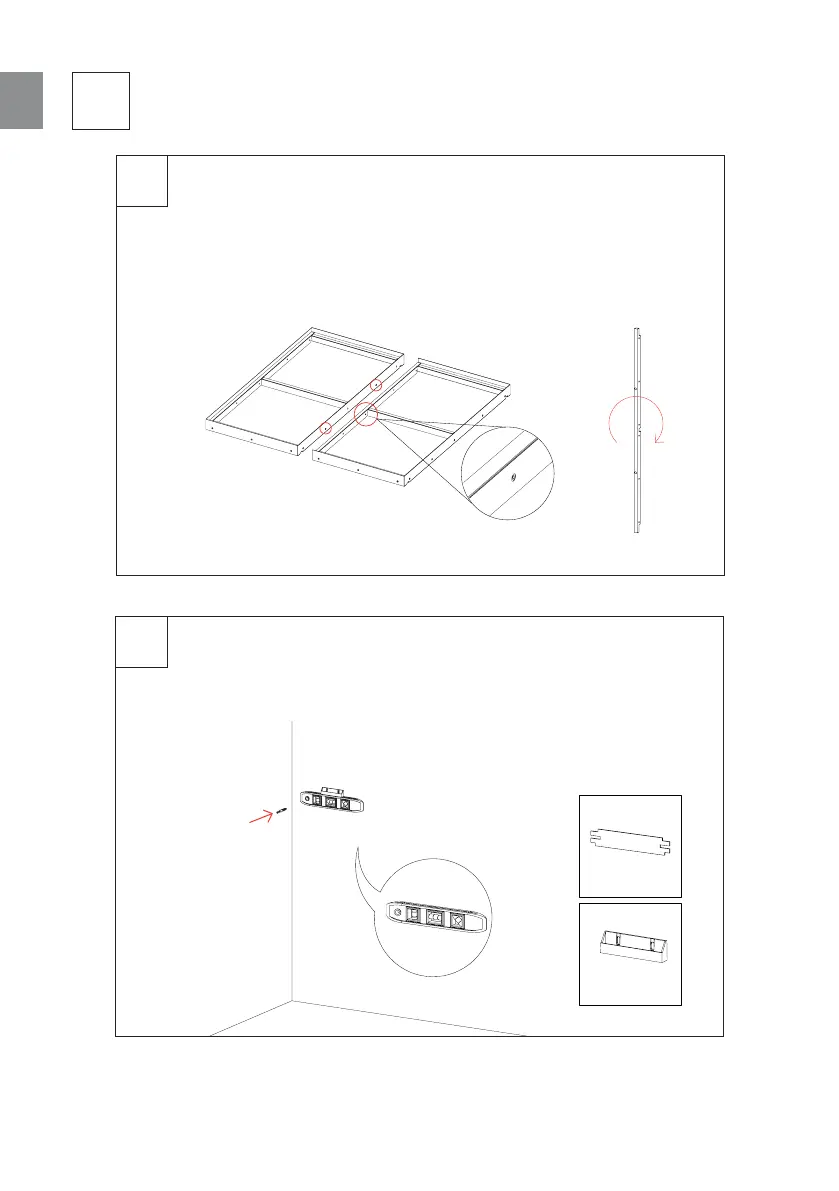

Wall installation - Two units

3.1

When installing two or more VicSpacer side by side, use only one

metal joint (side plate) between them, xed to one of the structure

with the screws provided (only on positions A and B).

The contact plywood strip of the right side unit has to be rotated 180°

so that the xing nuts face the same direction and allow tightening

between VicSpacers with the screws provided (H).

3.2

Steps Material

L

F

After dening the place where you want to install the VicSpacers,

start marking the position of the xation clips as described on pages

6 and 7 of the manual - Ways of using the gauge F.
