Overall dimensions and mounting dimensions

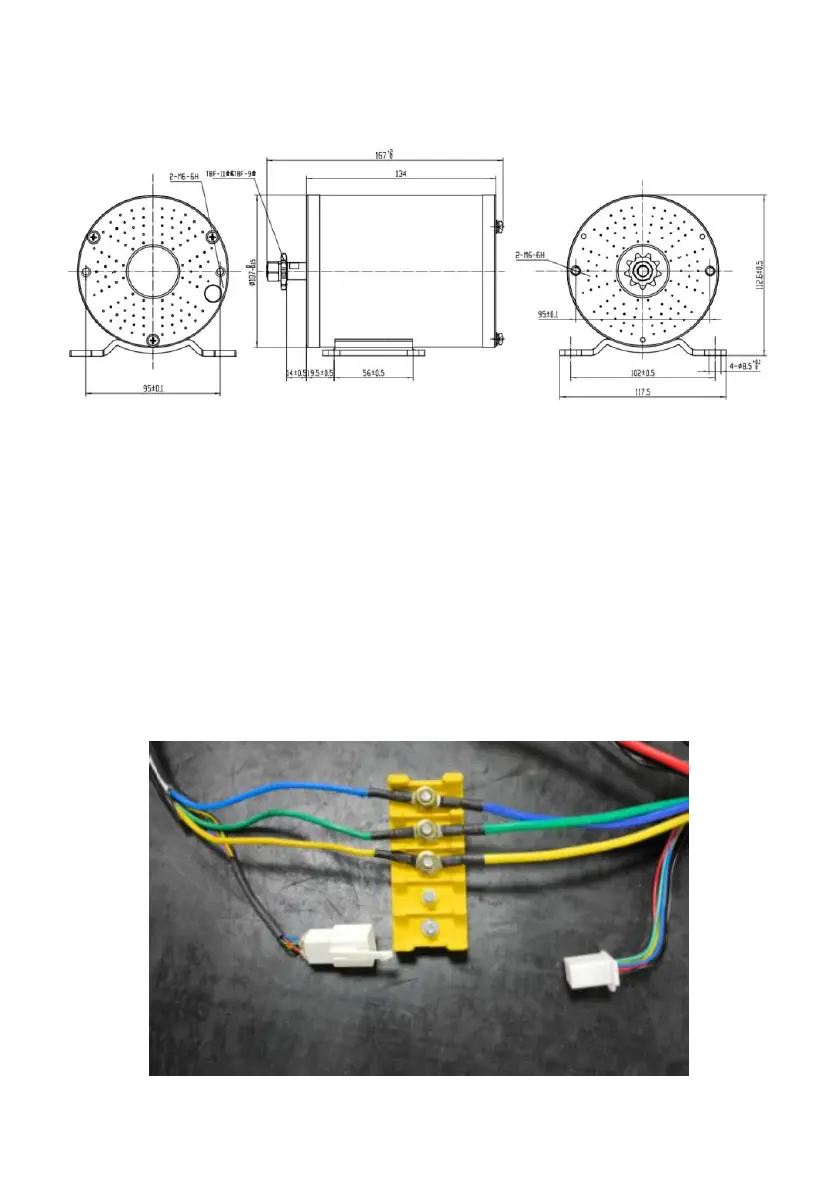

The dimensions and mounting dimensions of the motor are shown in Figure 1.
Figure 1 Motor dimensions and mounting dimensions
Install
1. Motor
The A-phase line of the motor lead out main line is blue, the B-phase line is green,
and the C-phase line is yellow; The positive pole of the power supply in the signal
line of the position sensor (Hall) is red, and the negative pole is black; The
A-phase sensor signal line is blue, the B-phase sensor signal line is green, and the
C-phase sensor signal line is yellow. The colors on both sides of the motor line are
the same, and the motor wiring is shown in Figure 2.
Figure 2 Motor wiring
