- 13 -
4.4 Electric door lock
Electric door lock: 1. Red: p+ Orange: VCC
The electric door lock must be kept normally open, or the red and orange lines
must be connected by a short circuit.

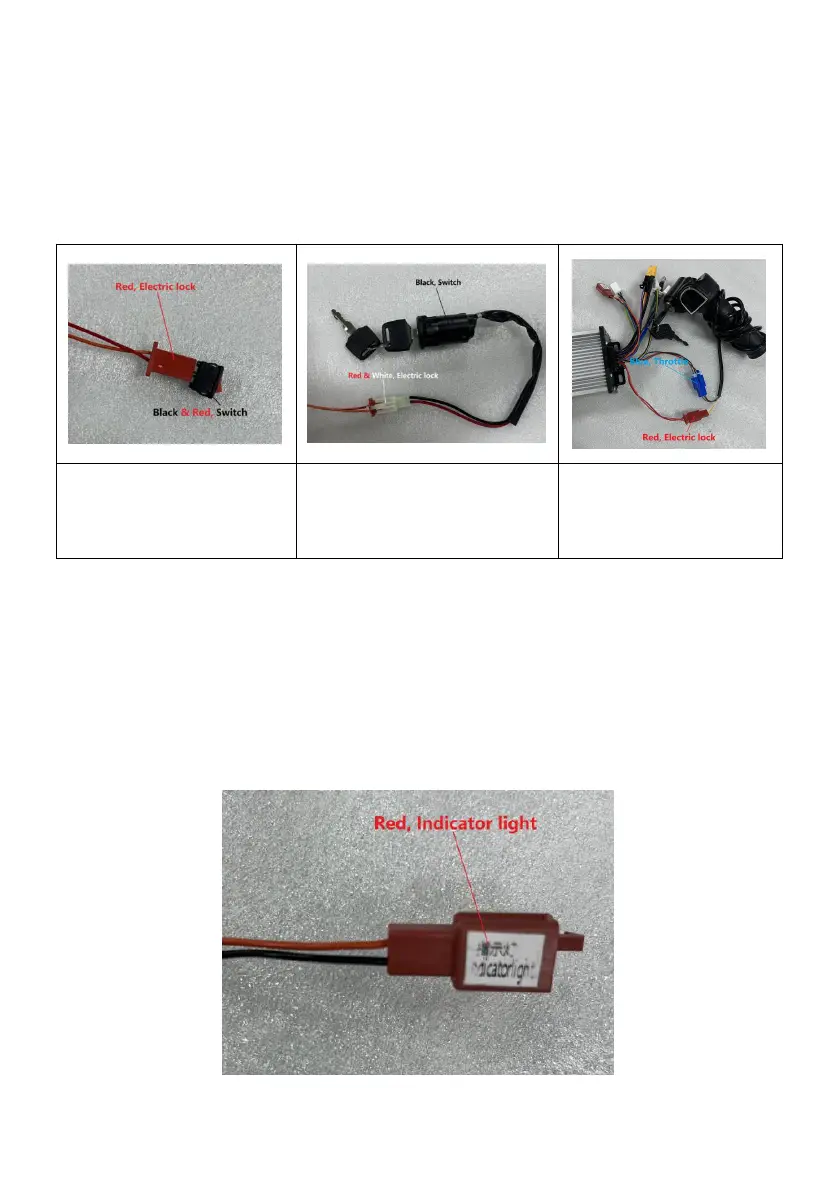

Electric door lock wiring has the following types, electric door lock wiring is shown
in Figure 12.
1. two-pin switch
controls the electric door
lock
2. Electric door lock white
plug-in and red plug-in
connection
3. With electric door
lock handle
Figure 12 Wiring of electric door lock
4.5 Indicator lights
Indicator light: Connected to the battery level display, it can be used as a DC48V
voltage output for DC48V to emit light. The positive and negative terminals cannot
be reversed. Orange is 48V+and black is 48V -. The wiring of the indicator light is
shown in Figure 13.
Figure 13 Wiring of indicator lights
