- 6 -

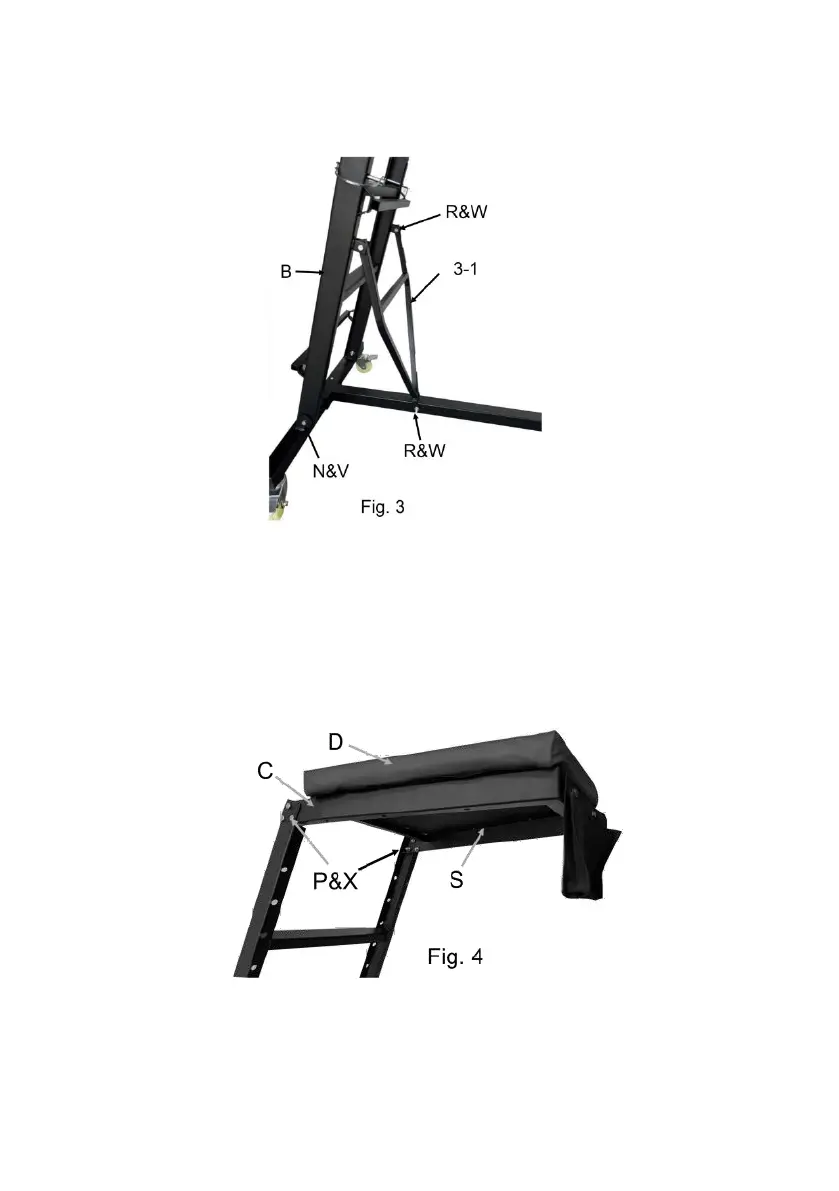

3. Install the ladder assembly (B) by inserting a frame bolt(N) through each side of
the base of a lock nut1 (V). Swing the ladder's angle support (Fig.3 3-1) into the
height adjustment holes (3-2). Make sure the crossbar is firmly in place.
4. Match the angled opening with the adjustment notches. Insert a height
adjustment plate bolt (R) through the bolt hole at each end of the plate. Secure
each bolt with a lock nut 2 (W). Repeat on the other side.
5. Attach the chest deck frame (C) to the top of the ladder assembly (B) using
three chest frame bolts (P) and lock nut3 (X) on each side. Attach the chest deck
pad (D) using two Phillips screws(S) from underneath.
