- 27 -
Lithium battery communication and setting
if choosing lithium battery, make sure to connect the BMS communication cable
between the battery and the inverter. This communication cable delivers
information and signal between lithium battery and the inverter.This information is
listed below:
Re-configure charging voltage, charging current and battery discharge cut-off
voltage according to the lithium battery parameters.
Have the inverter start or stop charging according to the status of lithium
battery.
Connect the end of RS485 of battery to RS485 communication port of
inverter

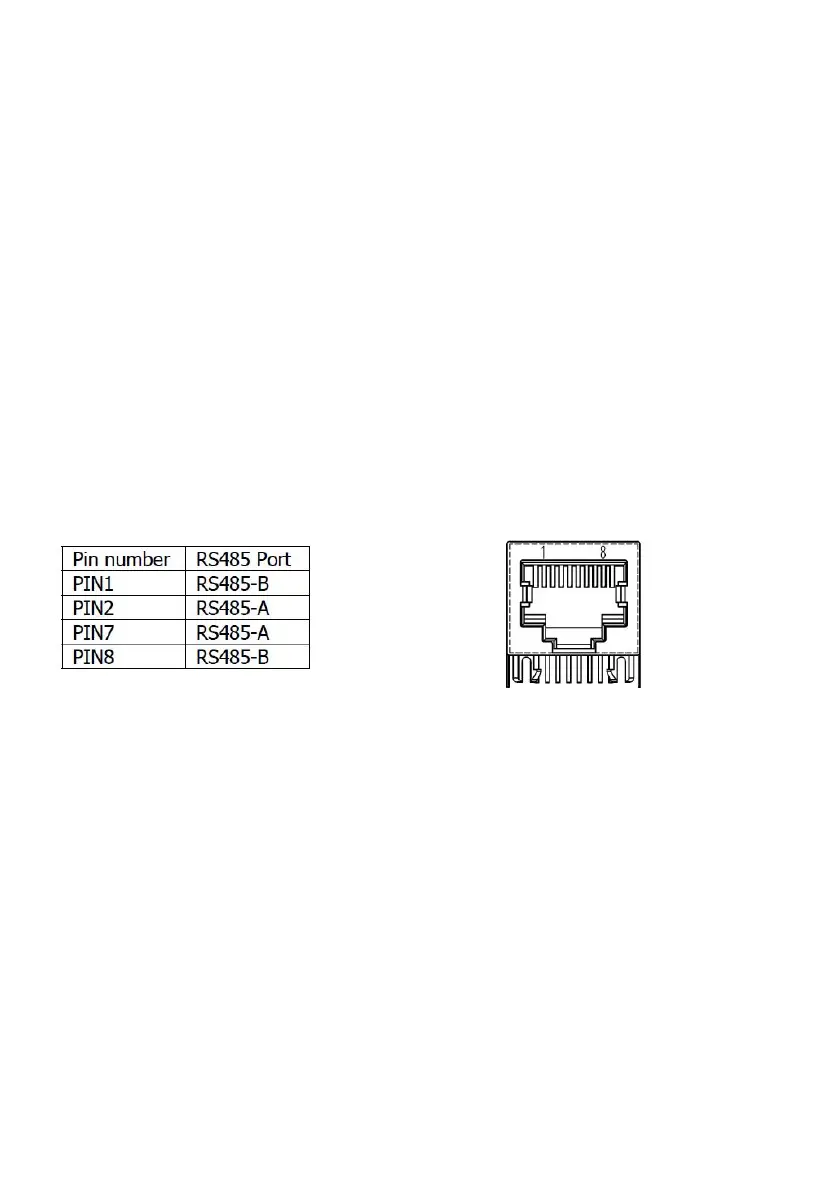

Make sure the lithium battery RS485 port connects to the inverter is Pin to Pin, the
communication cable is inside of package and the inverter RS485 port pin
assignment shown as below:
LCD setting
After connecting, you need to finish and confirm some settings as follow:
Select program 05 as lithium battery type.
Confirm program41/42/43/44/45 setting value.
Note: Program 43/44/45 are only available with successful communication, they
will replace the Program 12/13/29 function, at the same time, program 12/13/29
become unavailable.
LCD Display
If communication between the inverter and battery is successful, there is some
information showing on the LCD as follow：
