3.2 Take the support arm, use it mark the hole position at a suitable position on the
outside of the vehicle (Figure C6), and drill a Φ5 installation hole on the vehicle
body (Figure C7).

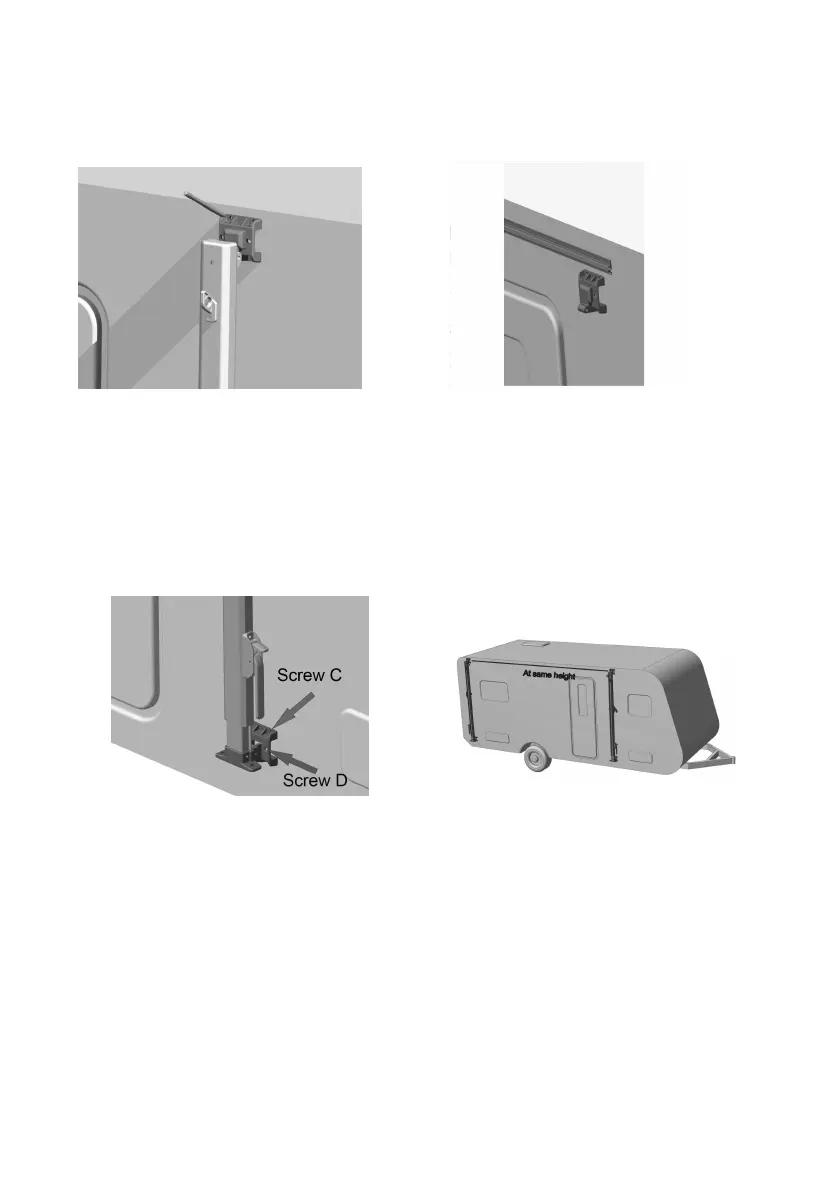

Figure C6 Figure C7
3.3 Take the bottom brackets from the arms, put them to the bottom install position
with aluminium plates, fix them with Screw C and Screw D(Figure C8), Next
assembly the arm to the bracket, fix the upper brackets with Screw C and Screw D
too. Make sure the two arms are in same height.(Figure C9)
Figure C8 Figure C9
3.4 Pull out the connecting tubes at both ends of the middle winding tube to
the red limit position, assemble the left and right winding tubes, and fix
them with Screw A at the connection. (Figure C10, Figure C11)
