PRODUCT CAPABILITIES
The VEVOR 28104 series dovetail jig will help you cut these joints
efficiently. An accessory kit will enable you to cut miniature versions of
these joints for small gift boxes or cubbyhole drawers on a roll-top
desk. The 28104 series also has the capability to cut more advanced
joints (dovetails that skip pins, wood hinges, end-to-end joints, various
types of angle joints, and joints with inlays).
The specific model capabilities are:
Jigs
28104-1 Dovetail Jig - half-blind
28104-3 Deluxe Dovetail Jig - through dovetail, box joint, half-blind,
and sliding dovetails.
JIG OVERVIEW

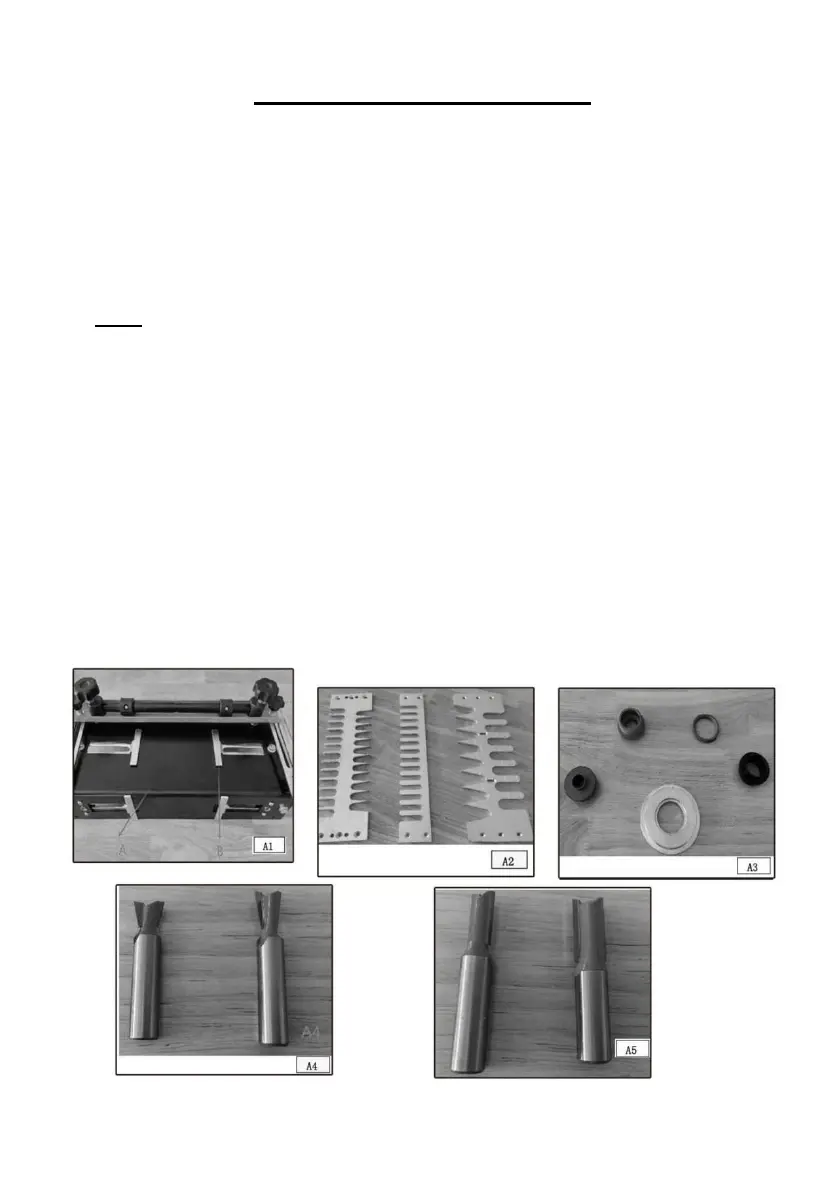

The 28104 series dovetail jigs come equipped with an easy-to-mount,
heavy-duty steel base (A) Fig. A1 featuring a clamping system
designed to hold wood and minimize board slippage during cuts.
Troubleshooting tips (B) are provided on each side of the base. Three
different machined aluminum templates (Fig. A2) can be used on the jig
system to create all joints described in this manual. The fingers on
each template are used in combination with the template guides (Fig.
A3) to guide the router in the proper motion. Additionally, each template
aids insetting proper board alignment and router bit depth. Dovetail bits
and straight bits (Figs. A4 and A5) are used with this jig system.
