- 28 -

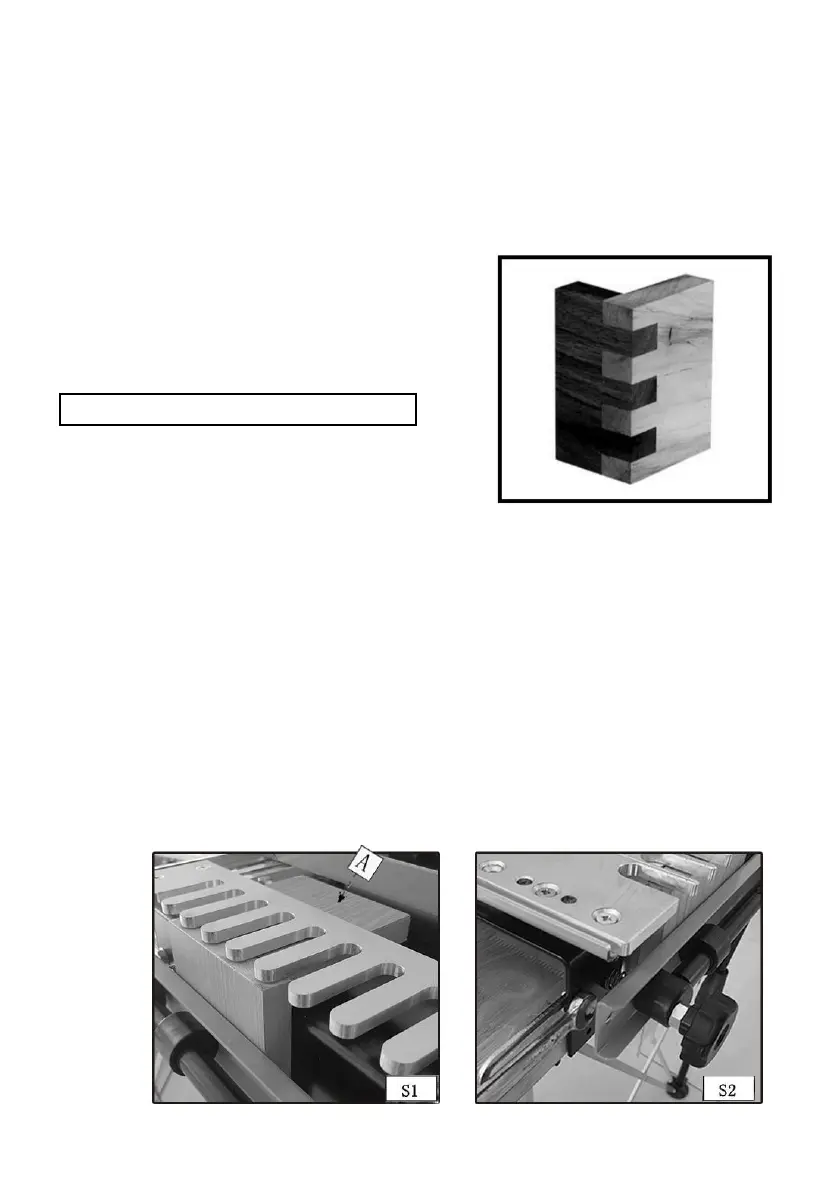

BOX JOINTS
Box joints have straight protrusions that interlock and must be held
together by glue. The large amount of gluing surface provides the strength
necessary for large projects.
NOTE:
If you are using the 28104 dovetail jig,
you will need the 28104 accessory kit to make
this joint. You will need the 28104-3 accessory
kit for the miniature box joints.
Box joint fingers are spaced in 1" increments
(1/2" for miniature).
●
Through Dovetail and Box Joint Template
● 1/2*15.4*13 Dovetail Bit
●
3/4" O.D. Template Guide,
● Template Guide Lock Nut,
CUTTING THE FIRST WORKPIECE
Step 1 - Clamp a scrap board (A) Fig. S1 in the upper clamp
(horizontal mounting position) that is the same thickness as the
second workpiece.
Step 2 - Use the wrench (A) Fig. S2 to loosen the screw on the left
offset guide (B). Move the guide to the far left.
Step 3 -
Mount the workpiece (A) Fig. S3 in the lower clamp (vertical
mounting position) with the outside surface against the jig base.
ITEMS NEEDED
