- 16 -
Orient your wood so that end grain is joined to end grain (Fig. L3) to
make the joint strong. Using the long grain (Fig. L4) in the workpiece
will result in a weak joint.
BOARD THICKNESS

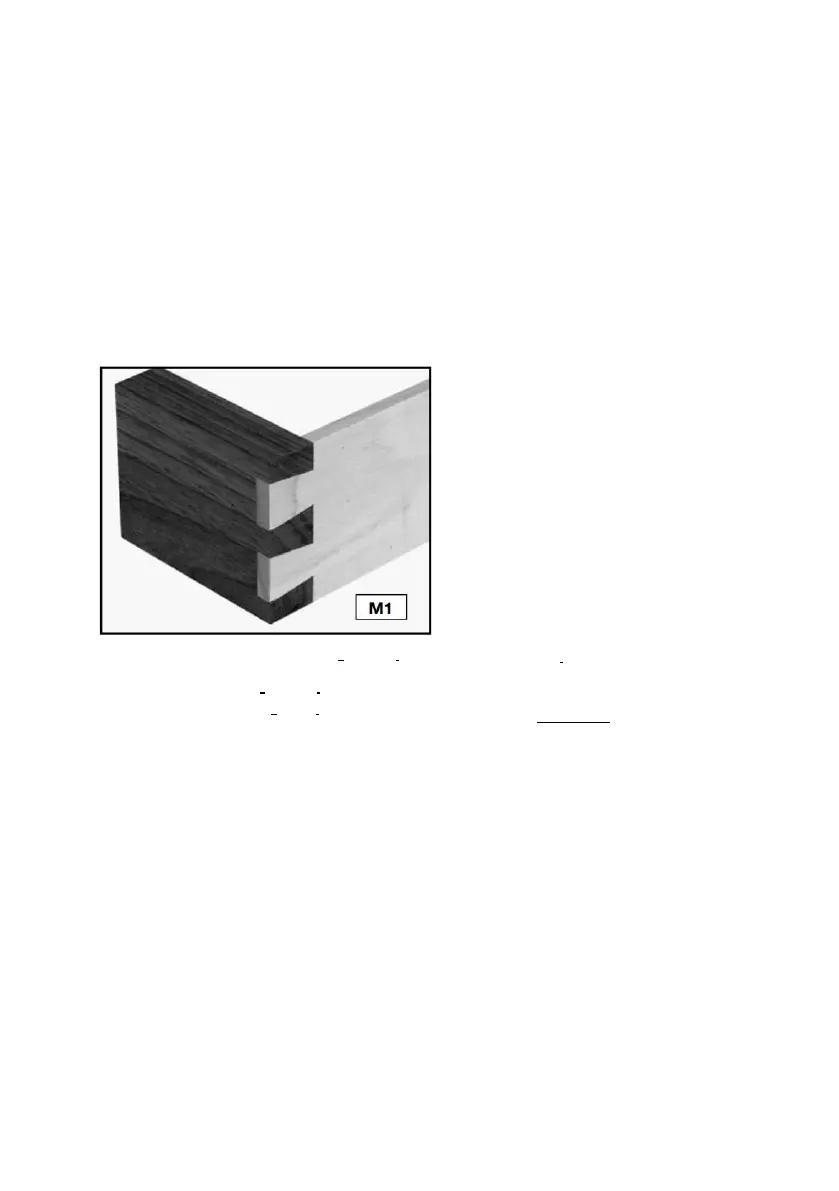

NOTE: You can join two workpieces that are different thicknesses (Fig.
M1).
The clamps on the 28104 series jigs will hold wood from 1/4" to
1-1/8" thick. Use the following information as a guide to help you
decide the thickness of wood for your projects.
Standard through dovetails
········
Tail Board
Range
········
1/4" to 1"
Pin Board Range
········
1/4" to 3/4"
Half-blind dovetails
······
Standard and Miniature 1/2" to 1-1/8"
BOARD LENGTHS
The 28104 series dovetail jigs are capable of making joints up to
12".For through dovetailsand box joints, cut your workpieces to the
same length as the outside dimension of your final project.
To calculate the length of the half-blind tail board, take the inside
dimension of the final project and add the router bit depth of cut. If the
tail board has a half-blind on both ends, double the added dimension.
The length of the pin boards (drawer front) remains the same.
