Table of Contents Rev. 5/8/2019 ZLTT MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Co. Page 7 of 15

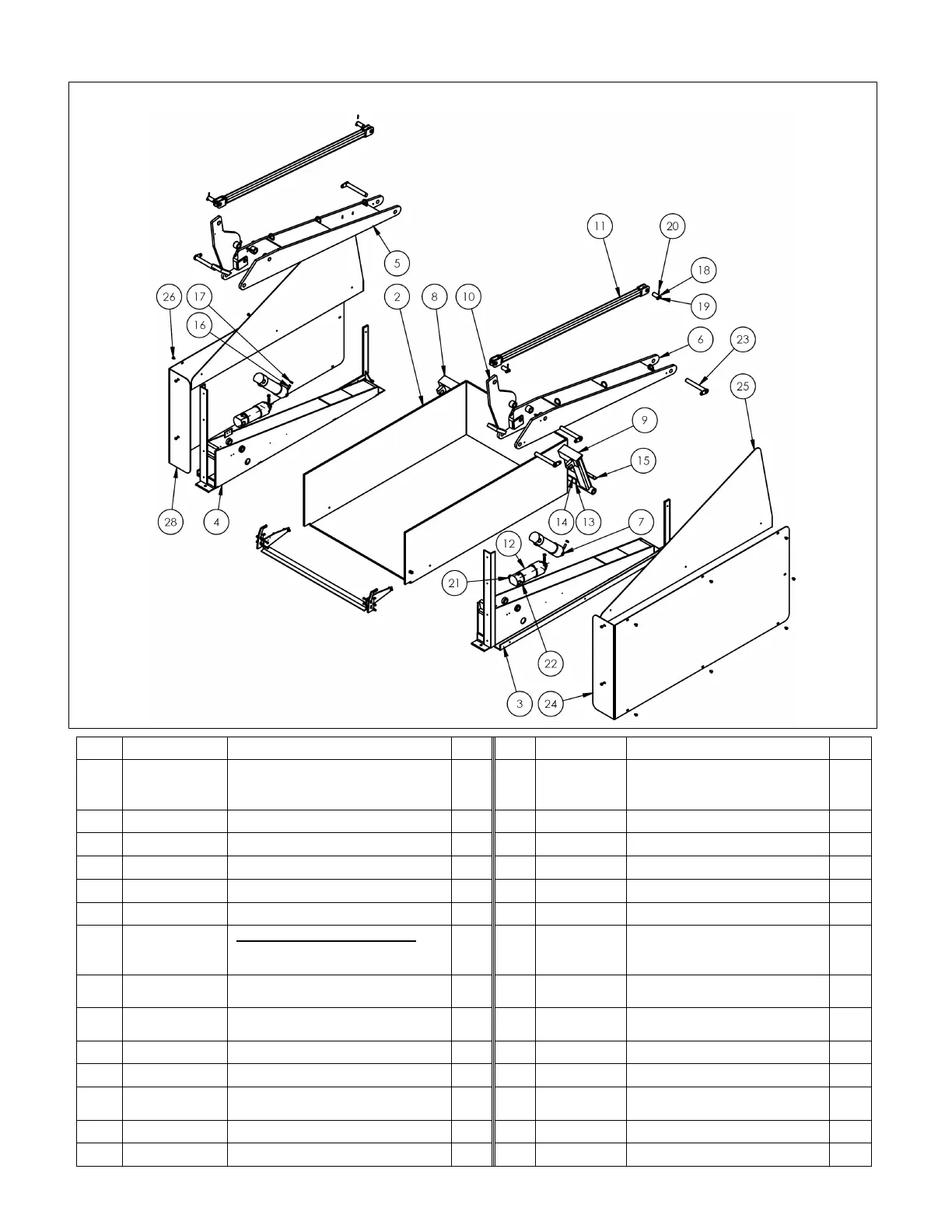

Exploded View and Bill of Materials: ZLTT-5272-2-48 & ZLTT-5272-4-48
Item
Part no. Description Qty.
Item
Part no. Description Qty.
*1
04-514-048
04-514-048-001
Weldment, frame:
ZLTT-5272-2-48
ZLTT-5272-4-48
1 15 04-016-026 Bracket, plastic guard mt. 1
2 04-513-012 Weldment, deck w/ toeguard 1 16 01-118-001 Bolt, cylinder retaining 4
3 04-514-093 Weldment, frame, left 1 17 36209
1
/
2
”–13 hex jamb nut 4
4 04-514-092 Weldment, frame, right 1 18 01-112-008 Pin, scissor pivot 4
5 04-510-103 Weldment, leg assembly, right 1 19 01-020-003 Boss, stop pin mt. 4
6 04-510-104 Weldment, leg assembly, left 1 20 64135 Pin, roll,
3
/
16
”x1
1
/
4
” 4
7
99-021-906-001
99-021-901-001
Cylinder, hydraulic, ram style
ZLTT-5272-2-48: 2
1
/
2
”x10”
ZLTT-5272-4-48: 3” x 10”
2 21 15-112-002 Pin, cylinder bracket 2
8 04-512-003
Weldment, hinge assy. w/ upper
link arm, right
1 22 68021
External retaining ring,
phosphate finish, 1
1
/
8
”
4
9 04-512-004
Weldment, hinge assy. w/ upper
link arm, left
1 23 04-612-006 Assembly, pin, retaining 6
10 04-514-024 Weldment, frame, pivot arm, tilt 2 24 04-024-028 Guard, lower, left 1
11 04-514-028 Weldment, frame, linkage arm 2 25 04-024-029 Guard, upper 2
12
99-021-907-003
Cylinder, hydraulic, 3”x7” ram
style, machined end
2 26 32415
5
/
16
”–18x
1
/
2
” HWH thread-
cutting screw, type F, zinc
18
13 04-014-018 Frame, round 1 *27 04-024-019 Guard/cover, PVC 1
14 04-014-009 Frame, angle, back 1 28 04-024-014 Guard, lower, right 1
*Balloons not
included for items
1 and 27.
