Rev. 1/23/2018 WTJ-2, MANUAL
Copyright 2018 Vestil Manufacturing Corp. Page 2 of 12
Specifications:

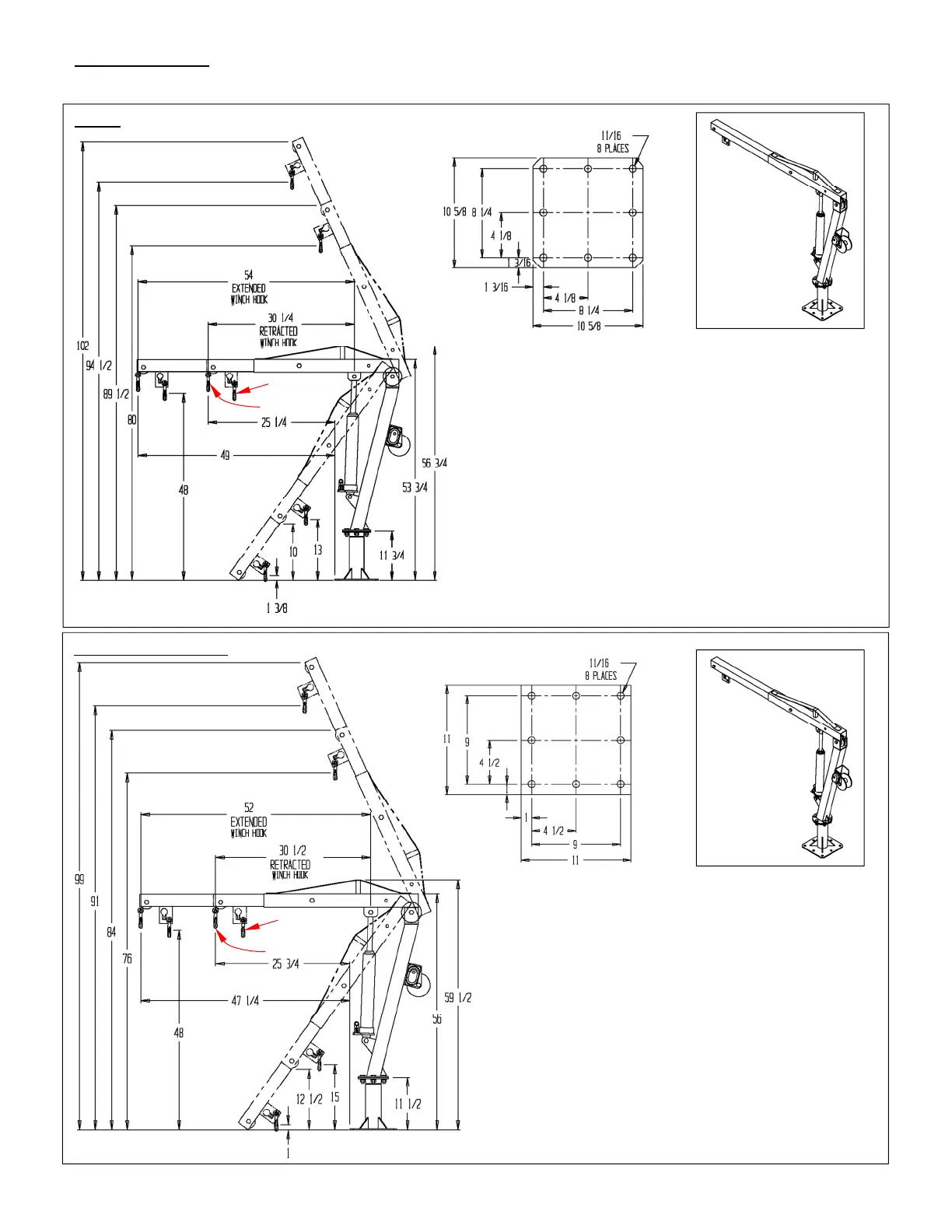

Crane dimensions, capacity, and net weight appear in the diagram and table below. All figures are subject to change
without notice.
WTJ-2
WTJ-2-G & WTJ-2-SS
Mounting plate dimensions
Fixed hook
Winch hook
Fixed hook capacities:
Boom extended (“long”) = 500 lb. (227.3kg)
Boom retracted (“short”) = 1,000 lb. (454.5kg)
Winch & winch hook capacity = 500 lb. (227.3kg)
Winch hook heights:
Cylinder extended & boom extended = 102” (259cm)
Cylinder extended & boom retracted = 89
1
/
2
” (227cm)
Cylinder retracted & boom extended = 0” (0cm)
Cylinder retracted & boom retracted = 10” (25cm)
Cable dimensions:
Overall length = 14
1
/
2
ft. (4.4m)
Usable length = 9 ft. (2.7m)
Usable reach:
Boom horizontal & extended = 54” (137cm))
Boom horizontal & retracted = 30
1
/
4
” (77cm)
NNet weight of crane = 135 lb. (61.4kg)
3D model
shown for
reference
Fixed hook capacities:
Boom extended (“long”) = 500 lb. (227.3kg)
Boom retracted (“short”) = 1,000 lb. (454.5kg)
Winch & winch hook capacity = 500 lb. (227.3kg)
Winch hook heights:
Cylinder extended & boom extended = 99” (39cm)
Cylinder extended & boom retracted = 84” (33cm)
Cylinder retracted & boom extended = 0” (0cm)
Cylinder retracted & boom retracted = 12
1
/
2
” (32cm)
Cable dimensions:
Overall length = 32 ft. (9.8m)
Usable length = 24 ft. (7.3m)
Usable reach:
Boom horizontal & fully extended = 52” (132cm)
Boom horizontal & fully retracted = 30
1
/
2
” (78cm)
Net weight of crane = 134 lb. (61kg)
Mounting plate dimensions
Fixed hook
Winch hook
