Table of Contents Rev. 4/12/2024 WP, MANUAL
Table of Contents Copyright 2023 Vestil Manufacturing Co. Page 14 of 17
EMERGENCY STOP SWITCH INSTALLATION
The following instructions apply ONLY to LP or gasoline powered fork trucks. If the truck designated for use with
work platforms is powered either by battery or diesel fuel, contact the truck manufacturer for installation directions.
INSTALLING THE SWITCH
1) Attach the fork truck junction box (5) to the fork
lift. For instance, attach it to the operator roll cage
as shown in FIGS. 8 & 9. Fasten the junction box
(5) to the lift truck with 4 bolts, 4 flat washers, and 4
lock nuts.
2) Disconnect the wire from the ignition coil (key
switch) of the lift truck. Attach the wire to 1 of the
receptacle terminals inside the fork truck junction box
(5).
3) Connect the appropriate wire from the (ignition)
key switch to the other receptacle terminal inside the
junction box (5).
4) Mount the work platform junction box (6) to the
mast guard. Position the junction box as shown in
Fig. 10. Fasten the WPJB to the inside surface of the
mast guard. Fastener order is shown in Fig. 11.
USING THE SWITCH
To use the switch, mount the platform on the forks of your lift truck. Apply all tine locks and safety straps. Attach the
(male) plug of the pigtail cord to the socket of the FTJB. Pull the E-stop button out/up. The switch is now ready to use.
Press the button to immediately cut forklift power.
If your platform is equipped with an E-switch but you need to operate the forklift without the platform: 1) Disconnect
the pigtail cord from the FTJB socket; and 2) Plug the FTJB jumper cord into the socket Connecting the jumper cord to
the socket closes the ignition circuit.
Item
Description
Quantity
1
¼ in. - 20 x 1in.
8
2
¼ in. - 20 lock nut
8
3
¼ in. flat washer
8
4
¼ in. fender washer
4
5
Fork truck junction box (FTJB)
1
6
Work platform junction box
(WPJB)
1
Jumper plug
6
Coil
cord
Jumper cord
Coil
cord
E-stop
button
Pigtail
cord
Jumper
cord
#6 Work
platform junction
box (WPJB)
E-stop button
Fork
truck
battery
Ignition coil terminal & key switch
of lift truck. Disconnect from
battery and connect to FTJB
#5 Fork truck junction box (FTJB)
Connect
to key
switch
Connect to positive side of
ignition coil
Mount
WPJB
here
1
Mast
Guard
4
3
2
Inner surface (of
mast guard)
Outside
surface

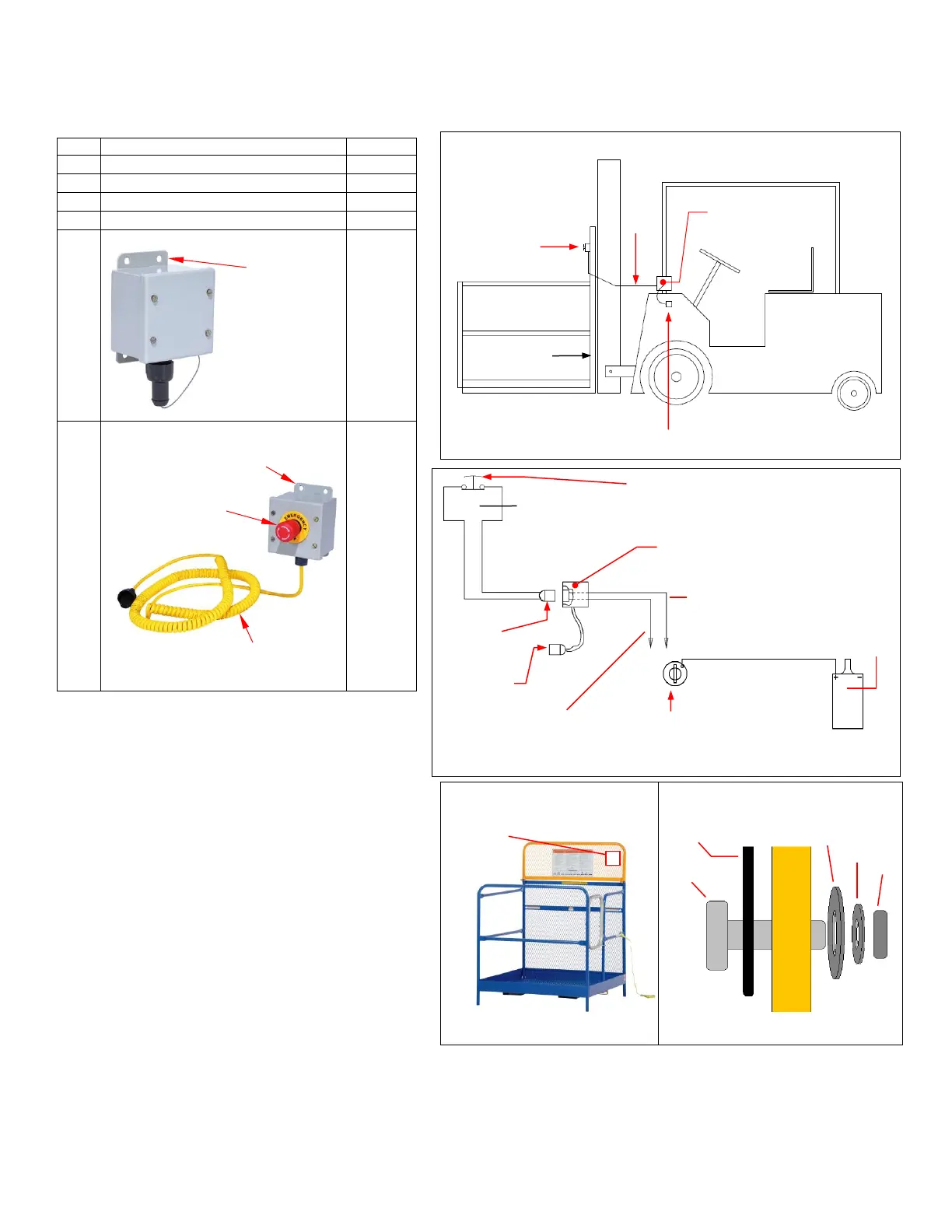

FIG. 10: Mounting WPJB
FIG. 9: E-Switch
electrical system
diagram
FIG. 8: FTJB and
WPJB mounting
diagram
Mast guard
Mounting plate
with bolt holes
WPJB
mounting plate
FIG. 11: Fastener order
Mounting
plate with
bolt holes
5
