Table of Contents Rev. 4/12/2024 WP, MANUAL
Table of Contents Copyright 2023 Vestil Manufacturing Co. Page 8 of 17
*Model
A: Vertical center
of gravity in inches
(~cm)
B: Horizontal
center of gravity
in inches (~cm)
Model
A: Vertical center
of gravity in
inches (~cm)
B: Horizontal
center of gravity in
inches (~cm)
WP-3636
15.9 (40.4cm)
15.0 (38.1cm)
WP-3636-DD
18.1 (46.0cm)
13.7 (34.8cm)
WP-3648
15.4 (39.1cm)
20.6 (52.3cm)
WP-3648-DD
18.8 (47.8cm)
17.0 (43.2cm)
WP-4848
14.5 (36.8cm)
20.6 (52.3cm)
WP-4848-DD
16.8 (42.7cm)
18.5 (47.0cm)
WP-4848-FF
14.5 (36.8cm)
20.6 (52.3cm)
WP-4848-DD-FF
16.8 (42.7cm)
18.5 (47.0cm)
WP-3636-84B
19.9 (50.5cm)
14.1 (35.8cm)
WP-3636-84B-DD
23.4 (59.4cm)
12.5 (31.8cm)
WP-3648-84B
18.9 (48.0cm)
19.5 (49.3cm)
WP-3648-84B-DD
21.9 (55.6cm)
17.3 (43.9cm)
WP-4848-84B
18.0 (45.7cm)
19.5 (49.3cm)
WP-4848-84B-DD
21.9 (55.6cm)
17.0 (43.2cm)
SP-175
11.4 (29.0cm)
16.8 (42.5cm)
WP-3737-FD
16.5 (41.9cm)
18.0 (45.7cm)
*MODELS NOT INCLUDED IN THE TABLE: Center of gravity figures are provided in your SPECIFICATIONS
document. See SPECIFICATIONS on p. 3.
WP-series
center of gravity
(C.O.G.)
Mast
guard
WARNING
If the mast guard is
improperly fastened, it cannot
adequately protect platform
occupants. Therefore, make
sure that hinge bolts and nuts
(circled in the drawings) are
tightened to 35lb∙ft of torque.
Retighten the connection to
35 lb∙ft whenever:
1. The work platform is taken
out of storage:
Raise the upper portion
of the mast guard, and then
Tighten the bolts and
nuts.
2. The mast guard is bumped
or deflected from vertical.
Immediately lower the
platform to the ground;
then
Straighten the mast
guard (return it to the
vertical orientation) and
retighten the bolts and
nuts.
Connection between top and
bottom portions of mast guard.
Upper mast
guard
Lanyard attachment points
Vertical center of gravity (A)
calculated from bottom of
platform floor

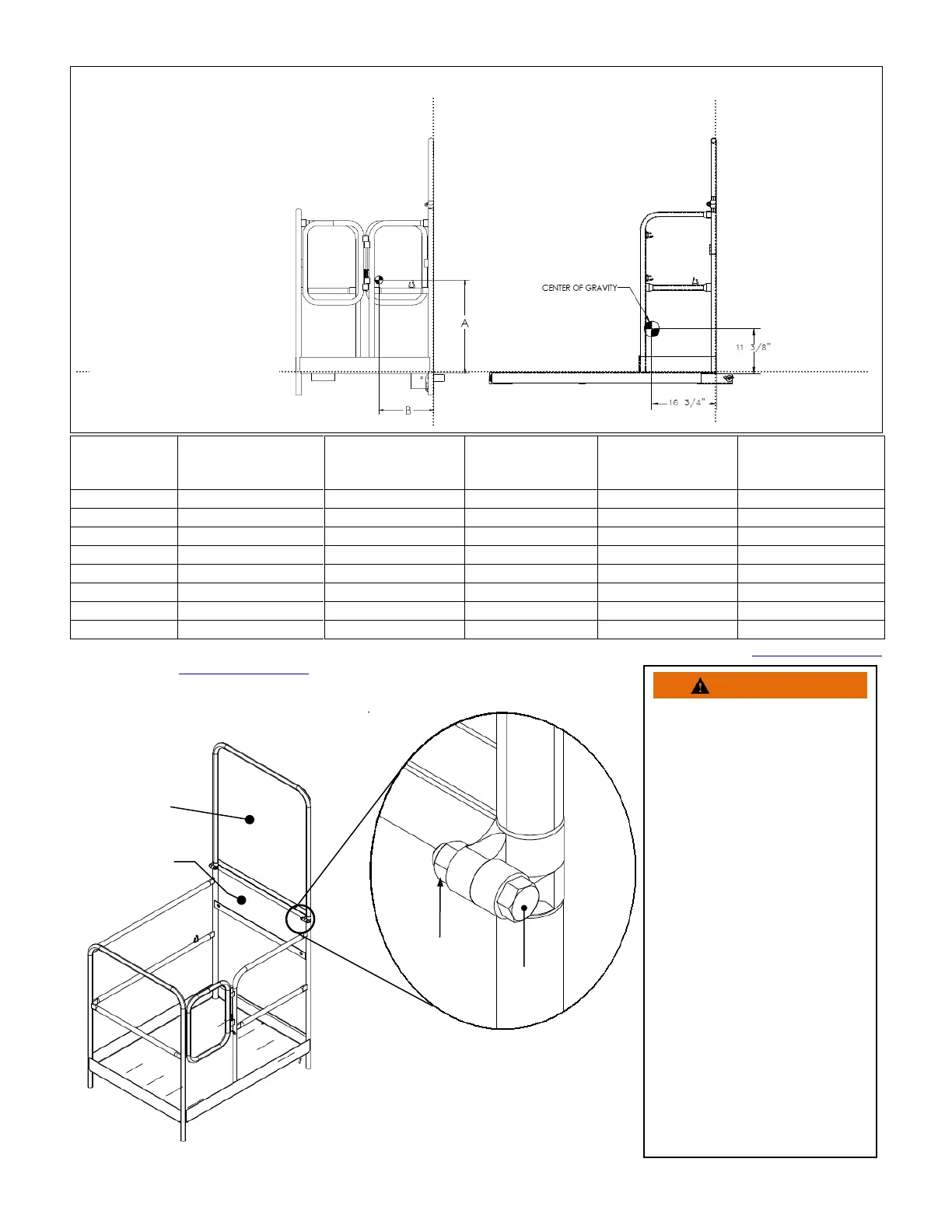

FIG. 3: Center of Gravity
Diagram
Horizontal center of gravity
(B) measured from back of
mast guard
Lower mast
guard
FIG. 4: Mast Guard Hinge
Hex nut
Bolt
Horizontal center of gravity
(B) measured from back of
mast guard
