Operator’s Manual Rev. 6/11/25 WL-100 MANUAL 06-25.DOCX
Table of Contents Copyright 2023, Vestil Manufacturing Corp. Page 21 of 30
14. Remove electrical power from the Lift.
15. Remove the jumper wire between terminal #3 and terminal #4.
16. Connect the customer-supplied wires from the enclosure terminal block to the junction box on the frame. Five
18AWG wires are required (four signals, one ground). Connect the wires as shown in the wiring diagram. Be
careful to not confuse the two black wires in the junction box – they are not interchangeable!
17. Close and secure the electrical enclosure door. Place the cover back on the power unit. Re-apply electrical
power to the Lift.
18. Verify that the toe guard strips move freely. Verify that the electrical switch in the middle of each strip is not
actuated.

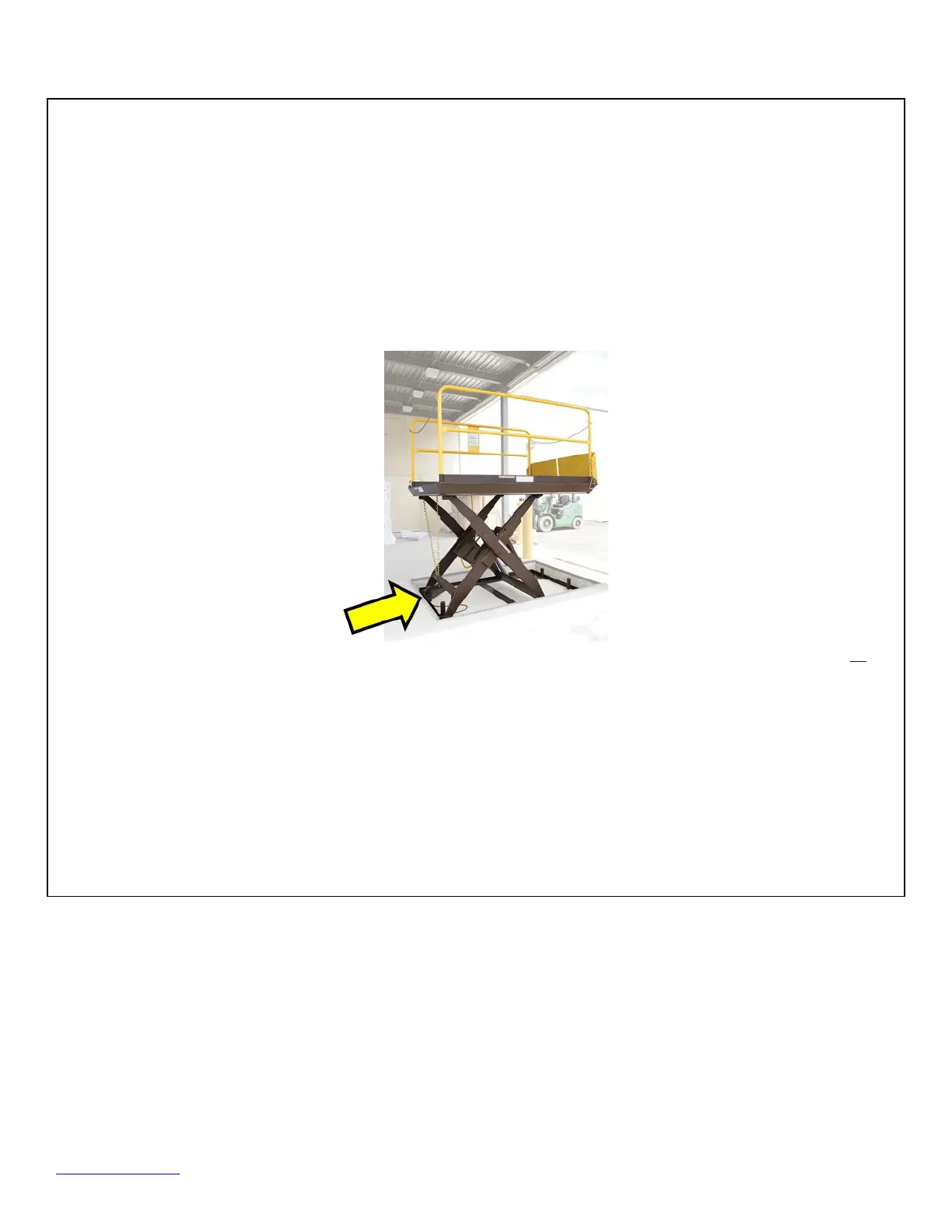

19. Raise the platform to a 60-inch height, as measured from the bottom of the frame. Adjust the upper limit switch
arm (mounted on the non-bridge end of the frame, below) so that it switches at this platform height.
20. Bleed the hydraulic cylinders. Follow the procedure in the INSPECTION AND MAINTENANCE section, page 25.
21. Flip or remove the maintenance props out from the rails. Fully lower the platform using the pendant control.
Continue holding the DOWN pushbutton for several seconds after the platform reaches bottom. This allows any
air trapped in the hoses to leave the system via the reservoir.
22. While lowered, check the platform for the proper lowered height. For pit installations, make sure the platform is
flush with the ground surface. Remedy any trip hazards caused by a floor level change of ¼” (6 mm) or more.
23. Raise the Lift. Flip or lower the maintenance props back into the legs. Lower the Lift until the leg set rests against
the props.
24. Anchor the frame to the floor through the four mounting holes at the corners of the frame.
25. Shim and/or grout to ensure the entire length of both base side frames are level and fully supported. The entire
length of base frame rail must be fully supported with no gaps in its foundation for the Lift to function properly.
