Table of Contents Rev. 12/10/2019 VHSR, MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Corp. Page 3 of 6

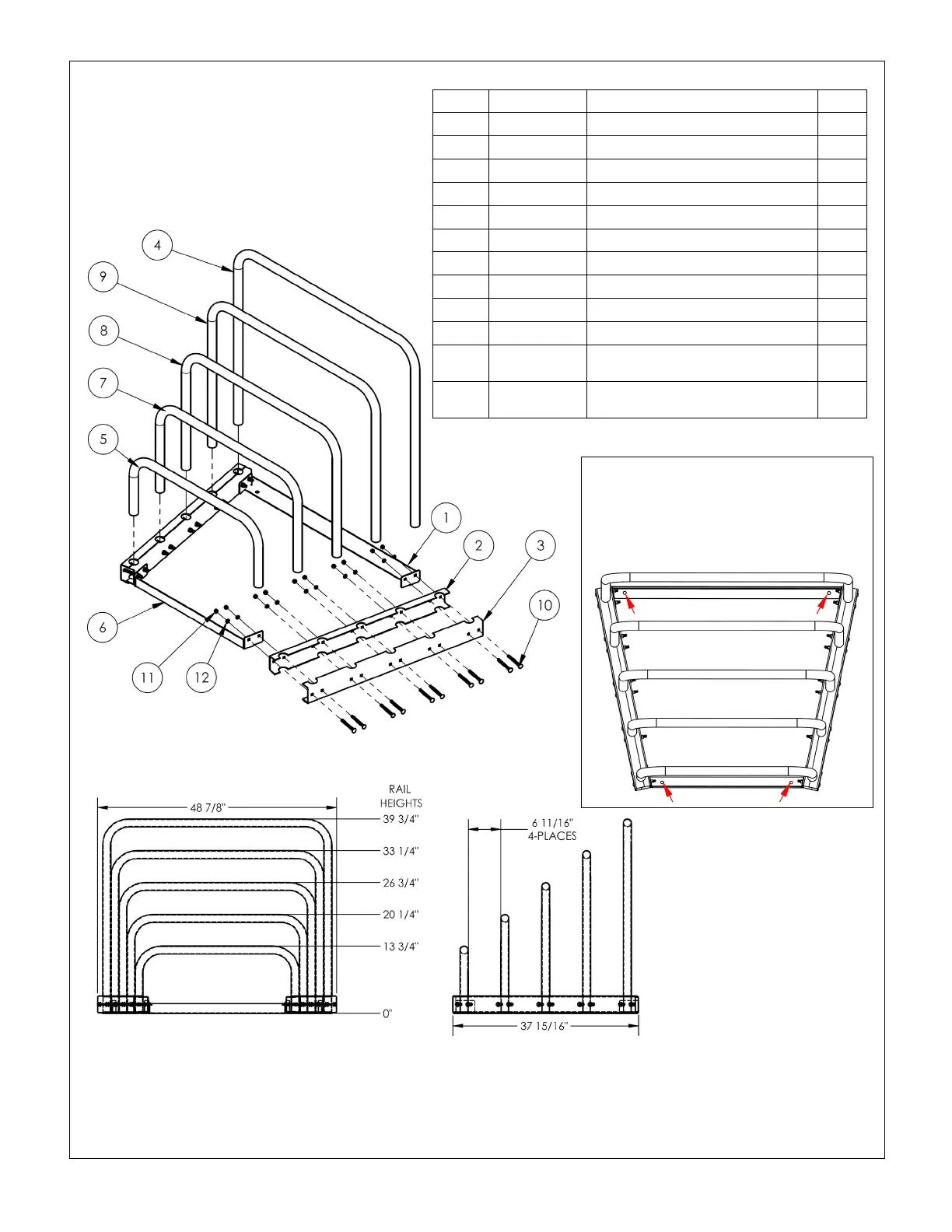

FIG. 1A: VHSR-4BA-KD exploded view and bill of materials
ITEM
PART NO.
DESCRIPTION
QTY
1
31-014-448 Frame, back connector, formed 1
2
31-014-449 Frame, inner side, formed 2
3
31-014-450
Frame, outer side, formed
2
4
31-014-008
Frame, round divider, formed
1
5
31-014-452
Frame, round divider, formed
1
6
31-014-451
Frame, front connector, formed
1
7
31-014-453
Frame, round divider, formed
1
8
31-014-454
Frame, round divider, formed
1
9
31-014-455 Frame, round divider, formed 1
10
21369 Carriage bolt,
3
/
8
”-16 x 4” 20
11
36106
Hex nut, gr. A, zinc plated,
3
/
8
”-
16
20
12
33622
Split lock washer, carbon steel,
medium zinc finish,
3
/
8
”
20
Anchor bolt kit AS-124-4PK consists of four (4)
1
/
2
”-14 x 4”
anchor bolts for concrete.
Maximum capacity per bay = 1,500 lb. (681kg)
Overall width = 48
7
/
8
” (124cm)
Overall length = 37
15
/
16
” (96.4cm)
Usable width between dividers = 6
11
/
16
” (17.0cm)
Overall height = 39
3
/
4
” (101cm)
Net weight = 121 lb. (55kg)
Two (2) anchor bolt holes (see red
arrows) are present in both the front
connector (item 6) and back connector
(item 1). Anchor the rack to the ground
with all 4 of the
1
/
2
”-14 x 4” anchor
bolts from kit AS-124-4PK.
FIG. 1B: VHSR-4BA-KD dimensions, net weight,
& capacity
