Table of Contents 2/19/2019 TT MANUAL
Table of Contents Copyright 2017 Vestil Manufacturing Corp. Page 8 of 13

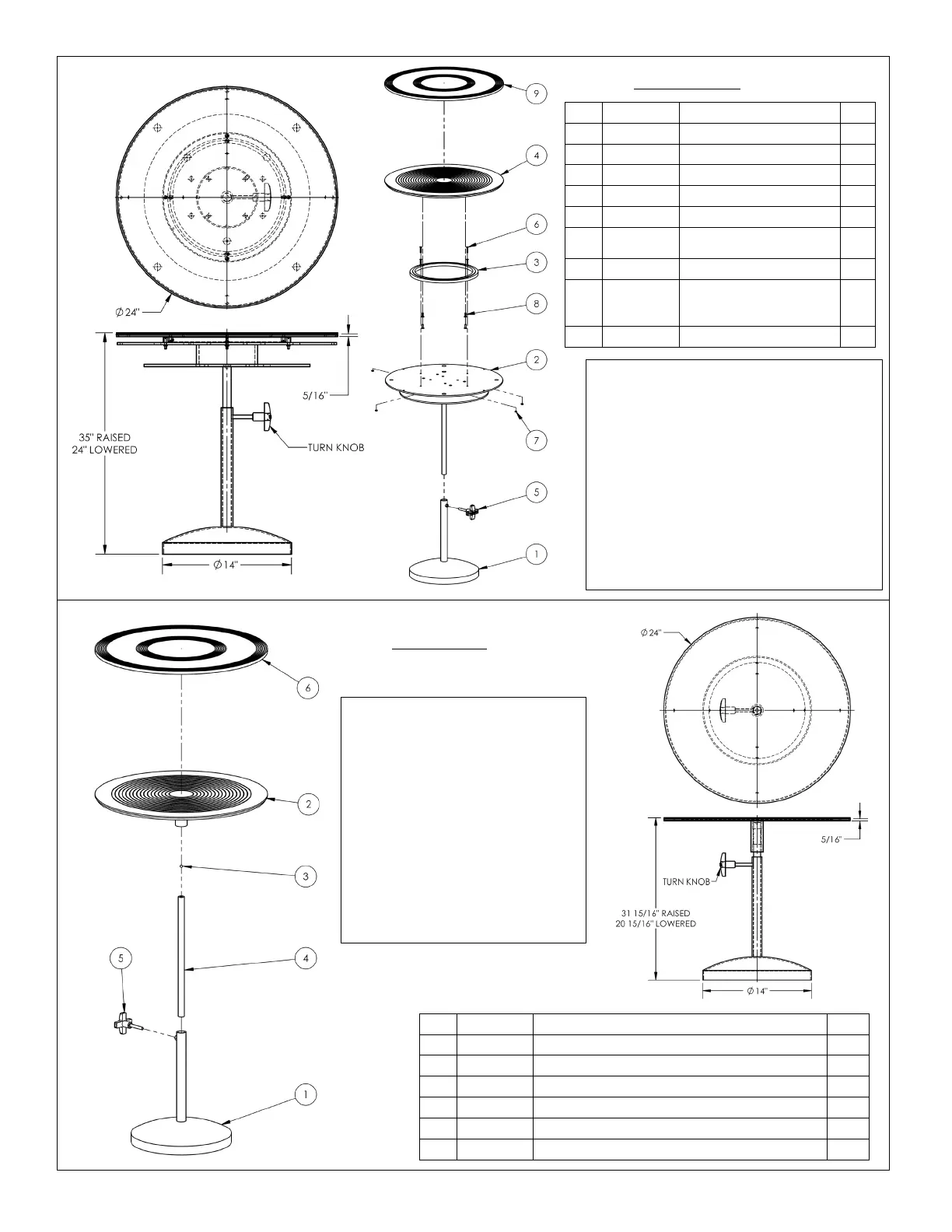

TT-N-24-DPED
Item
Part no.
Description
Qty.
1 20-514-010
Weldment, frame, base 1
2
20-513-060
Weldment, deck 1
3
20-001-135
13.78” carousel assembly
1
4 20-013-031
Turntable platform plate 1
5
99-025-002
Knob,
3
/
8
” x 2
3
/
8
1
6 24214
Flat head socket cap
screw, #10-32 x 1
1
/
4
4
7 37015 10-32 lock nut, zinc plated 4
8 39956
Flat socket cap screw,
class 10.9, black oxide
finish, M6-1.0x25mm
4
9
20-024-012
Guard, cover, mat
1
Item
Part no.
Description
Qty.
1 20-514-010
Weldment, frame, base 1
2
20-513-061
Weldment, deck 1
3 99-110-006
Bearing, ball,
3
/
8
1
4 20-014-028
Frame, inner shaft 1
5
99-025-002
Knob,
3
/
8
” x 2
3
/
8
1
6 20-024-012
Guard, cover, mat 1
TT-N-24-PED
Uniform capacity = 300 lb.
Turntable diameter = 24”
Lowered height = 24”
Raised height = 35”
Top plate thickness =
5
/
16
Net weight = 114.7 lb.
Rubber cover on top plate.
Manu
al height adjustment with knob
tensioner. To adjust tabletop height,
loosen knob and position tabletop at
desired level; then retighten knob.
Uniform capacity = 300 lb.
Turntable diameter = 24”
Lowered height = 20
15
/
16
Raised height = 31
15
/
16
Top plate thickness =
15
/
16
Net weight = 57.4 lb.
Rubber cover on top plate.
Manual height adjustment with
knob tensioner. To adjust
tabletop height, loosen knob,
position tabletop at desired
level; then retighten knob.
