USING THE CRANE
Before using the crane, perform a BEFORE & AFTER EACH USE inspection described on p. 10.
WARNING
Risk of serious personal injuries or death.
• Only use this crane if you are qualified and trained to use it. The operating instructions in this manual
supplement safe crane and hoist operation practices applied at your work site. Acquire a copy of the most
recent edition of ASME B30.17 and apply all operation, inspection, maintenance, and care
recommendations.
• ALWAYS apply the material handling practices learned from your training program.
• All personnel not participating in the use of the crane must stay out of the usage area while the crane
and hoist are used. Be certain no part of any person or object is under any part of the boom (I-beam) or
the suspended load at any time and particularly before lowering it. Instruct all persons in the vicinity of the
crane to remain at a safe distance from it and the load during crane/hoist operation.
• Always carefully watch the boom and any load hanging from it while using the crane.
• Always follow the hoist and trolley manufacturers’ instructions regarding proper use of their products.
• Only use this crane on level concrete surface.
• DO NOT use the crane and notify your supervisor and authorized maintenance personnel if: 1) you
observe any damage or hear unusual noise during operation; or 2) you observe any warping or
deformation of the I-beam, the upright, base frame, fastened connection points, especially anchorages,
the load hook or hoist chain/cable.
• DO NOT operate a hoist with a twisted, kinked, or damaged chain or rope. DO NOT operate a rope hoist
unless the rope is properly seated in its groove.
LOADING THE CRANE
Center the hoist above the center of
the load. The long axis of the I-beam
should align with the center of the load.
Proper positioning is illustrated in Diagrams
A & B.
Connect a load to the hoist according
to the instructions supplied with your hoist
as well as the lifting methods applied at
your work site; then raise the load only as
high as is necessary. Once the load is
properly centered above the work
location, lower the load until it is fully
supported by the ground or work surface
and disconnect the load from the hoist.
RECORD OF SATISFACTORY CONDITION (THE “RECORD”)
Thoroughly inspect the crane after installing and assembling it and before putting it into service. Record the
condition and appearance of each of the frame members (I-beam, posts, horizontal brace), and all fasteners
(anchor bolts, bolts, nuts, washers, etc.). Thoroughly photograph the crane from multiple angles. Include close
range photographs of the anchoring hardware, all labeling, and all fastened connections (I-beam to rear post;
posts to horizontal brace; I-Beam to horizontal brace, i.e. beam clamp connections). Add the photographs to the
RECORD. Collect all photographs and writings in a file. This file is a record of the crane in satisfactory condition.
Compare the results of all INSPECTIONS
to this RECORD to determine whether the crane is in satisfactory
condition.

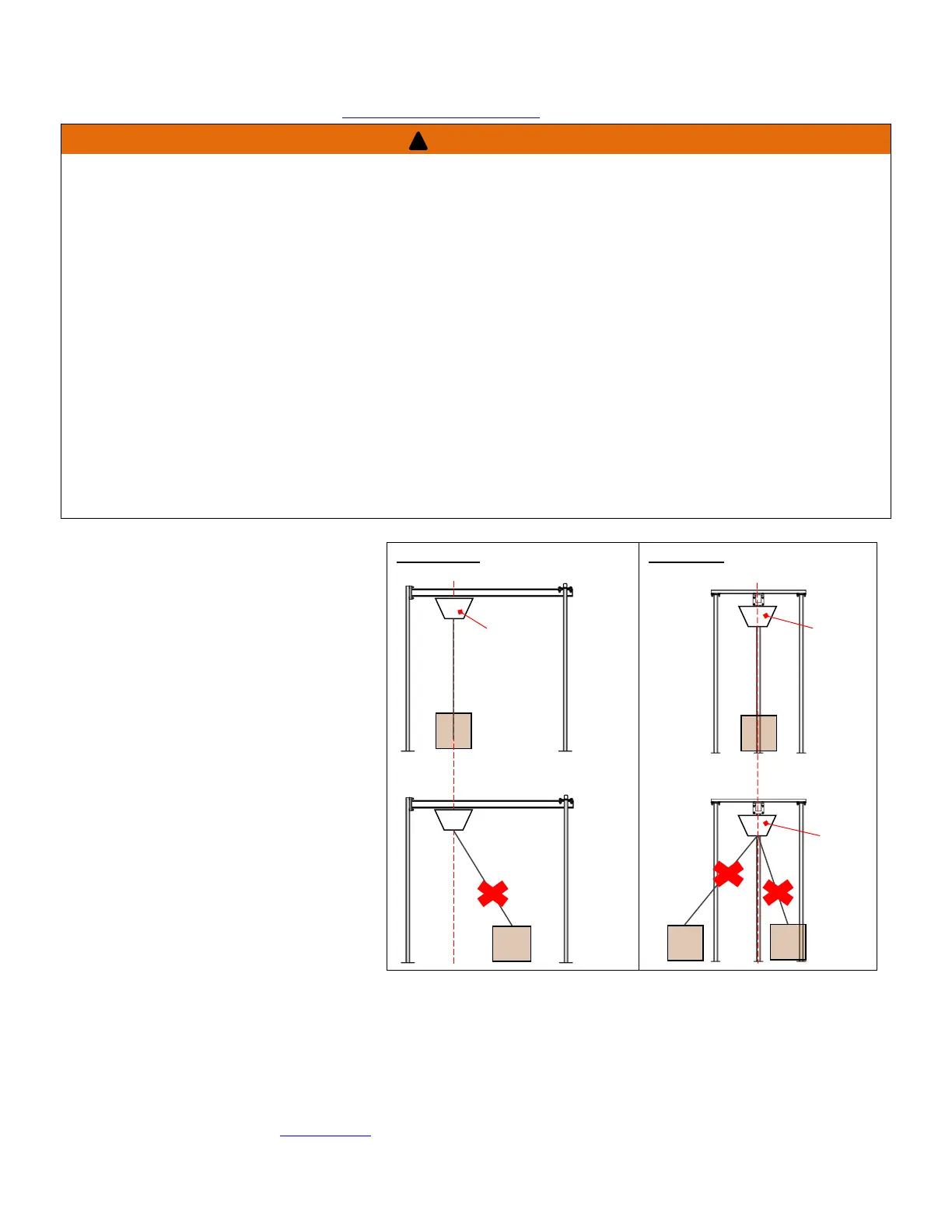

Diagram
A:
Center the hoist
above the load center.
Load properly centered beneath hoist
Improperly centered load
Hoist
Load
Load
!
Diagram B: Center the I-beam
above the center of the load.
Hoist
Improperly centered I-beam
Hoist
Load properly centered beneath hoist
I-beam
Load
Load
Load
