Table of Contents Rev. 11/1/2021 TJIB MANUAL
Table of Contents Copyright 2021 Vestil Manufacturing Corp. Page 8 of 12

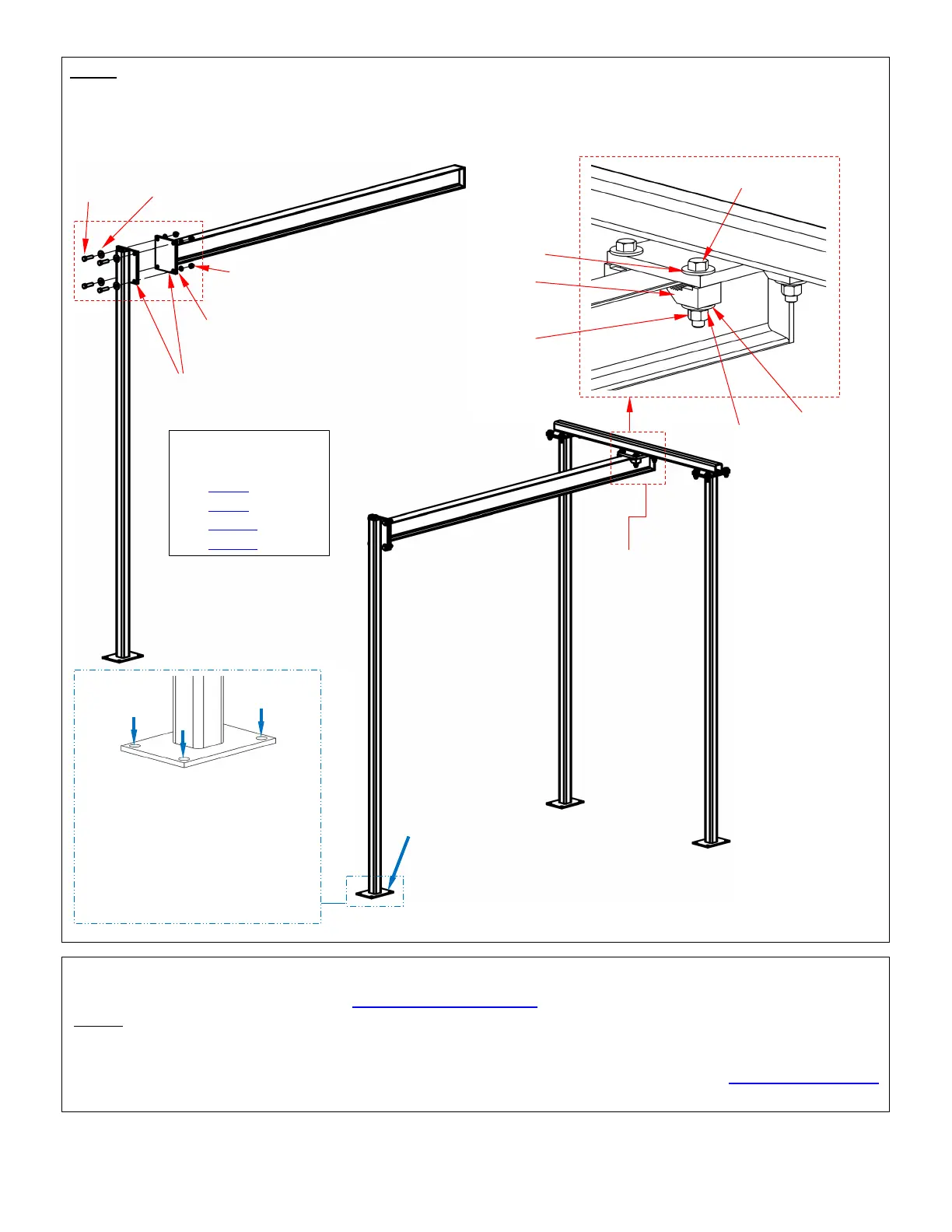

Step 2: A) Fasten the I-BEAM to the REAR POST with bolts (13211); flat washers (33012); lock washers (33626);
and hex nuts (36310). Tighten the connection to 50-52ft∙lb with a torque wrench. Move the Beam + POST
assembly into position so that the free end of the I-BEAM aligns with the BEAM BRACKET of the HORIZONTAL
BRACE. B) Fasten the end of the BEAM to the BEAM BRACKET as shown in the following diagrams. C) Anchor
the REAR POST to the floor
Hitch pin
UPRIGHT WELDMENT
CJIB-3 & CJIB-6: 28-514-068
CJIB-10 & CJIB-20: 28-514-071
Washer
(33012)
Hex nut
(36310)
Bolt
(13211)
Flat washer
(33012)
Hex nut
(36310)
Lock washer
(33626)
Bolt (13213)
Washer
(33012)
Lock
washer
(33626)
Anchor the post to the floor
with 4 anchor bolts and floor
anchors
. Use 1/2” anchor
bolts that are at least 4.5”
long. Your facility engineer
should select anchoring
hardware that is best suited
for the installation site.
Beam clamp
(28-145-002)
Tighten the
bolt-and-nut
connection
to 50-52ft∙lb
with a
torque
wrench
NATIONAL STANDARDS
This product is a fixed jib crane. ASME STANDARD B30.17 (the “Standard”) applies to jib cranes. You
should acquire a copy of the latest version of the S
tandard. Follow all use and maintenance/care
instructions provided in the Standard as well as all other provisions for jib crane owners and users. If any
content in this manual is inconsistent with any recommendations or mandatory provision(s) in the Standard,
apply the provision(s) from the Standard. Vestil requests that you immediately contact
TECHNICAL SERVICE
if you discover any inconsistencies.
Link to Applicable
Exploded View:
TJIB-3
TJIB-6
TJIB-10
TJIB-20
Floor
bracket
Beam
brackets
I-BEAM
REAR
POST
