Rev. 2/18/2015 TDT-50-HD, MANUAL.doc
Copyright 2015 Vestil Manufacturing Corp. Page 1 of 2
TDT-50-HD SERIES HEAVY DUTY MOLDED POLYURETHANE BINS (0.5YD
3
)
ASSEMBLY MANUAL

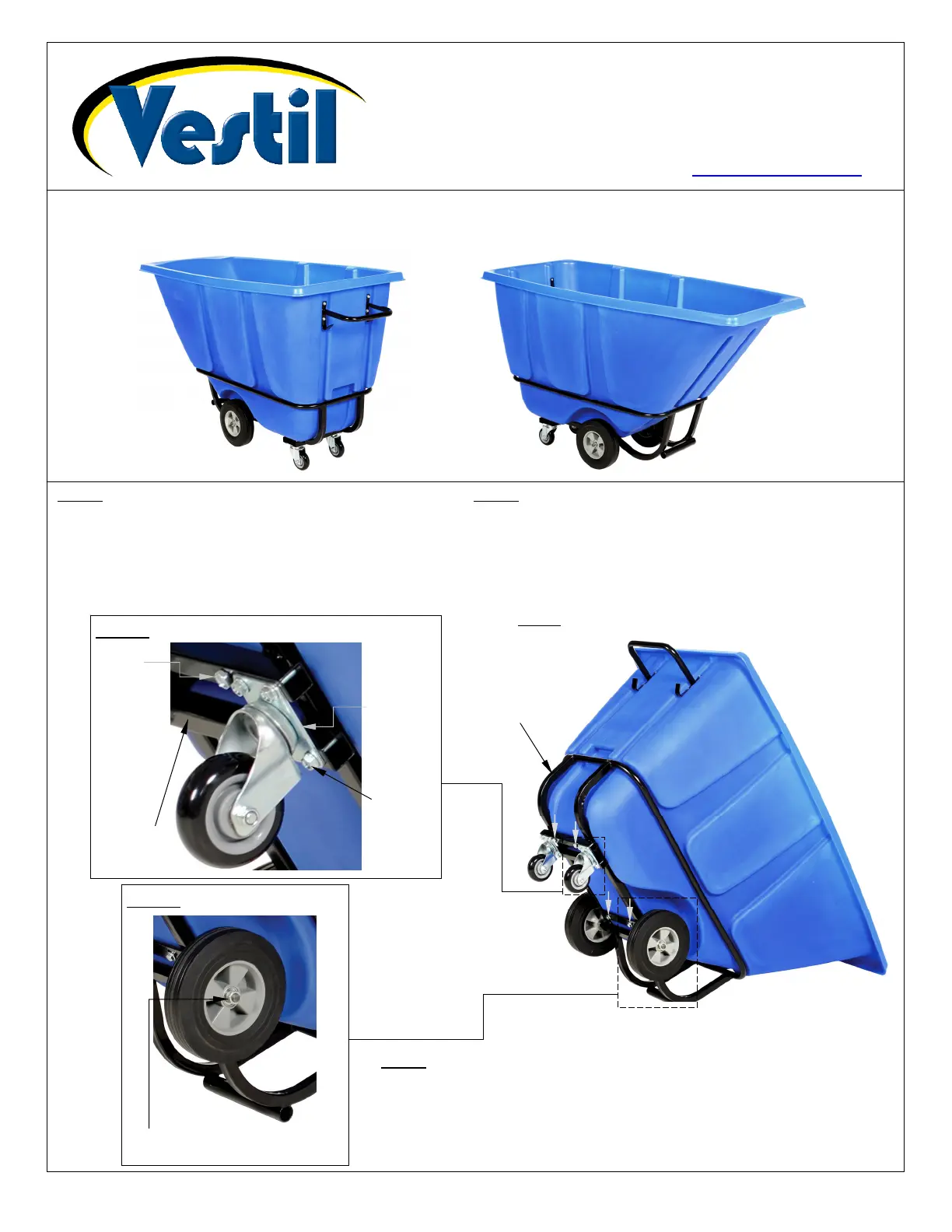

FIG. 1: Complete bin assembly
VESTIL MANUFACTURING CORP.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
www.vestilmfg.com e-mail: sales@vestil.com
FIG. 1A: Attach casters
Step 2: Fasten the carriage to the underside of the bin at
the four locations highlighted with light-colored arrows
below. To attach the carriage to the bin, use the 4 large hex
head screws provided with the product. Insert the screws
through slots in the cross rails of the undercarriage and into
the bin as shown in FIG. 1A.
Step 3: Slide a wheel onto each end of the axle. The threaded ends of
the axle should project from the wheel hubs. Secure each wheel to the
axle with hex nuts as shown in FIG. 1B.
FIG. 1B: Attach wheels to axle
Tighten hex nut against metal
hub to secure wheel on axle
Step 1: Fasten the casters (2) to the carriage. [NOTE:
Attach casters before attaching carriage to bottom of bin.]
Align the bolt holes in the mounting brackets of the
casters with the corresponding bolt holes in the cross
rails of the undercarriage; then install the (small) caster
bolts through the holes and secure them with hex nuts as
shown in FIG. 1
A
.
Carriage
Cross rail
of carriage
Hex
head
screw
Caster
bolt and
hex nut
Mounting
bracket
