SAFETY INSTRUCTIONS
Vestil strives to identify foreseeable hazards associated with the use of its products. No manual can
address every possible risk. Minimize your risk of injury by being mindful of the hazards identified below and by
inspecting and maintaining the product as instructed in INSPECTING & MAINTAINING THE RAMP on p. 5-6.
Risks of death or serious personal injuries.
Read and understand this entire manual before installing, assembling, using, or servicing this yard ramp.
Keep this manual in a location known to persons who use the ramp. Read the manual regularly to refresh
your understanding of proper use, inspection, and maintenance procedures.
DO NOT attempt to repair the ramp unless you are qualified to do so.
DO NOT modify the product in any way. Unauthorized modifications automatically void the LIMITED
WARRANTY on p. 12 and might make the ramp unsafe to use.
Inspect the ramp as directed in the INSPECTION & MAINTENANCE instructions on p. 5-6. Do not use the ramp
unless it is in satisfactory condition.
The net weight of any forklift, its operator, and load carried must not exceed the capacity of your ramp.
Capacity figures appear in your Specifications document. Also see label 1053 in LABELING DIAGRAM on p. 11.
Instruct personnel to remain a safe distance from the ramp while it is in use.
DO NOT go underneath the ramp while it is in use.
Verify the placement and legibility of all labels shown in the LABELING DIAGRAM on p. 11. DO NOT use the
ramp UNLESS all labels are present and easily readable. Contact the TECHNICAL SERVICE DEPT. to order
replacement labels. Contact information for TECHNICAL SERVICE DEPT. is provided on the cover page.
DO NOT ride on the ramp while it is moved.
DO NOT stand on the ramp while a vehicle backs up to it. Direct the driver of the vehicle from the side of
the ramp. Make sure that the driver can see you at all times. DO NOT approach the vehicle or ramp until the
vehicle is put into park. Then, adjust the position and height of the ramp to bring the lip of the ramp into solid
contact with the vehicle. See label 903 in LABELING DIAGRAM on p. 11.
DO NOT traverse the ramp, e.g. to unload a vehicle (or trailer) unless the front lip of the ramp and the bed
of the vehicle overlap each other by least 4 inches (~10.2 cm). See label 903 in LABELING DIAGRAM, p. 11.
Walk along the center of the ramp. Avoid walking close to the edges.
DO NOT move the ramp by pushing it from the side UNLESS your ramp is equipped with option YR-FS (forklift
pickup slots). Pushing the ramp from the side might damage the wheels and/or landing gear.

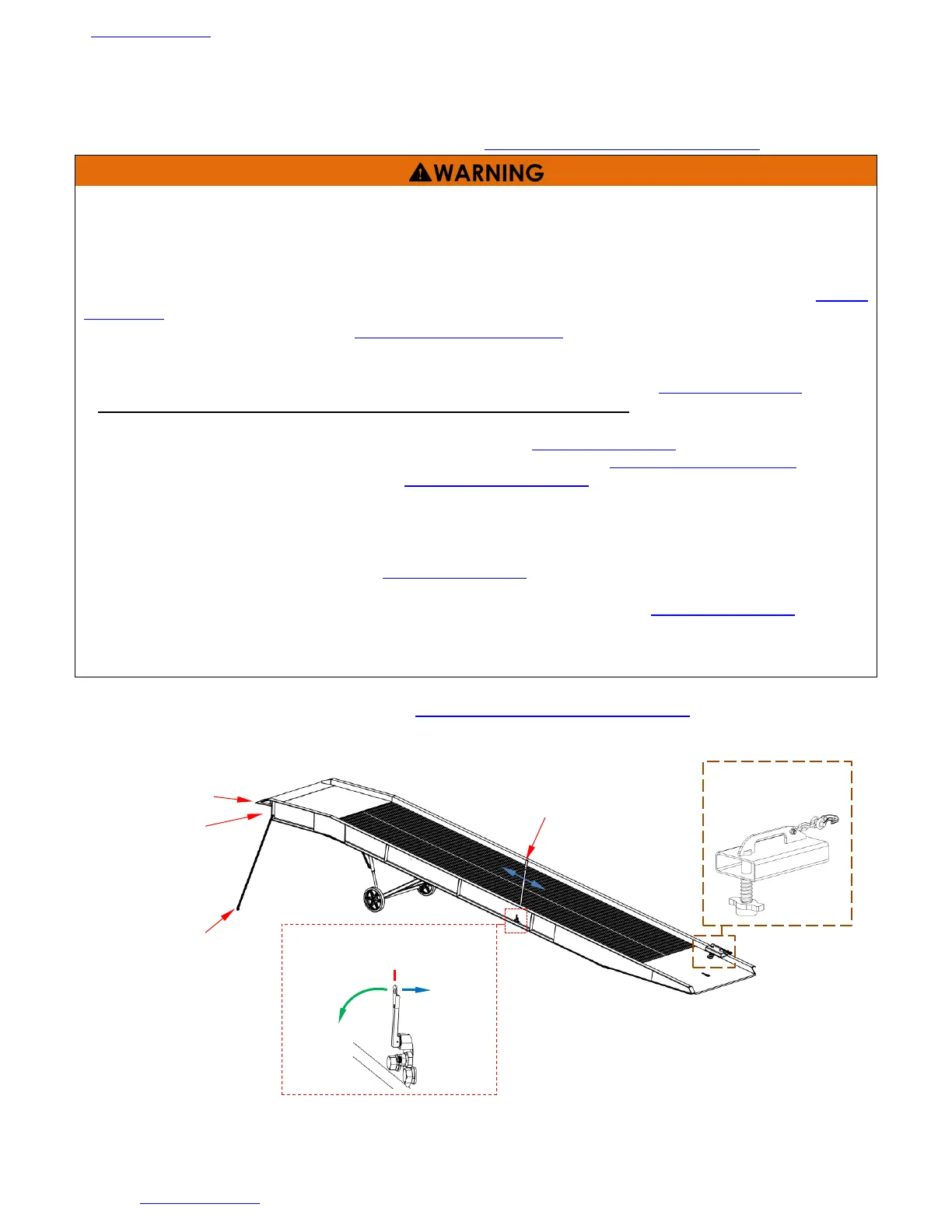

USING THE RAMP (watch the video at https://youtu.be/CnRwGywBUHI)
SY-series ramps have manual hydraulic systems for height adjustments. To adjust the height of your ramp,
apply the following steps. Refer to the following diagrams as well as the appropriate Exploded View (p. 7, 8, &
9) to identify ramp features.
1) Make sure the release valve is closed. It is closed when the release lever is in the “Home” position (vertical).
2) Measure the height of the vehicle/trailer bed. Move the pump handle back-and-forth until the lip of the
ramp is at least 2in. higher than the bed.
RELEASE LEVER
Fully
open
(rapidly
lower
ramp)
Partially
open
(slowly
lower
ramp)
Closed/Home position
Ramp
chain
Pump handle: move
back-and-forth to
elevate ramp.
Ramp lip
Fork pocket with
safety chain and
hook
Rubber
bumpers
(under
ramp lip)
