Rev. 3/26/2014 SCTAB, manual.doc
Copyright 2014 Vestil Manufacturing Co.
Page 8 of 14
FIG. 5B: Close-up of item no. 11

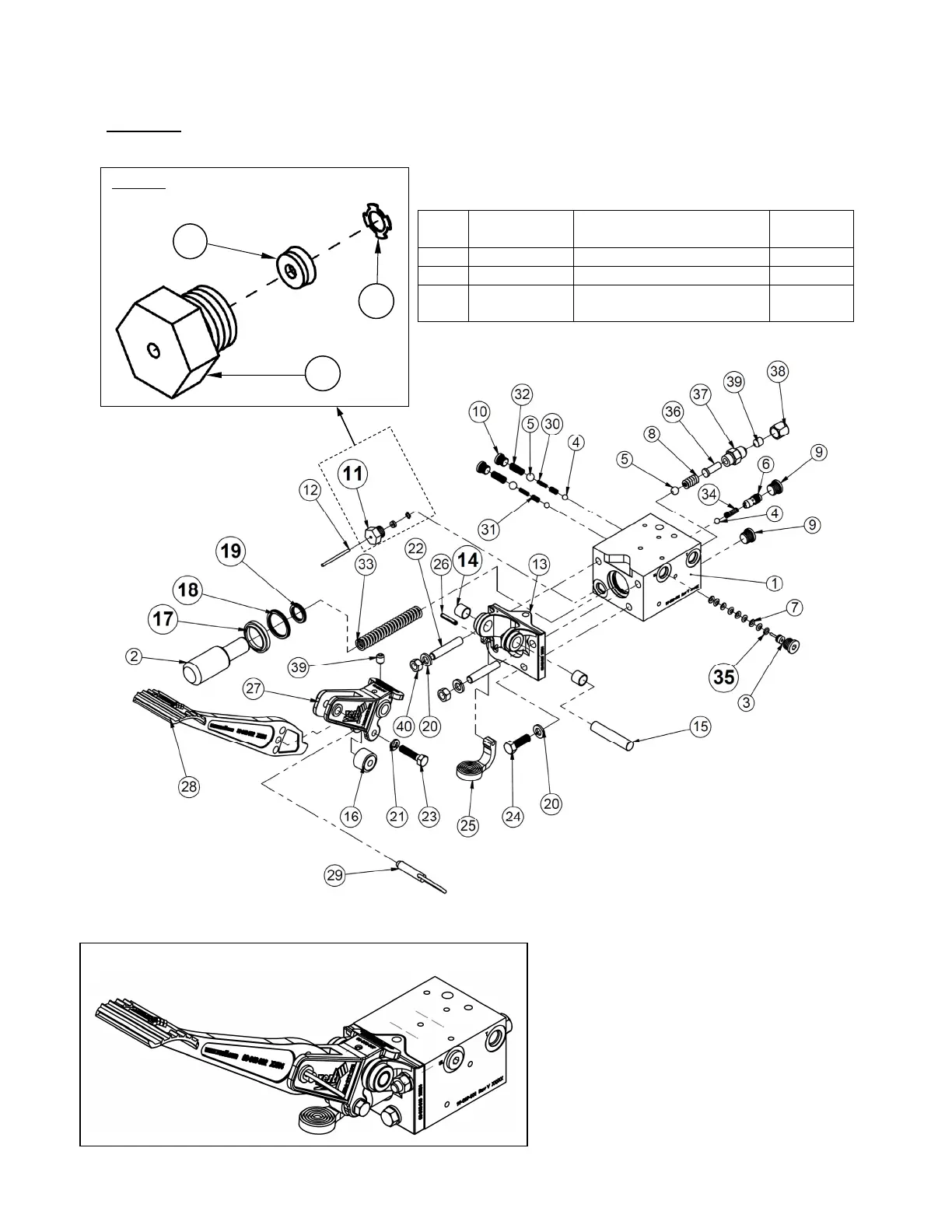

FIG. 5A: Auto-shifter 2-Speed Foot Pump Exploded Parts Breakdown
[
NOTE: Bill of Materials on followin
g
p
a
g
e
]
11a
11b
11c
Item
no.
Part no. Description Quantity
11a 99-031-022 Release pin packing nut 1
11b P12500125 Release valve seal 1
11c 11484-00225
Star washer (seal
retainer)
1
Fully assembled Auto-shifter foot pump
Ports in pump body (“1” in diagram):
The auto-shifter foot pump has four
possible circuit connections.
2 pressure ports: marked “P” and
“FC/P”;
2 intake/return ports: marked “T” - one
is located on the rear and the other is
located on the right side.
Including 2 pressure ports and 2
intake/return ports allows the circuit
configuration to be adapted to varied
applications. The unused pressure and
intake/return ports are each plugged with
an SAE #6 port plug.
