Table of Contents Rev. 6/14/2024 SBM MANUAL
Table of Contents Copyright 2017 Vestil Manufacturing Co. Page 4 of 15

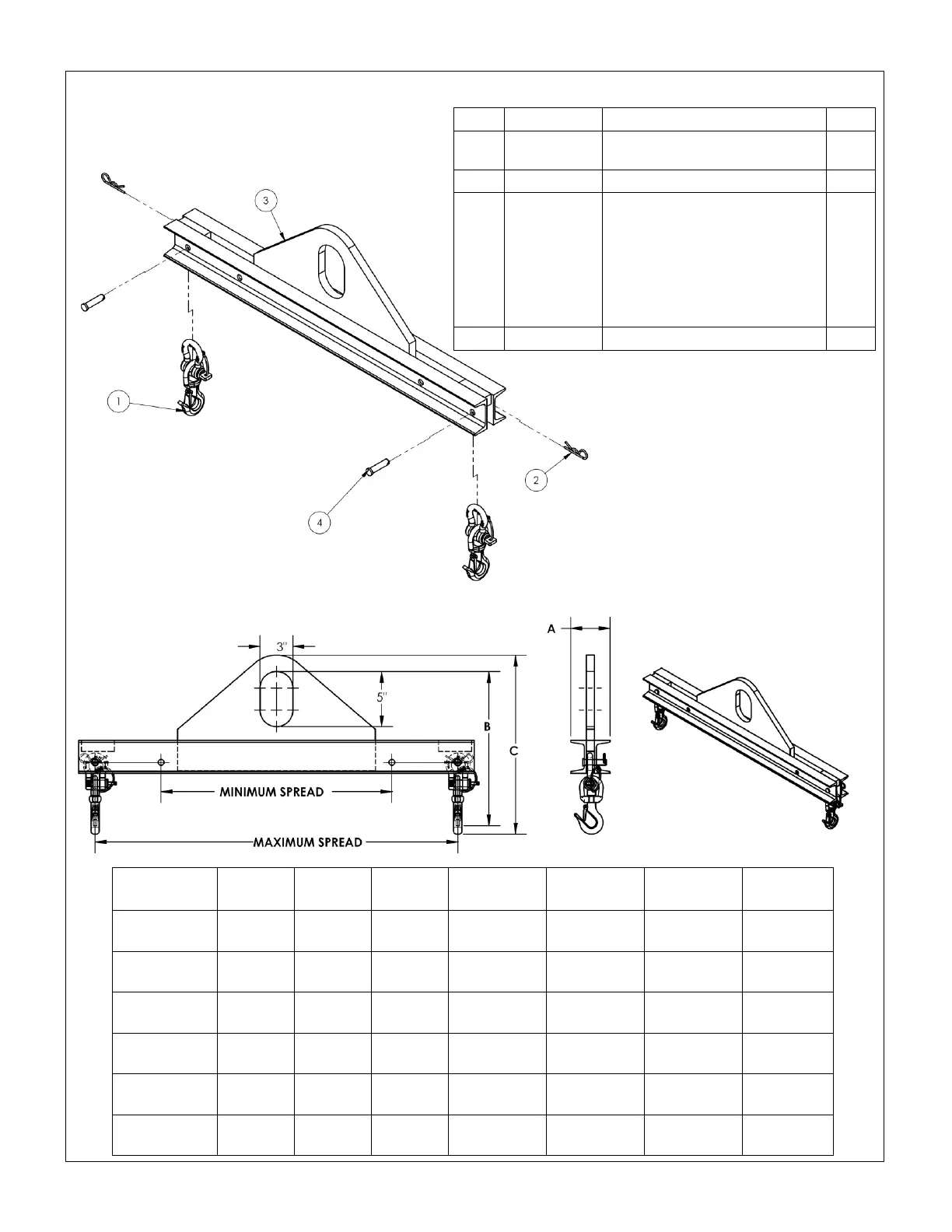

EXPLODED VIEW & BILL OF MATERIALS: SBM-20 SERIES ECONOMY BEAMS
08-006-169
Model
A
B
C
Minimum
spread
Maximum
spread
Capacity
Net weight
SBM-20-3
3
9
/
16
”
9.0cm
14”
35.6 cm
16
1
/
4
”
41.3 cm
21”
53.3 cm
33”
83.8 cm
2,000 lb.
909.1 kg
56 lb.
25.5 kg
SBM-20-4
3
9
/
16
”
9.0cm
14”
35.6 cm
16
1
/
4
”
41.3 cm
33”
83.8 cm
45”
114.3 cm
2,000 lb.
909.1 kg
64 lb.
29.1 kg
SBM-20-6
3
15
/
16
”
10.0cm
14”
35.6 cm
16
1
/
4
”
41.3 cm
45”
114.3 cm
69”
175.3 cm
2,000 lb.
909.1 kg
97 lb.
44.1 kg
SBM-20-8
3
15
/
16
”
10.0cm
14”
35.6 cm
16
1
/
4
”
41.3 cm
69”
175.3 cm
93”
236.2 cm
2,000 lb.
909.1 kg
118 lb.
53.6 kg
SBM-20-10
4
1
/
4
”
10.8cm
15”
38.1 cm
17
1
/
4
”
43.8 cm
93”
236.2 cm
117”
297.2 cm
2,000 lb.
909.1 kg
170 lb.
77.3 kg
SBM-20-12
4
1
/
4
”
10.8cm
15”
38.1 cm
17
1
/
4
”
43.8 cm
117”
297.2 cm
141”
358.1 cm
2,000 lb.
909.1 kg
197 lb.
89.5 kg
Item
Part no.
Description
Qty.
1
08-645-004
Subassembly, hook with
shackle, 0.5 ton
2
2
45286
#11 hitch pin clip,
1
/
8
”x2
5
/
8
”
2
3
08-514-143
08-514-146
08-514-151
08-514-155
08-514-159
08-514-163
Weldment, spreader beam
SBM-20-3
SBM-20-4
SBM-20-6
SBM-20-8
SBM-20-10
SBM-20-12
1
1
1
1
1
1
4
28-112-040
Clevis pin,
1
/
2
”x2”
2
SPECIFICATIONS
08-007-169
