S3, Manual.doc
Copyright 2019 Vestil Manufacturing Corp.
Page 5 of 16
EMERGENCY STOP (“E-STOP”) BUTTON:
Press the E-stop button to
immediately interrupt all powered
functions. Use the E-stop during
operation if the travel or fork (raise
and lower) functions do not respond
normally to operator commands.
Use the E-stop as s
ervice brake to secure the S3
when parked.

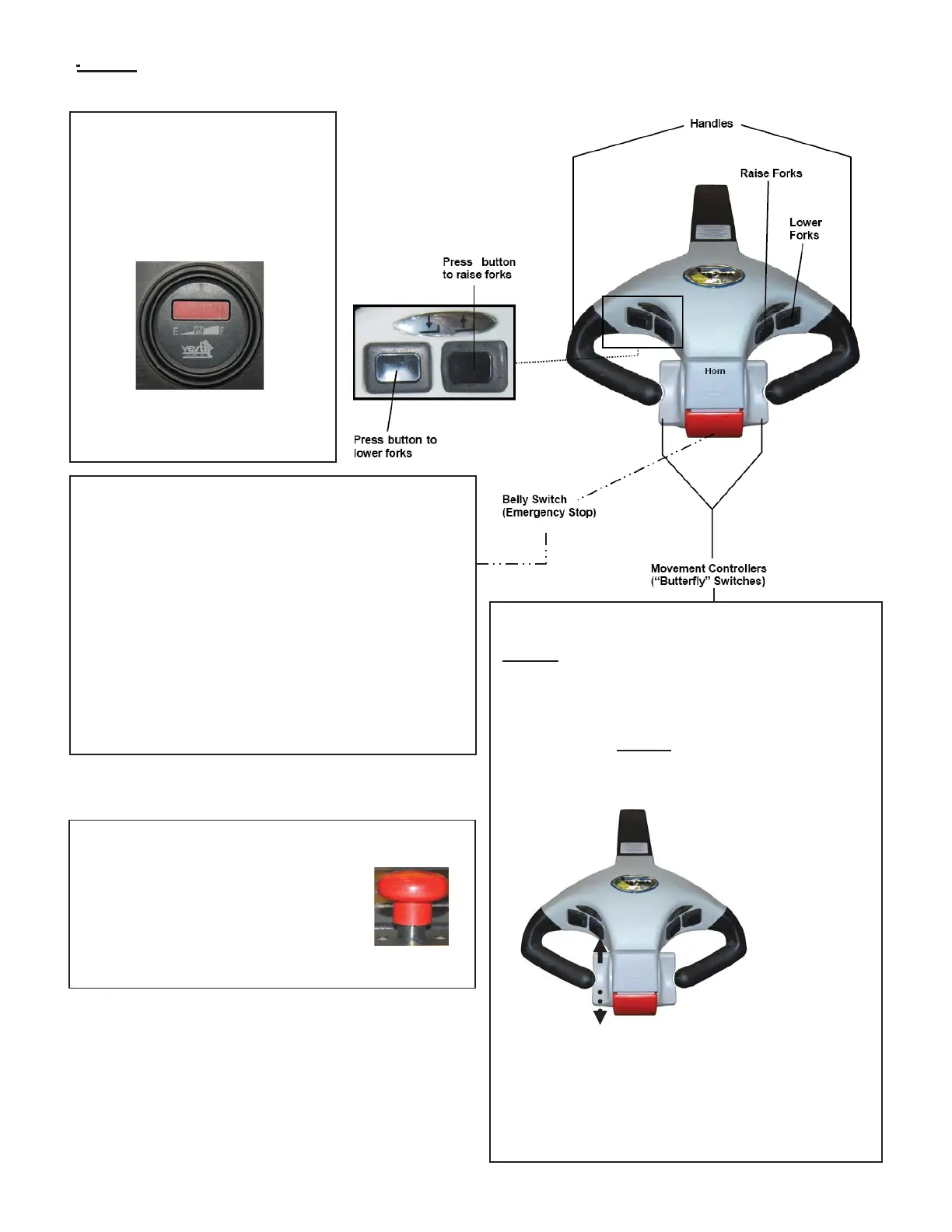

FIG. 1: Function Controls, Gauges, and Safety Features
BELLY SWITCH:
The belly switch protects the operator from
injury while driving the S3 in reverse.
When
pressed, the truck will change direction, i.e. move
forward, for approximately 3 seconds; after 3
seconds it will stop completely. If the belly switch
becomes jammed or stuck, the stacker will move
forward (away from the operator) for at most 3
seconds; the control circuit will remain disabled until
reset.
¾ To reset the circuit, either raise the handle to the
fully vertical position (or simply release the
handle), or press it downwards to the fully
horizontal position.
MOVEMENT CONTROLLERS:
To drive the S3 in the
forward direction, rotate the
movement control forward with
your thumbs as indicated
by the
solid arrow superimposed on
photograph below. To move the
pallet truck in reverse, rotate
the control wheel in the opposite
direction, which is shown with a
dashed arrow.
The degree of rotation determines the speed of
movement, so the farther you press the wheel
in either direction, the faster the S3 will travel, up to
a maximum speed of ~3mph when unloaded
or ~2.6mph when loaded to capacity. Simply
by releasing the movement control, the S3
will decelerate to a complete stop.
BATTERY CHARGE GAUGE:
The battery charge gauge
indicates the status of the
battery.
It is located on top of the
S3 main body and to the right of
the control yoke. As the battery
discharges, display lines
disappear from right to left.
A
lways check the gauge before
using the device; make sure that
the battery is charged before using
the
p
allet truck.
Reverse Forward
