Filename:
Belly Switch trouble shoot
VESTIL MFG. CO.
Model: S-62-AA/FF/FA

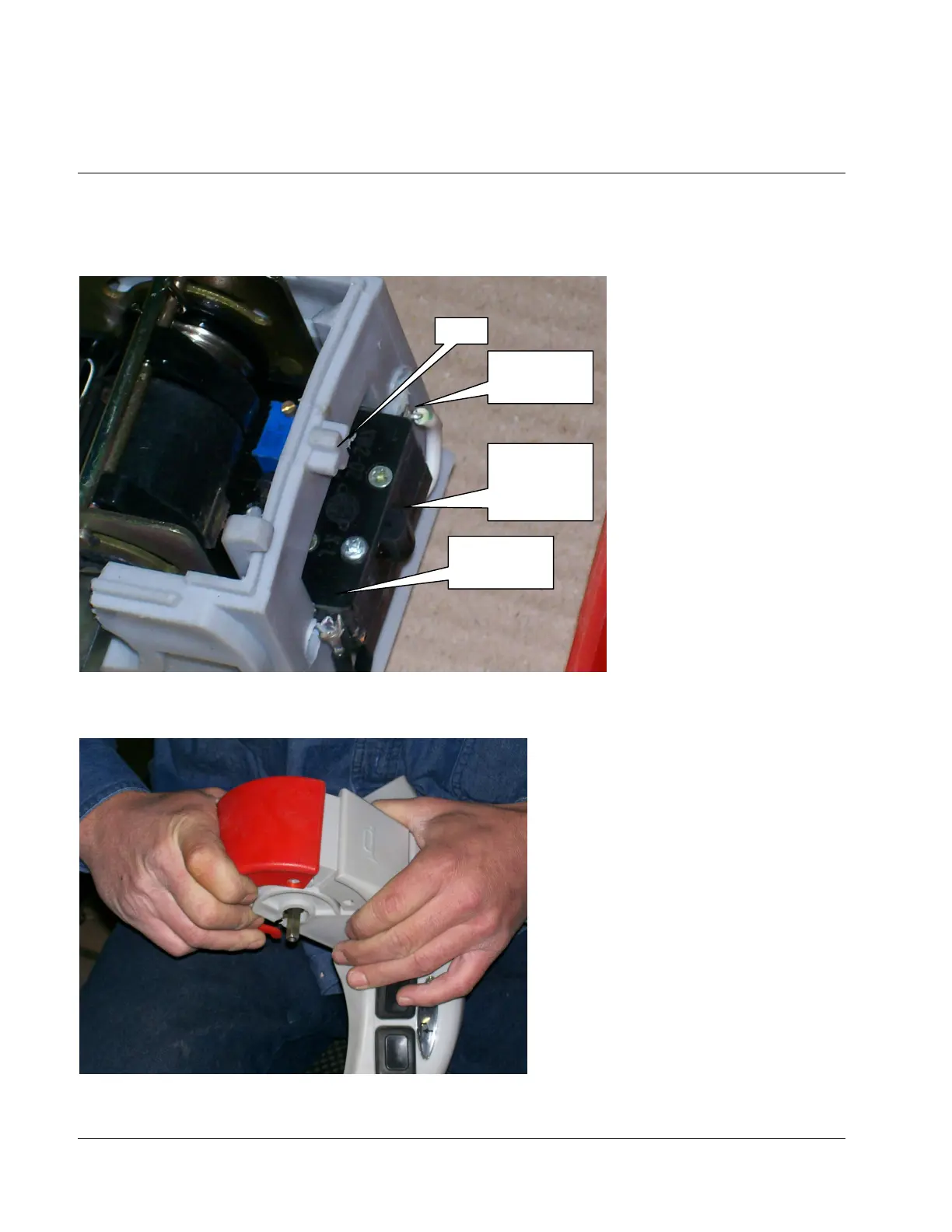

Another picture of the nub, spring not shown. At this point, verify the solder joints are in tact and the two wires are
attached to the switch as shown below. Also verify the belly switch is not stuck in. You should be able to push on the
switch and the actuator will move freely in and out, you should here a click as you do this. If the switch is stuck in contact
Vestil Manufacturing for replacement options. Fig19
Fig.19
Replace any broken/missing components. To assemble, press the red belly switch cover back on the tiller head seating the
red holes over the gray nubs. Basically the opposite of the procedure in Fig. 17, but without a screwdriver. Fig 20
Fig.20
Belly Switch
actuator
Solder
connection
Solder
connection
