Table of Contents 7/2/2019 RR MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Corp. Page 7 of 25

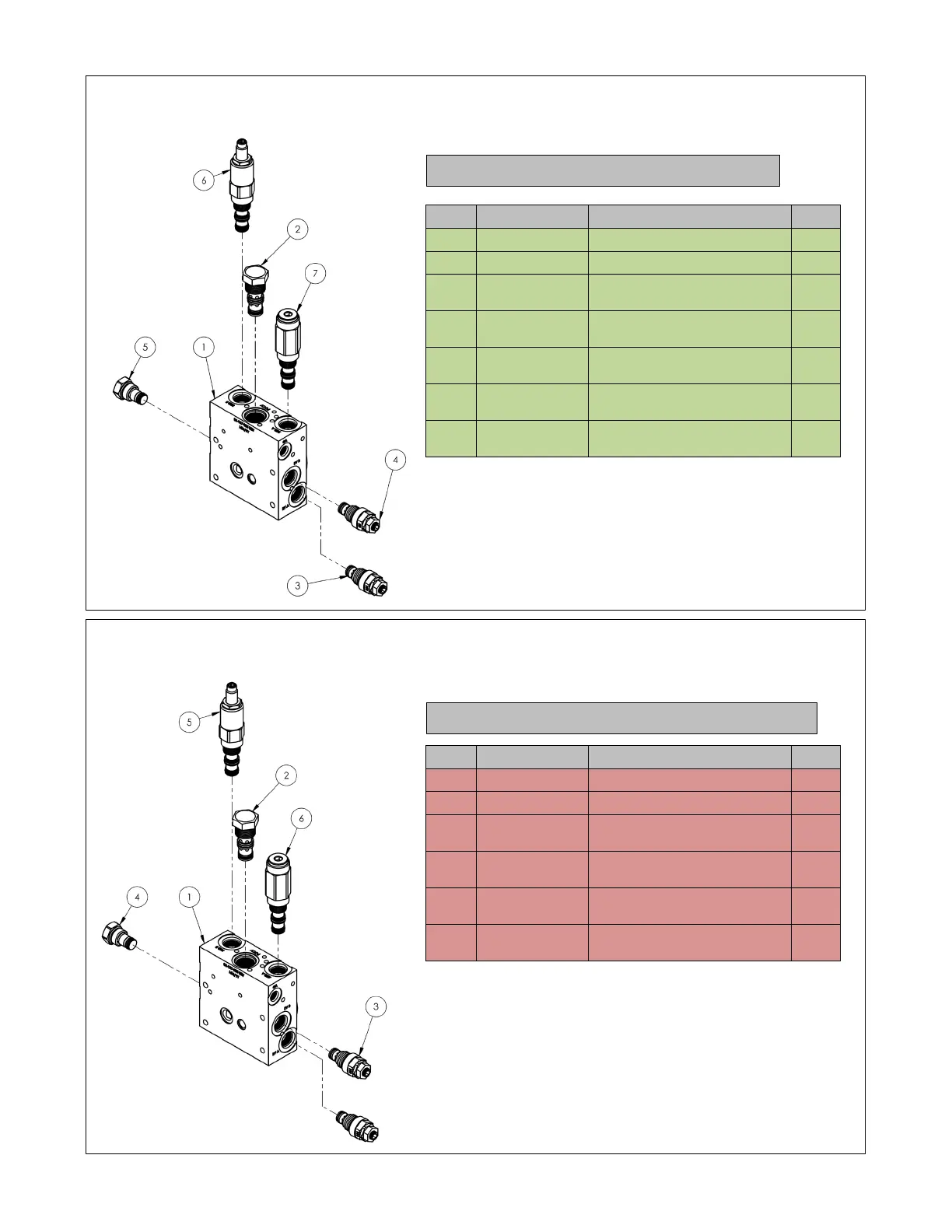

Manifold Exploded View (06-627-003):
EH-65; EH-66; & EH-68
Manifold Exploded View (06-627-004):
EH-610; EH-75; EH-76; EH-78, & EH-710
Item
Part no.
Description
Qty.
1 06-127-005 Manifold, hydraulic 1
2 99-153-020 Pilot-to-close check valve 1
3 99-153-004
Valve pressure relief, 100
bar
1
4 99-153-005
Valve, pressure relief, 33
bar
1
5 99-153-011
Check valve, size 08, nose
inside-out
1
6 99-153-054
Cartridge valve, sequence,
3-way, adjustable
1
7 99-153-055
Cartridge valve, sequence,
2-way with pilot
1
Item
Part no.
Description
Qty.
1
06-127-005
Manifold, hydraulic
1
2
99-153-020
Pilot-to-close check valve
1
3 99-153-004
Valve pressure relief, 100
bar
2
4 99-153-011
Check valve, size 08, nose
inside-out
1
5 99-153-054
Cartridge valve, sequence,
3-way, adjustable
1
6 99-153-055
Cartridge valve, sequence,
2-way with pilot
1
Return to Power Unit Exploded View on Page 5
Return to Power Unit Exploded View on Page 6
