TABLE OF CONTENTS Rev. 12/16/2021 PWPS MANUAL
TABLE OF CONTENTS Copyright 2021 Vestil Manufacturing Co. Page 4 of 11

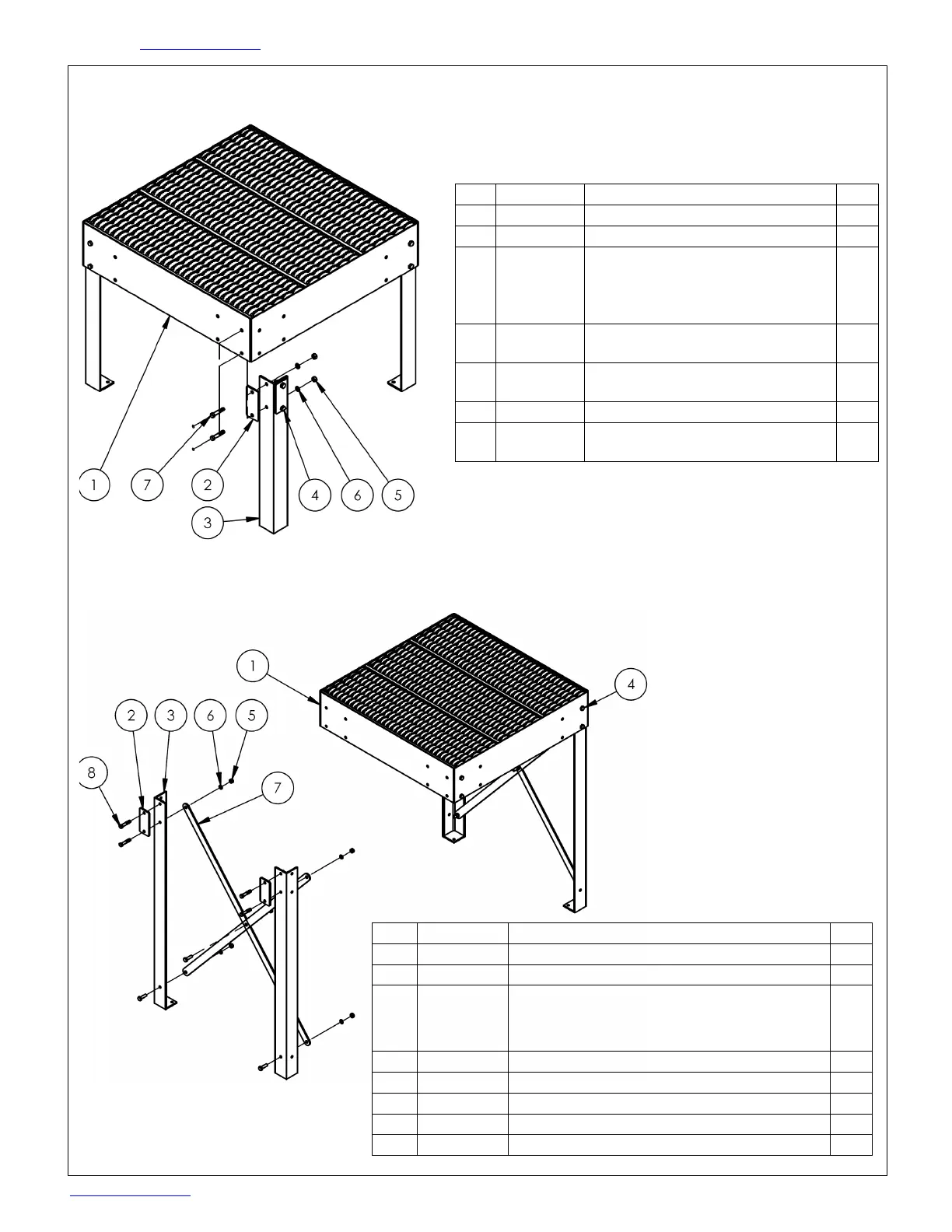

PWPS-30-3636 & PWPS-40-3636 EXPLODED VIEW & BILL OF MATERIALS
(44-006-694)
PWPS-50-3636, PWPS-60-3636, & PWPS-70-3636 EXPLODED VIEW & BILL OF
MATERIALS
(44-006-696)
Item
Part no.
Description
Qty.
1
44-514-275
WELDMENT, FRAME, PLATFORM
1
2
44-113-042
SPACER, LEG
8
3
44-514-271
44-514-272
WELDMENT, LEG
PWPS-30-3636: 30" PLATFORM HT.
PWPS-40-3636: 40” PLATFORM
HT.
4
4
4 11159
HEX BOLT, GRADE A, Z PLATED,
Ø7/16"-14 p4-x1 1/2"
8
5 36108
HEX NUT Z PLATED, GRADE A,
Ø7/16-14
16
6
33624
LOCK WASHER, Z PLATED, Ø 7/16
16
7 11162
HEX BOLT, GRADE A, ZINC FINISH,
7/16"-14 X 2 1/4"
8
Item
Part no.
Description
Qty.
1
44-514-275
WELDMENT, FRAME, PLATFORM
1
2 44-113-042 SPACER, LEG 8
3
44-514-273
44-514-274
44-514-270
WELDMENT, LEG
PWPS-50-3636: 50" PLATFORM HEIGHT
PWPS-60-3636: 60” PLATFORM HEIGHT
PWPS-70-3636: 70” PLATFORM HEIGHT
4
4
4
4
11159
HEX BOLT, GRADE A, Z PLATED, Ø7/16"-14 p4-x1 1/2"
14
5 36108 HEX NUT Z PLATED, GRADE A, Ø7/16-14 22
6
33624
LOCK WASHER, Z PLATED, Ø 7/16
22
7 44-017-024 BAR STIFFNER, LEG SUPPORT (CROSS BRACE) 4
8
11162
HEX BOLT, GRADE A, ZINC FINISH, 7/16"-14 X 2 1/4"
8
