TABLE OF CONTENTS Rev. 12/16/2021 PWPS MANUAL
TABLE OF CONTENTS Copyright 2021 Vestil Manufacturing Co. Page 5 of 11

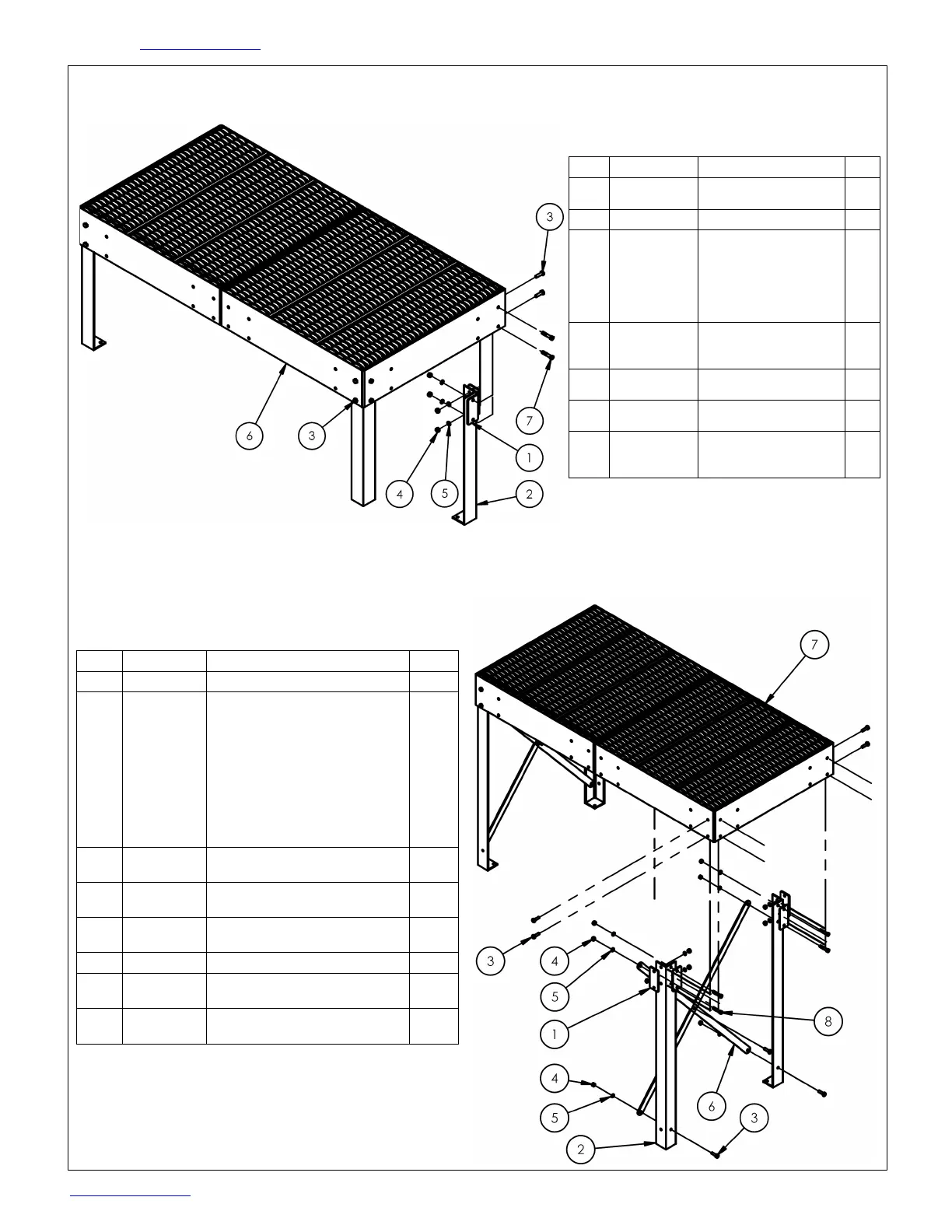

PWPS-30-3672 & PWPS-40-3672 EXPLODED VIEW & BILL OF MATERIALS
(44-006-699)
PWPS-50-3672, PWPS-60-3672, & PWPS-70-3672 EXPLODED VIEW & BILL OF
MATERIALS
(44-006-701)
Item
Part no.
Description
Qty.
1 44-514-275
WELDMENT, FRAME,
PLATFORM
1
2 44-113-042 SPACER, LEG 8
3
44-514-271
44-514-272
WELDMENT, LEG
PWPS-30-3636: 30"
PLATFORM HT.
OR
PWPS-40-3636: 40”
PLATFORM HT.
4
4
4 11159
HEX BOLT, GRADE A, Z
PLATED, Ø7/16"-14 p5-x1
1/2"
8
5 36108
HEX NUT Z PLATED,
GRADE A, Ø7/16-14
16
6 33624
LOCK WASHER, Z
PLATED, Ø 7/16
16
7 11162
HEX BOLT, GRADE A,
ZINC FINISH, 7/16"-14 X
2 1/4"
8
Item
Part no.
Description
Qty.
1
44-113-042
SPACER, LEG
8
2
44-514-273
44-514-274
44-514-270
WELDMENT, LEG
PWPS-50-3672: 50"
PLATFORM HEIGHT
OR
PWPS-60-3672: 60”
PLATFORM HEIGHT
OR
PWPS-70-3672: 70”
PLATFORM HEIGHT
4
4
4
3 11159
HEX BOLT, GRADE A, Z
PLATED, Ø7/16"-14 x1 1/2"
14
4 36108
HEX NUT Z PLATED, GRADE A,
Ø7/16-14
22
5 33624
LOCK WASHER, Z PLATED, Ø
7/16
22
6
44-017-024
BAR STIFFNER, LEG SUPPORT
4
7 44-514-462
WELDMENT, WORK
PLATFORM, 3672
1
8 11162
HEX BOLT, GRADE A, ZINC
FINISH, 7/16"-14 X 2 1/4"
8
