Table of Contents Rev. 4/2/2021 PRCT-HD MANUAL
Table of Contents Copyright 2017 Vestil Manufacturing Co. Page 3 of 7
SAFETY INSTRUCTIONS
Vestil strives to identify all hazards associated with the use of our products. However, material handling
is dangerous and no manual can address every risk. The most effective way to avoid injury is for the
end-user to exercise sound judgment whenever using this product.
WARNING
Improper or careless operation might result in serious personal injuries or death.
• Read & understand the entire manual before assembling, using, inspecting, or servicing the cart.
• Do not exceed the capacity.
• Pull the cart. Do not push the cart.
• Do center and evenly distribute all loads applied to the cart.
• Only use this cart on level, even ground. Do not use the cart on sloped ground when it is loaded.
• Strap loads to the cart whenever necessary to maintain stability.
• Apply both caster brakes whenever the cart is parked.
• Do not modify the cart. Modifications might make the cart unsafe to use and automatically void
the LIMITED WARRANTY on p. 7.
• Do not use the cart unless all labels are in place, undamaged, and easily readable from a
reasonable distance. See LABELING DIAGRAM on p. 6.

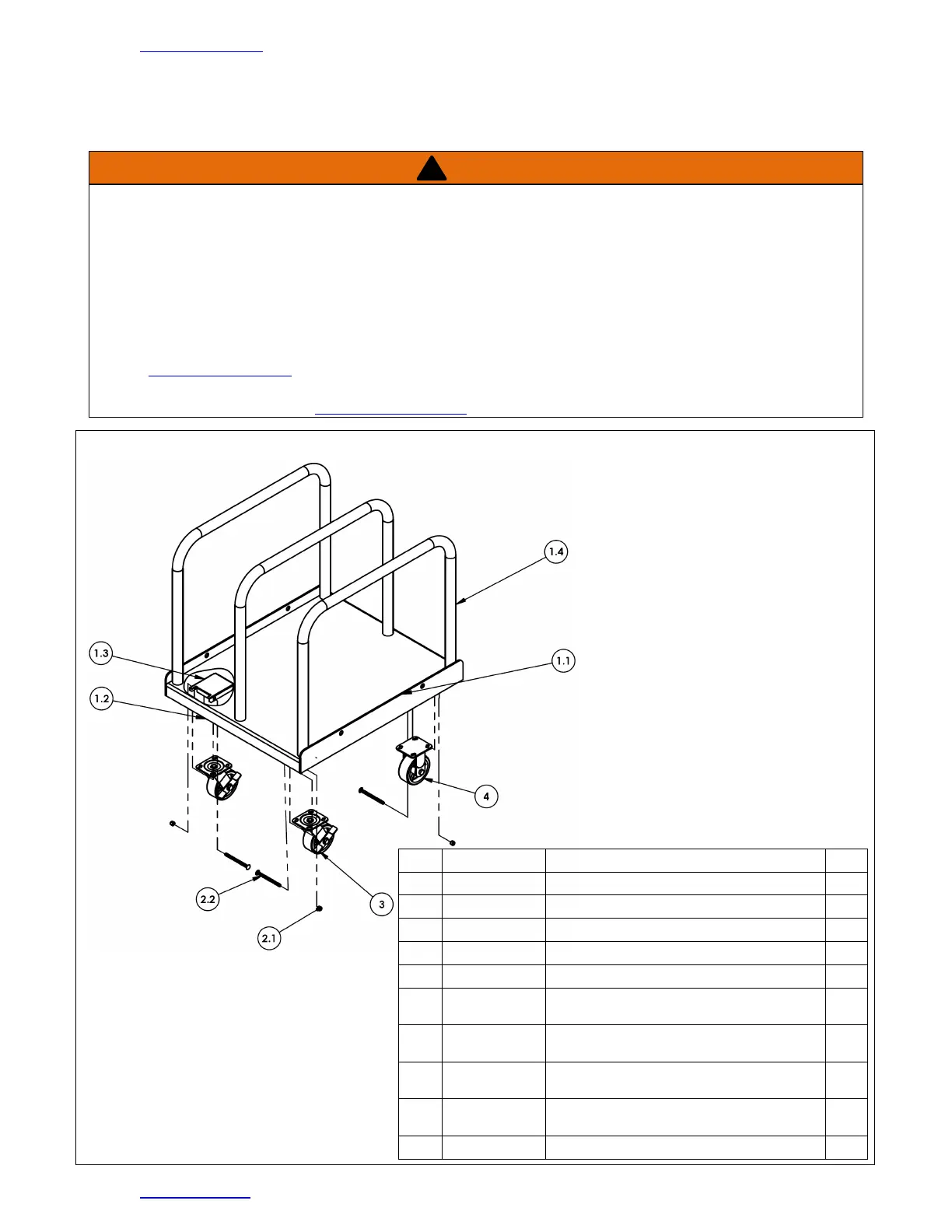

EXPLODED PARTS DIAGRAM AND BILL OF MATERIALS: PRCT-HD (16-001-116)
Item Part No. Description Qty.
1 16-513-010 FRAME, DECK SUB-ASSEMBLY 1
1.1 16-017-030 FRAME, BAR, STIFFENER 2
1.2 16-013-032 DECK, FORMED 1
1.3
16-132-076
CASTER, RECEIVER (BULLDOG - 4CP)
4
1.4
16-014-090
FRAME, RAILS, FORMED
3
2 99-612-001
PIN, BULLDOG BOLT AND NUT
ASSEMBLY
4
2.1 37024
NYLON INSERT LOCK NUT, GRADE 2,
ZINC FINISH, 3/8"-16
1
2.2 21373
CARRIAGE BOLT, GRADE A, ZINC
FINISH, 3/8"-16 X 5"
1
3 16-132-053
PU-5/2-S-SWB, SWIVEL CASTER
W/BRAKE
2
4
16-132-022
PU-5/2-R, RIGID CASTER
2
!
