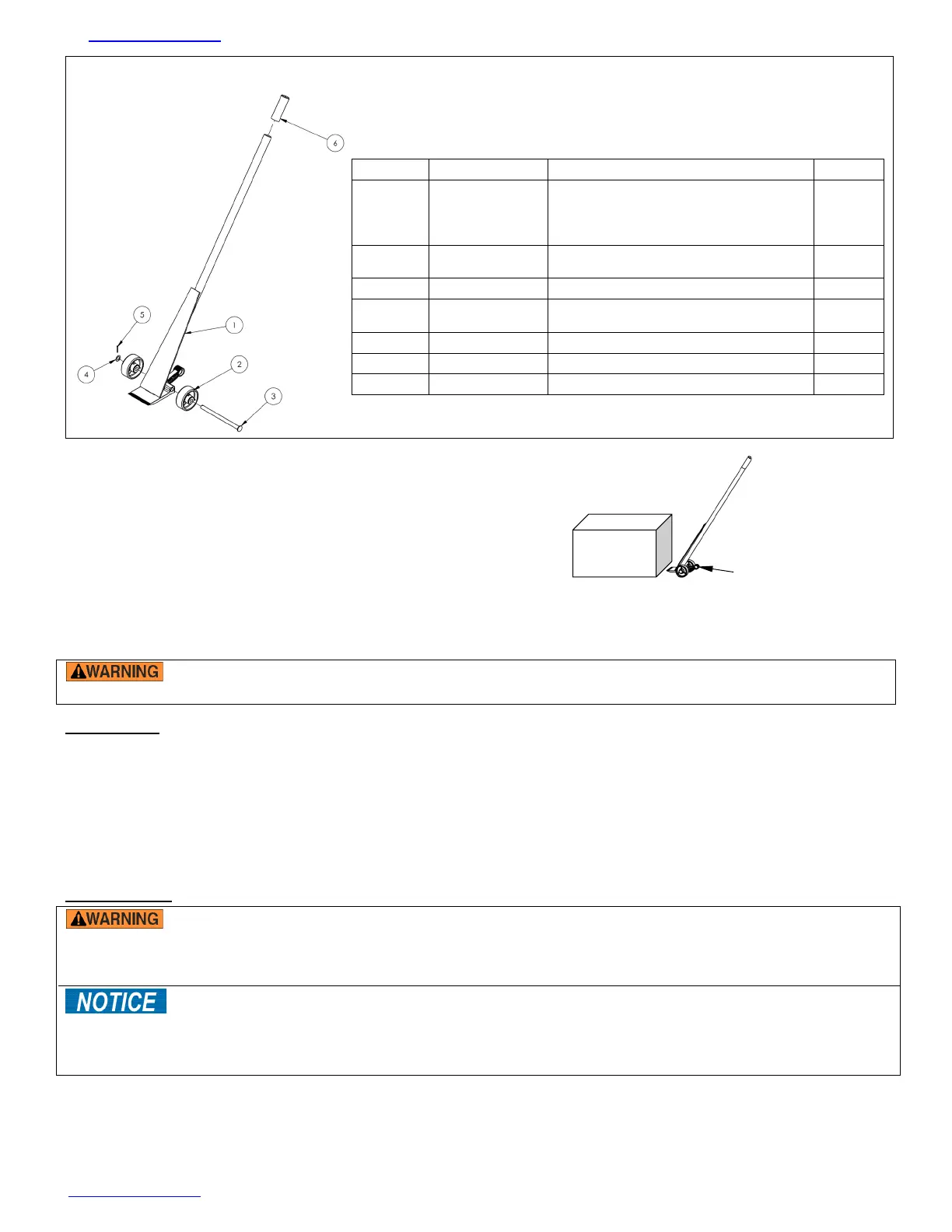

EXPLODED VIEW AND BILL OF MATERIALS
USING THE PRY BAR
To lift an object with the pry bar:
1. Slide the nose plate under the object. If necessary apply steady
pressure to the foot lever to push the plate under the object; then
2. Carefully pull down the end of the handle. Make sure that the
nose plate does not slip out from under the object.
INSPECTIONS & MAINTENANCE
Perform the inspections explained below and maintain the pry bar as described to ensure that the unit is in normal,
safe operating condition.
If a problem is discovered during an inspection, restore the unit to normal operating condition BEFORE
using it again.
Inspections:
Before each use (including first use) inspect:
1. Handle and nose plate: look for regions of significant wear, cracks, cracked welds, deformity, corrosion, & rust.
2. Wheels and mounting hardware: roll the pry bar to confirm that the wheels and bearings are in normal
condition. Examine the axle pin, machine bushing and cotter pin. The axle pin should be straight and
undamaged. The bushing should be undamaged and allow the wheel it contacts to turn smoothly without
contacting the cotter pin. The cotter pin should be undamaged and securely attached to the axle pin.
3. Product labels: all labels should be readable and located as shown in the “Label placement diagram” on p. 4. If
a label(s) is unreadable or missing, contact Vestil to order a replacement.
Maintenance:
DO NOT use the unit if repairs are incomplete! While servicing the pry bar, DO NOT modify it in any way.
A “modification” is a change that alters the product from original condition, like bending the structural members or
removing a part or several parts. Modifications might make the device unsafe to use and automatically void the limited
warranty.
Proper use, maintenance, and storage are essential for this product to function properly.
• Always use the pry bar as described in this instruction manual.
• ONLY install replacement parts supplied or approved by the manufacturer.
• ALWAYS store the pry bar in a dry location.
Step 1: Remove any dirt or other matter from all surfaces.
Step 2: Inspect the pry bar as suggested on p. 3. If deformity, corrosion, rusting, or excessive wear is discovered, DO
NOT use the product.
Step 3: Perform all necessary adjustments, replacements and/or repairs.
Step 4: Make a dated record of all repairs, adjustments and/or replacements.
Item no.
Part no.
Description
Quantity
1
33-514-004
33-514-005
33-514-006
Frame weldment
PLBS-5
PLBS-6
PLBS-7
1
1
1
2
16-132-020-001
5” x 2” poly on steel wheel, roller
bearing, for
3
/
4
“ axle
2
3
33-112-013
Axle pin
1
4
33424
Machine bushing, low carbon, plain
finish,
3
/
4
“ x 18ga.
4
5
65058
7
/
64
“ x 1
1
/
2
“ zinc-plated cotter pin
1
6
13-025-015
Handle grip
1
*
13-154-006
Replacement parts: complete wheel kit
Foot lever
