Table of Contents Rev. 10/28/2020 PEL MANUAL
Table of Contents Copyright 2020 Vestil Manufacturing Corp. Page 10 of 17

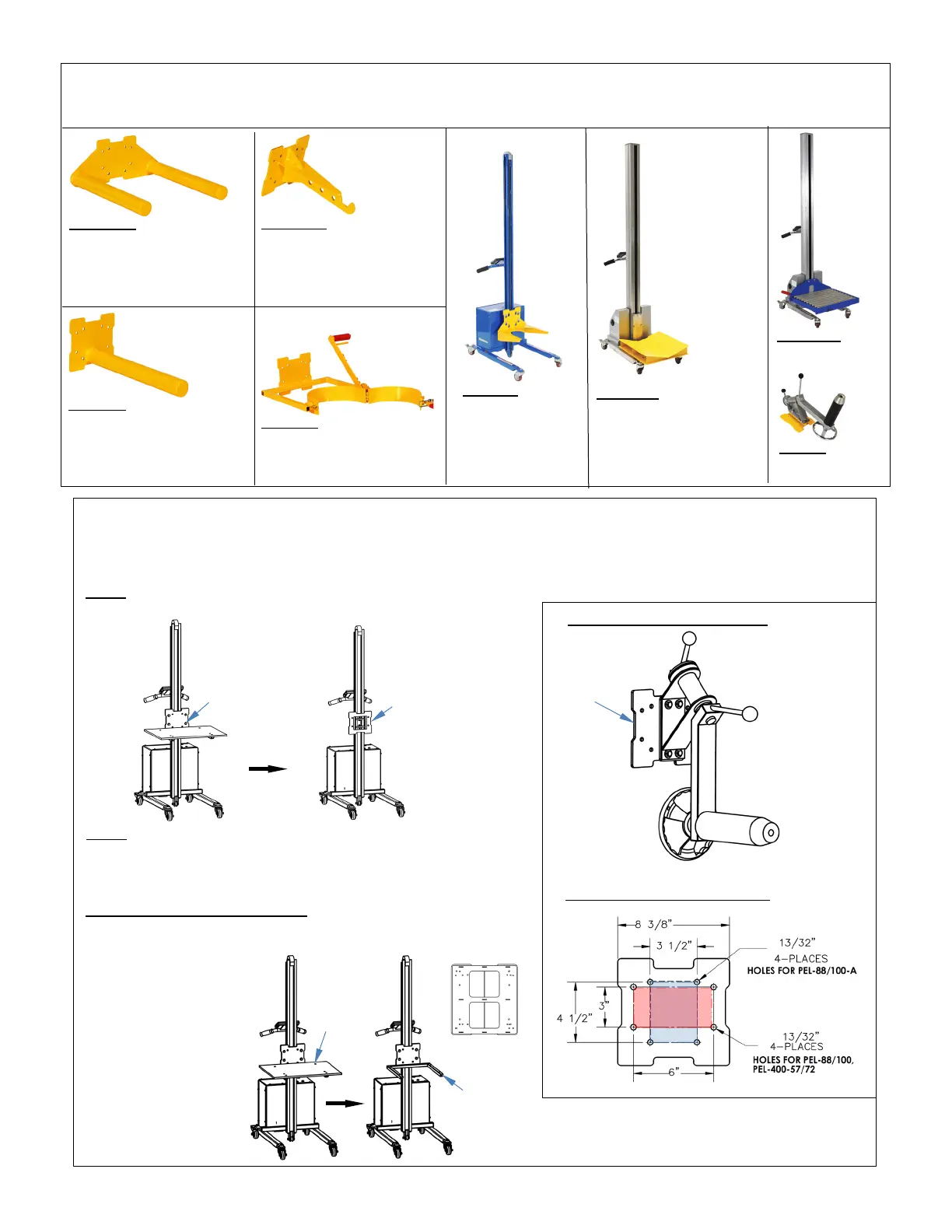

ACCESSORY CARRIAGE ATTACHMENTS
The following carriage attachments can be purchased separately. Remove the standard load deck to install an
attachment. See INSTALLING ACCESSORY CARRIAGE ATTACHMENTS. NOTE: 2.2 lb. = 1kg
INSTALLING ACCESSORY CARRIAGE ATTACHMENTS
Each attachment (except PEL-VBLK) includes a carriage mounting plate with 8 bolt holes as shown in the diagram below.
Use the wider bolt pattern (see red rectangle) to mount your attachment to the carriage of any steel quick lift. To mount an
attachment to an aluminum quick lift, use the narrow bolt pattern (shaded blue).
Dimensions of mounting plate:
Step 1: Remove the
3
/
8
” – 16 x 1
1
/
2
” bolts that fasten the deck
to the carriage.
Bolt
Carriage
Step 2: Fasten the mounting plate of your attachment to the carriage
using the hardware removed during step 1. The correct top-to-bottom
orientation of each attachment is indicated in the “Accessory carriage
attachments” section above.
Attachment (PEL-RR shown):
Mounting
plate
PEL-DSPIN
Weight = 20 lb.
Capacity:
PEL-88 & PEL-88-A = 175 lb.
PEL-100 & PEL-100-A = 125 lb.
PEL-400-57/72 = 400 lb.
PEL-HOOK
Weight = 9 lb.
Capacity:
PEL-88 & PEL-88-A = 175 lb.
PEL-100 & PEL-100-A = 125 lb.
PEL-400-57/72 = 400 lb.
PEL-PAIL
Weight = 20 lb.
Capacity = 125 lb.
PEL-RR
Weight = 40 lb.
Capacity = 125 lb.
PEL-SPIN
Weight = 11 lb.
Capacity:
PEL-88 & PEL-88-A = 175 lb.
PEL-100 & PEL-100-A = 125 lb.
PEL-400-57/72 = 400 lb.
PEL-VBLK
Weight = 27 lb.
Capacity:
PEL-88; PEL-88-A
= 175 lb.
PEL-100; PEL-100-A
= 125 lb.
PEL-400-57/72
= 400 lb.
PEL-CONV
Weight = 40 lb.
Capacity = 175
Installing attachment PEL-VBLK:
1. Disconnect the deck
from the carriage
arms by removing
the 10-32 x 1” flat
head bolts.
2. Center the
attachment on the
arms and align bolt
holes in the VBLK
with the bolt holes in
the carriage arms.
Use the bolts to
fasten the VBLK
attachment to the
carriage arms.
Bottom side of
PEL-VBLK
Bolt
Carriage
arms
NOTE: The PEL-VBLK can be mounted with the groove
facing forward or to the side.
PEL-PL-5
Weight = 12 lb.
Capacity = 100 lb.
*Only lift 5gal. pails
with this attachment.
