Rev. 4/19/2017 PAL, MANUAL
Copyright 2017 Vestil Manufacturing Co. Page 3 of 4

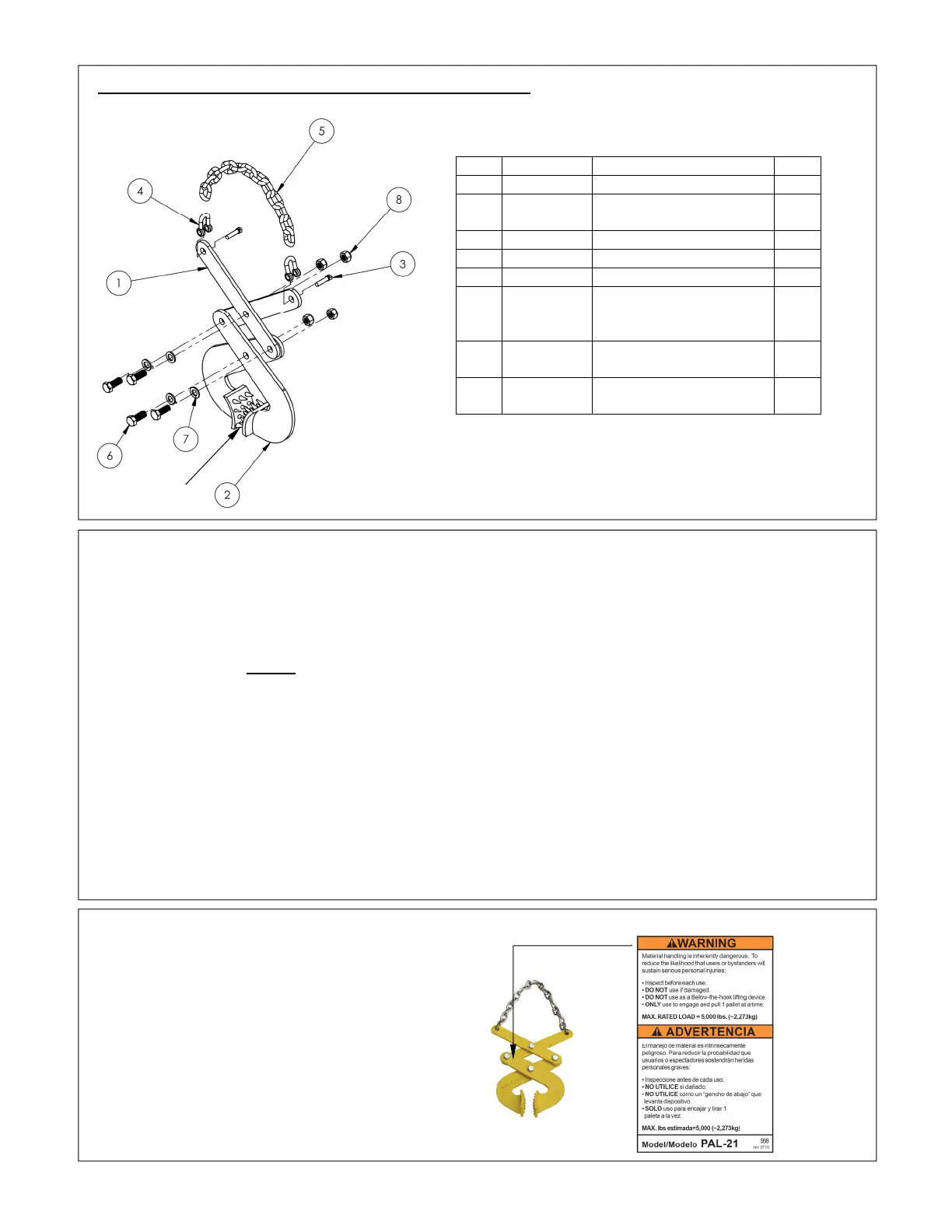

Exploded Parts Diagram and Bill of Materials:
Inspections and Maintenance:
Regular inspections and maintenance are necessary to keep the device in normal condition. Before
using the puller for the first time, create a written record that describes the appearance of each part. Be
certain that your record includes descriptions about pivot points, pins, bolts, and shackles. This written
record establishes “normal operating condition”. When conducting future inspections, compare those
observations with the written record to determine if a component requires repair or replacement.
Inspect the puller before it is used for the first time. Then, inspect the following at least once per
week.
1. Jaw arms and link arms: examine the arms for twisting, bending and warping regions. Pay
particular attention to wear at pivot points.
2. Pins, bolts, and nuts: check all bolts and shackle pins for straightness. Shackle pins should be
firmly fastened to the shackles.
3. Shackle or chain: inspect for cracks, elongations and deformations.
4. Grippers: confirm soundness of welds to the jaw arms.
5. All components: check for excessive wear.
In addition to inspections, maintain the puller in the following ways:
a. Clean the puller periodically to preserve the paint.
b. Lubricate all pivot points.
Labeling diagram:
The product must always be labeled as shown in
the diagram below. Replace any label that is
missing, damaged, or unreadable (e.g. faded).
Label 568
Jaws
Item Part no. Description Qty.
1 36-016-001
Bracket (“Link arm”) 2
2 36-514-003
Weldment, frame, arm
(“Jaw arm”)
2
3 36-145-003
Pin, shackle 2
4 36-145-002
Shackle 2
5 36-145-001
Chain,
3
/
8
” x 26
1
/
2
” 1
6 0161852
Hex bolt, low carbon,
zinc plates, M16 – 2.0 x
40mm
4
7 40361
Flat washer, zinc plated,
M16 x 30mm
4
8 40179
Hex nut, low carbon, zinc
plated, M16 – 2.0
4
