Table of Contents Rev. 10/8/2021 P-HOP, MANUAL
Table of Contents Copyright 2021 Vestil Manufacturing Corp. Page 4 of 12

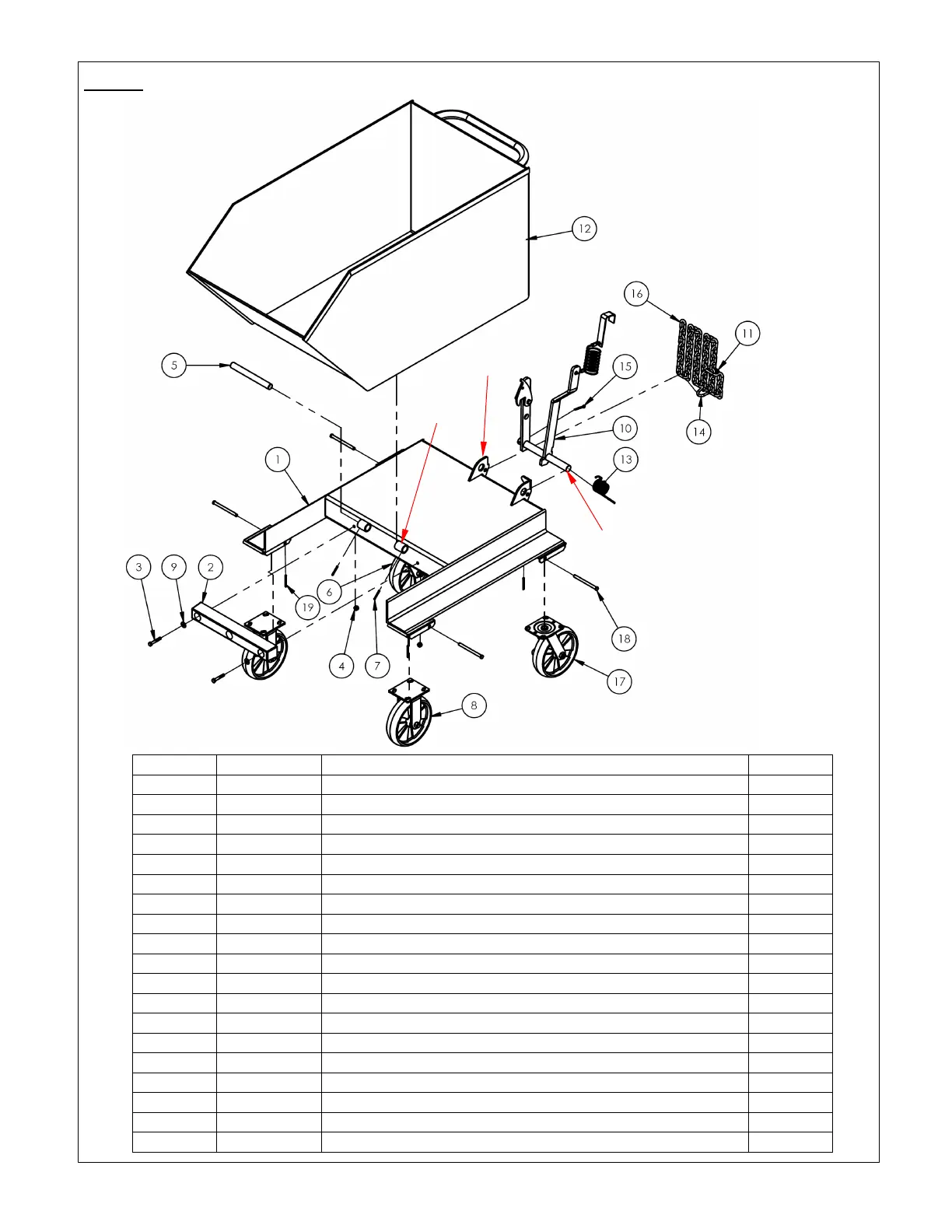

FIG. 1: P-HOP-0.5 EXPLODED VIEW AND BILL OF MATERIALS (37-006-003)
Item no.
Part no.
Description
Quantity
1
37-514-097
WELDMENT, BASE, FRAME
1
2
29-048-061
BUMPER, RUBBER
1
3
11061
HHCS #2 Z PLATED, Ø 5/16 - 18 x 2" LG
2
4
37021
NYLON INSERT LOCK NUT, GRADE 2, ZINC FINISH, 5/16"-18
2
5
37-112-010
PIN, HINGE AXLE
1
6
16-132-208
CASTER, SWIVEL, 8" X 2"
1
7
64137
SPRING PIN,AISI 1070-1095,PLAIN FINISH, Ø3/16 x 1 1/2" LG.
2
8
16-132-233
CASTER, RIGID, GFN-8/2-R
2
9
33006
FLAT WASHER,ZINC PLATED,USS, Ø5/16"
2
10
37-537-021
WELDMENT, LOCK, RELEASE LEVER ASSEMBLY
1
11
99-145-053
5/16" QUICK LINK
1
12
37-545-010
WELDMENT, CHUTE
1
13
37-146-005
SPRING,TORSION,HOPPER RELEASE
1
14
99-145-084
LAP LINK, 5/16" X 1 1/2"
1
15
65127
COTTER PIN Z PLATED, 3/16 x 2
1
16
09-145-018
CHAIN, 5/16" x 56" LG
1
17
16-132-248
GFN-8/2-S-SWB
1
18
99-112-006
PIN, CLEVIS
4
19
65080
EXTENDED PRONG COTTER PIN, ZINC FINISH, 1/8" x 2"
4
Pin bracket
Release lever pin
(integral part of 10)
Axle
receiver
