Table of Contents Rev. 8/14/2025 OLF-4 MANUAL
Table of Contents Copyright 2020 Vestil Manufacturing Co. Page 3 of 7

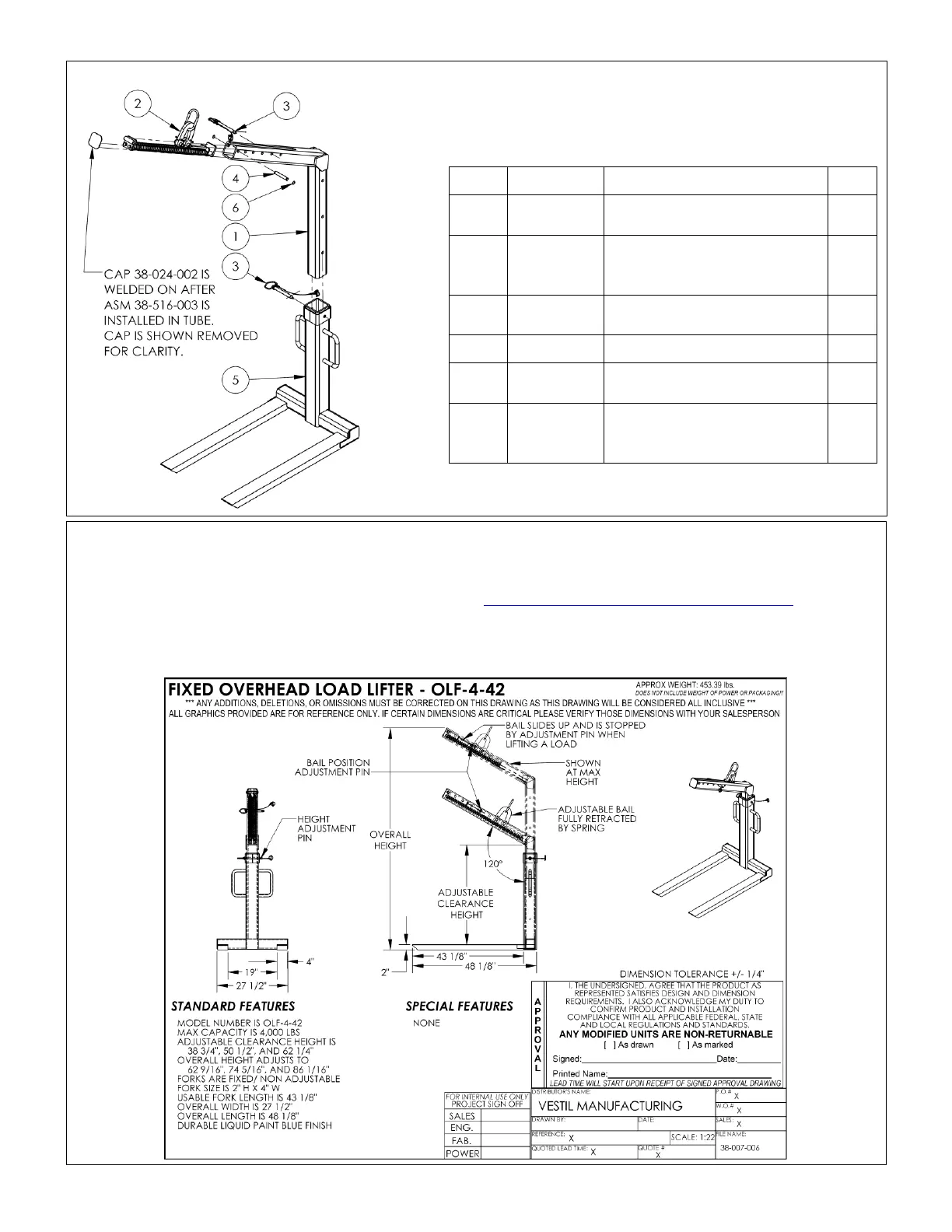

OLF-4-42 EXPLODED VIEW AND BILL OF MATERIALS
38-006-006
ITEM
PART NO.
DESCRIPTION
QTY.
1
38-514-003
WELDMENT, FRAME
HOIST TUBE
1
2
38-516-003
BRACKET, SPRING
BALANCE SUB-
ASSEMBLY
1
3
99-112-057
PIN HEIGHT
ADJUSTMENT
2
4
38-112-002
PIN, HOIST
1
5
38-514-006
WELDMENT, FRAME,
BASE SUB-ASSEMBLY
1
6
38-117-001
RETAINER RING,
EXTERNAL FOR Ø3/4
SHAFT
2
SPECIFICATIONS
Documents that provide specifications for OLF-series lifters are available online to anyone who visits Vestil’s
website. Specifications include dimensions, net weight, and capacity information. To access the appropriate
specifications document, navigate to this webpage: https://www.vestil.com/product.php?FID=575. Click the
“Specifications” tab. Scroll the page to the entry for the model ladder you purchased, and click the button in the
“PDF” column that looks like a pencil inside a blue-bordered box. A PDF file will open. This file is the specifications
document. Print a copy of the document and keep it with your copy of this manual. The following specifications
document is up-to-date as of the date this manual was written (see header).
