Table of Contents Rev. 8/14/2025 OLA-4 MANUAL
Table of Contents Copyright 2020 Vestil Manufacturing Co. Page 3 of 8

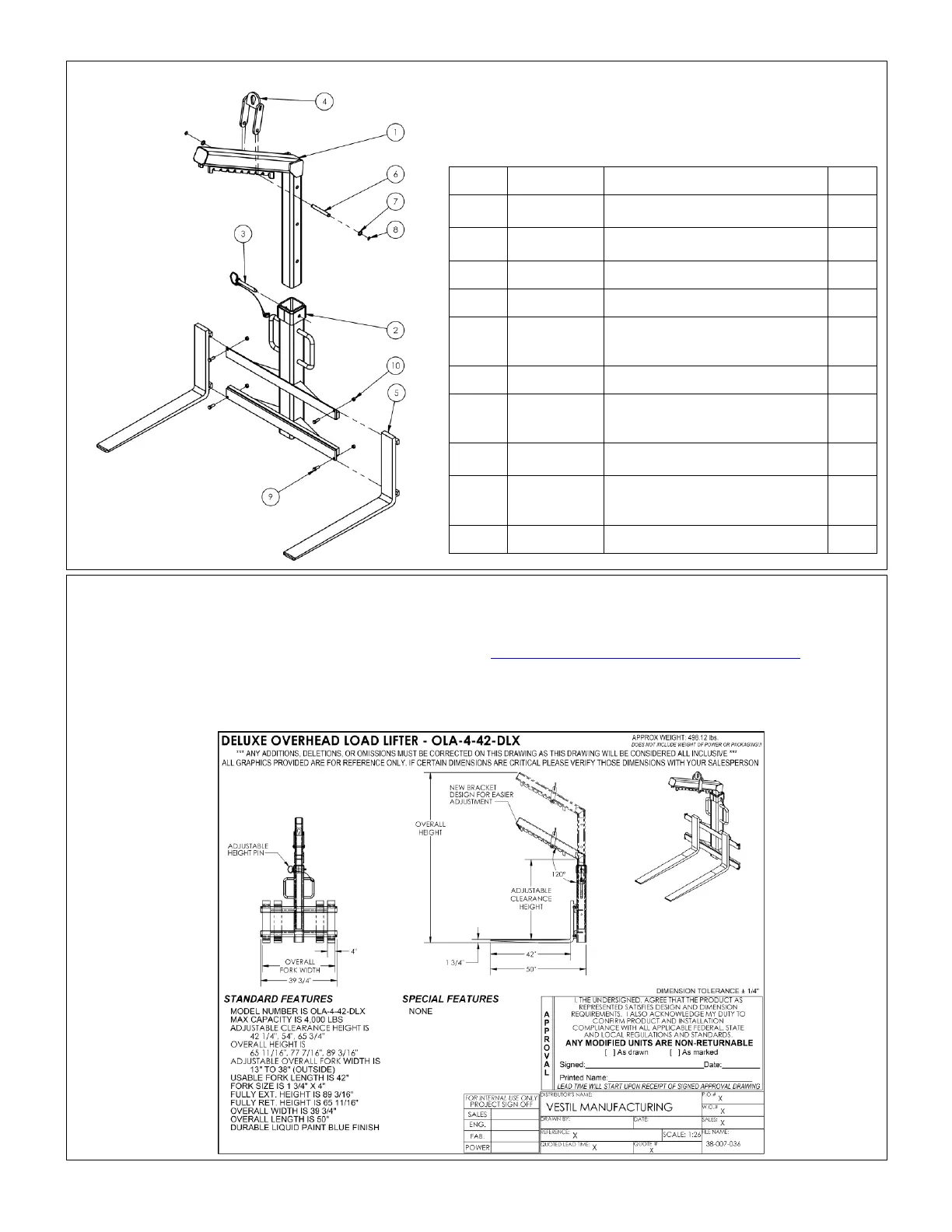

OLA-4-36/42-DLX EXPLODED VIEW AND BILL OF MATERIALS
38-006-033
ITEM
PART NO.
DESCRIPTION
QTY.
1
38-514-056
WELDMENT, TUBE, INNER
FRAME
1
2
38-514-058
WELDMENT, TUBE, CENTER
ASSEMBLY
1
3
99-112-057
PIN, HEIGHT ADJUSTMENT
1
4
38-514-059
WELDMENT, HOOK BAIL
1
5
38-028-007
38-028-015
FORK
OLA-4-36-DLX
OLA-4-42-DLX
2
2
6
38-112-023
PIN, BALE
1
7
33424
MACHINE BUSHING, LOW
CARBON, PLAIN FINISH, Ø3/4"
X 18 GA
2
8
68015
EXTERNAL RETAINING
RING,PHOSPHATE, 3/4"
2
9
11209
1/2-13 X 1 1/2" LG HHCS -
ASTM A307 GRADE A, ZINC
PLATED
4
10
36110
HEX NUT Z-PLATED, Ø 1/2 - 13
4
SPECIFICATIONS
Documents that provide specifications for OLA-#-##-DLX are available online to anyone who visits Vestil’s
website. Specifications include dimensions, net weight, and capacity information. To access the appropriate
specifications document, navigate to this webpage: https://www.vestil.com/product.php?FID=575. Click the
“Specifications” tab. Scroll the page to the entry for the model ladder you purchased, and click the button in the
“PDF” column that looks like a pencil inside a blue-bordered box. A PDF file will open. This file is the specifications
document. Print a copy of the document and keep it with your copy of this manual. This is an exemplar specifications
document for model OLA-4-42-DLX:
