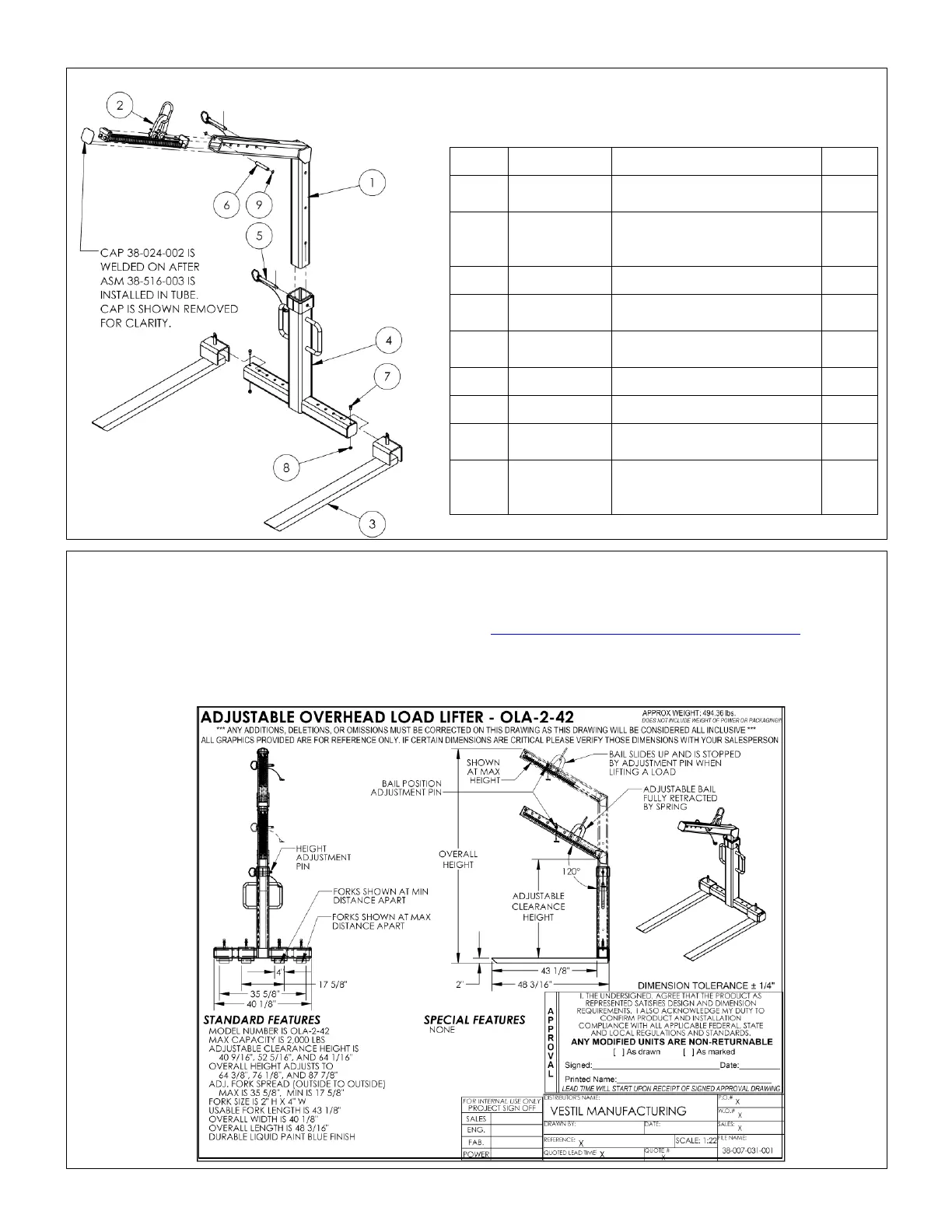

Table of Contents Rev. 8/14/2025 OLA-2 MANUAL
Table of Contents Copyright 2020 Vestil Manufacturing Co. Page 4 of 8
SPECIFICATIONS
Documents that provide specifications for OLA-#-42 model lifters are available online to anyone who visits Vestil’s
website. Specifications include dimensions, net weight, and capacity information. To access the appropriate
specifications document, navigate to this webpage: https://www.vestil.com/product.php?FID=575. Click the
“Specifications” tab. Scroll the page to the entry for the model ladder you purchased, and click the button in the
“PDF” column that looks like a pencil inside a blue-bordered box. A PDF file will open. This file is the specifications
document. Print a copy of the document and keep it with your copy of this manual. This is an exemplar specifications
document for model OLA-2-42.
OLA-2-42 EXPLODED VIEW AND BILL OF MATERIALS
38-006-031
ITEM
PART NO.
DESCRIPTION
QTY.
1
38-514-003
WELDMENT, INNER
FRAME HOIST TUBE
1
2
38-516-003
BRACKET, SPRING
BALANCE SUB-
ASSEMBLY
1
3
38-528-001
FORK, SUB-ASSEMBLY
2
4
38-514-004
WELDMENT, FRAME
BASE SUB-ASSEMBLY
1
5
99-112-057
PIN, HEIGHT
ADJUSTMENT
2
6
38-112-002
PIN, BALE ADJUSTMENT
1
7
13154
BOLT,7/16"-14UNC x 7/8"
2
8
36108
HEX NUT Z PLATED,
Ø7/16-14
2
9
38-117-001
RETAINER RING,
EXTERNAL FOR Ø3/4
SHAFT
2
