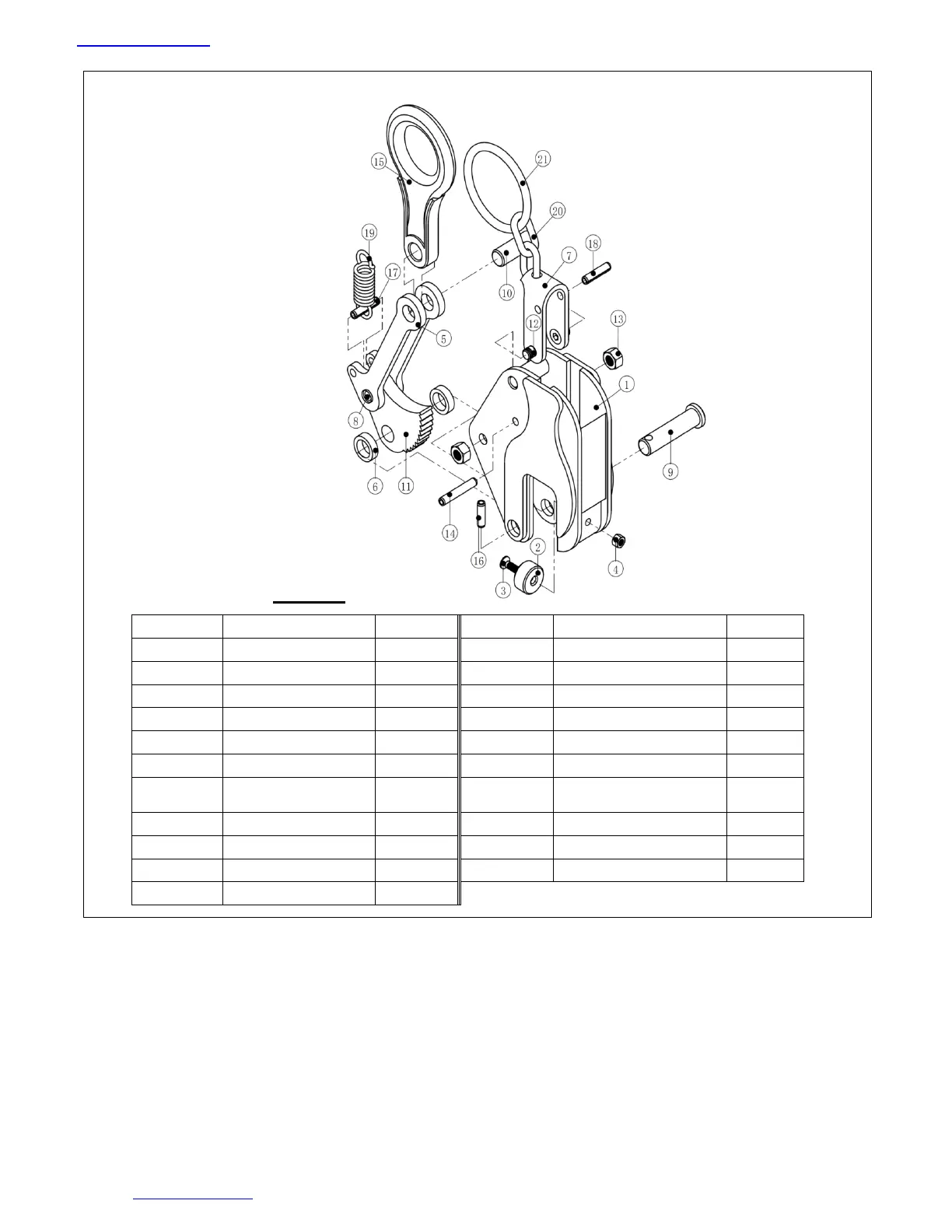

EXPLODED VIEW AND BILL OF MATERIALS
USING THE PLATE CLAMP
NOTE: The clamp is BTH design category B, service class 1. It is not designed for use with stainless steel or
aluminum sheets. Materials must have surface hardness up to 30 RC (300 HB).
This lifter is a below-the-hook lifting device, design category B (used for loads and variations
which are severe and not accurately defined), service class 1 (20,001 to 100,000 load cycles). It
should only be operated by qualified personnel. ASME B30.20 defines qualified person as “a person
who, by the possession of a recognized degree in an applicable field or certificate of professional
standing, or who, by extensive knowledge, training, and experience, has successfully
demonstrated the ability to solve or resolve problems relating to the subject matter at hand.”
Qualified persons include designated persons, trainees under the direct supervision of a
designated person, maintenance personnel, test personnel, and inspectors.
PART NO. DESCRIPTION QTY. PART NO. DESCRIPTION QTY.
1 Cover Assembly 1 12 Gripper Pin 1
2
Pad 1
13
Lock Nut 1
3
Heavy Bolt 1
14
Spring Pin 1
4
Lock Nut 1
15
Shackle 1
5
Connecting Link 2
16
Spring Pin 1
6
Ring 2
17
Spring Pin 1
7
Lock Wheel
Assembly
1 18 Spring Pin 1
8 Gripper Pin 2 19 Spring 1
9
Axis Pin 2
20
Chain Link 2
10
Link Pin 1
21
Lock Ring 1
11
Gripper/Cam 1
