Table of Contents Rev. 8/28/2024 LM MANUAL
Table of Contents Copyright 2020 Vestil Manufacturing Co. Page 19 of 25
LOADING AND USING THE BOOM
Review the SAFETY INSTRUCTIONS on p. 2 and the following additional safety instructions.
Improper use of this product might result in serious personal injuries.
DO NOT use this boom with rough terrain lift trucks or telehandlers (boom trucks). ONLY use it with high lift
fork trucks utilizing a vertical mast and carriage.
DO NOT mount the hopper on stackers or manually propelled lift trucks.
DO NOT operate the truck carrying this boom on unimproved surfaces. Only operate on concrete or
asphalt surfaces.
DO NOT attempt to lift loads weighing more than the capacity of the boom or your forklift, whichever is
smaller. Confirm that the load weighs less than the maximum rated load of your boom at the intended
attachment point. See CENTERS OF GRAVITY AND LOAD RATINGS on p. 5 see also LABELING DIAGRAM on
p. 11. Confirm that your fork lift is rated to lift the combined weight of the boom, rigging, and the load.
Contact the manufacturer of your fork lift BEFORE using the boom and request:
1. Written approval to use the boom with your lift truck; AND
2. Markings (labels) for the lift truck that: a) Identify your LM-boom; AND b) Provide the
approximate net weight of the forklift truck and boom at the maximum fork elevation with a
laterally-centered load. See 29 CFR 1910.178(a)(5).
DO NOT connect a load to only 1 hook, which will cause the load to rotate during lifting and transport
operations. Loads must be connected to both hooks.

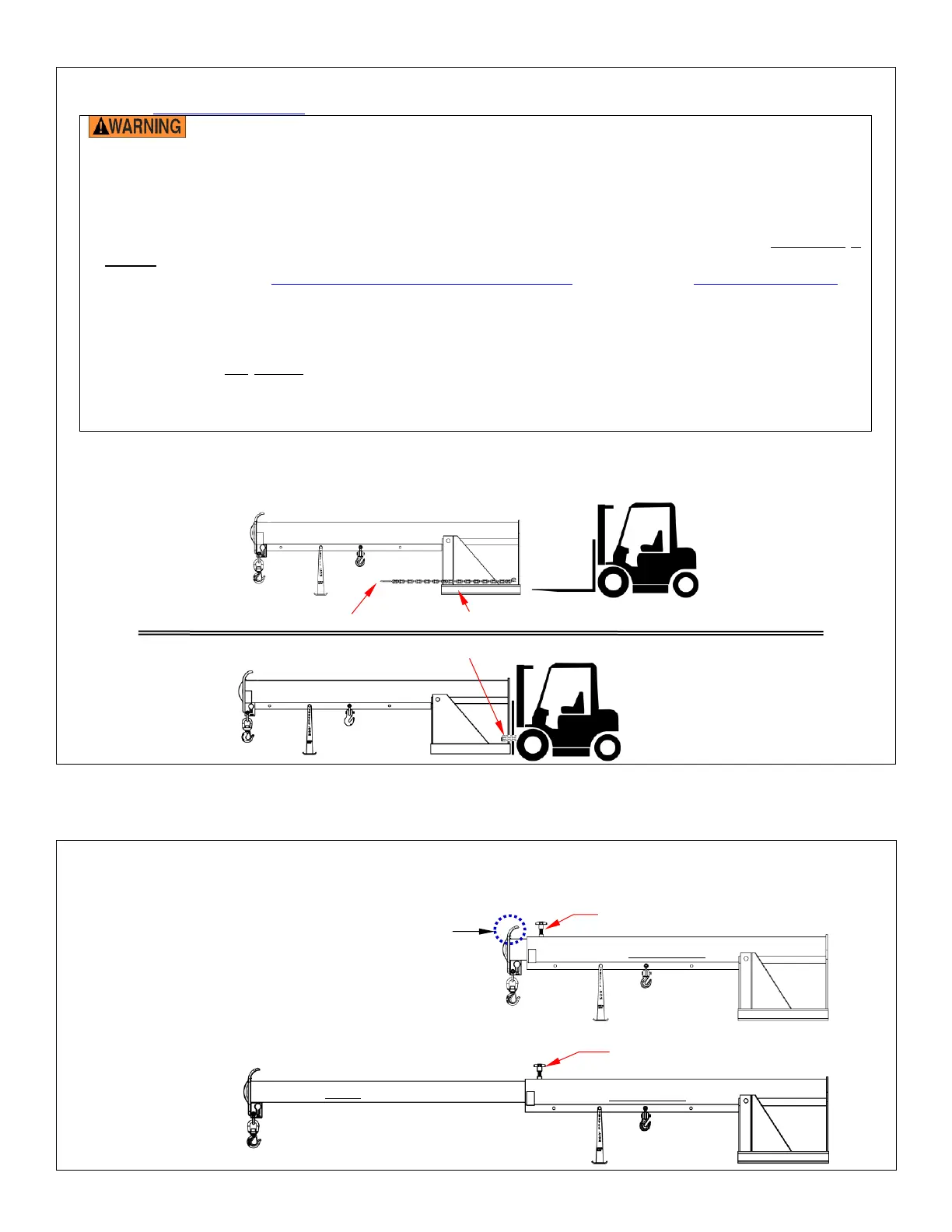

1. Drive the forklift forward and insert the tines into the fork pockets. Drive as far forward as possible. Lower the
forks completely. The drawings below demonstrate this step:
2. Securely connect the boom to the carriage of the forklift with the safety chain.
Wrap the safety chain around the fork carriage and fasten the snap hook to the chain/strap. There should
be no slack in the chain/strap. The sole purpose of the safety chain is to prevent the boom from sliding off of
the forks. It is NOT intended or designed to bear the full load rating.
3. [Telescoping models only] Adjust the boom length:
a. Loosen the X-handle locking bolt (“locking bolt”), by turning it counterclockwise.
b. Grasp the adjustment handle at the end of the boom and pull the boom to the desired length.
c. Tighten the locking bolt by turning it clockwise.
Lower the forks
against the
bottoms of the
fork pockets
Boom extension
adjustment handle
Turn locking bolt
counterclockwise to loosen
Turn locking bolt
clockwise to tighten
against boom
Boom sleeve
Boom sleeve
Boom
Fork pocket
Snap hook
Safety chain wrapped around fork carriage &
snap hook fastened to chain
