Table of Contents Rev. 10/2/2020 LLW MANUAL
Table of Contents Copyright 2020 Vestil Manufacturing Co. Page 9 of 21
Item
Part no.
Description
Qty.
Item
Part no.
Description
Qty.
1
21-514-175 WELDMENT, FRAME 1
14
21-112-002 PIN. ROLLER 4
2
21-513-002 WELDMENT, DECK 1
15
21-027-003 ROLLER, GUIDE 8
3
21-042-002-
001
HAND WINCH, ONE PIECE
STRAIGHT HANDLE GRIP
1
16
11107
HEX BOLT, GRADE A, ZINC FINISH,
3/8"-16 x 1-1/4"
5
4
21-527-002
SUB-ASSEMBLY, ROLLER W/
BUSHING
2
17
33622
SPLIT LOCK WASHER, CARBON
STEEL, MEDIUM ZINC FINISH, 3/8"
5
5
16-132-058 WHEEL, POLY ON POLY 2
18
36106
HEX NUT, GRADE A, ZINC PLATED,
3/8-16
5
6
68015
EXTERNAL RETAINING
RING,PHOSPHATE, 3/4"
2
19
21-145-013 SPECIALTY HARDWARE, THIMBLE 1
7
33018
USS FLAT WASHER, Z PLATED, Ø
3/4"
5
20
99-145-067
COMPRESSION SLEEVE Ø3/16" X 1"
LG
1
8
21-112-003
PIN, Ø1/2 X 1-15/16 LG RETAINING
CLEVIS
3
21
21-145-014
SPECIALTY HARDWARE, Ø3/16"
AIR CRAFT CABLE
1
9
65107
COTTER PIN, ZINC FINISH, Ø5/32"
X 2"
3
22
21-017-155 BAR, RETAINER 1
10
21-527-001
SUB-ASSEMBLY, PULLEY
W/BUSHING
1
23
21-037-015 LOCK, BRAKE LEVER 1
11
16-132-009 PP-4/1.25-W 2
24
21-014-227 FRAME, FLAT WASHER 1
12
11113
HEX BOLT, GRADE A, PLAIN
FINISH, 3/8"-16 X 2-1/2"
2
25
21-537-010 WELDMENT, WHEEL BRAKE 1
13
37024
NYLON INSERT LOCK NUT,
GRADE 2, ZINC FINISH, 3/8"-16
2

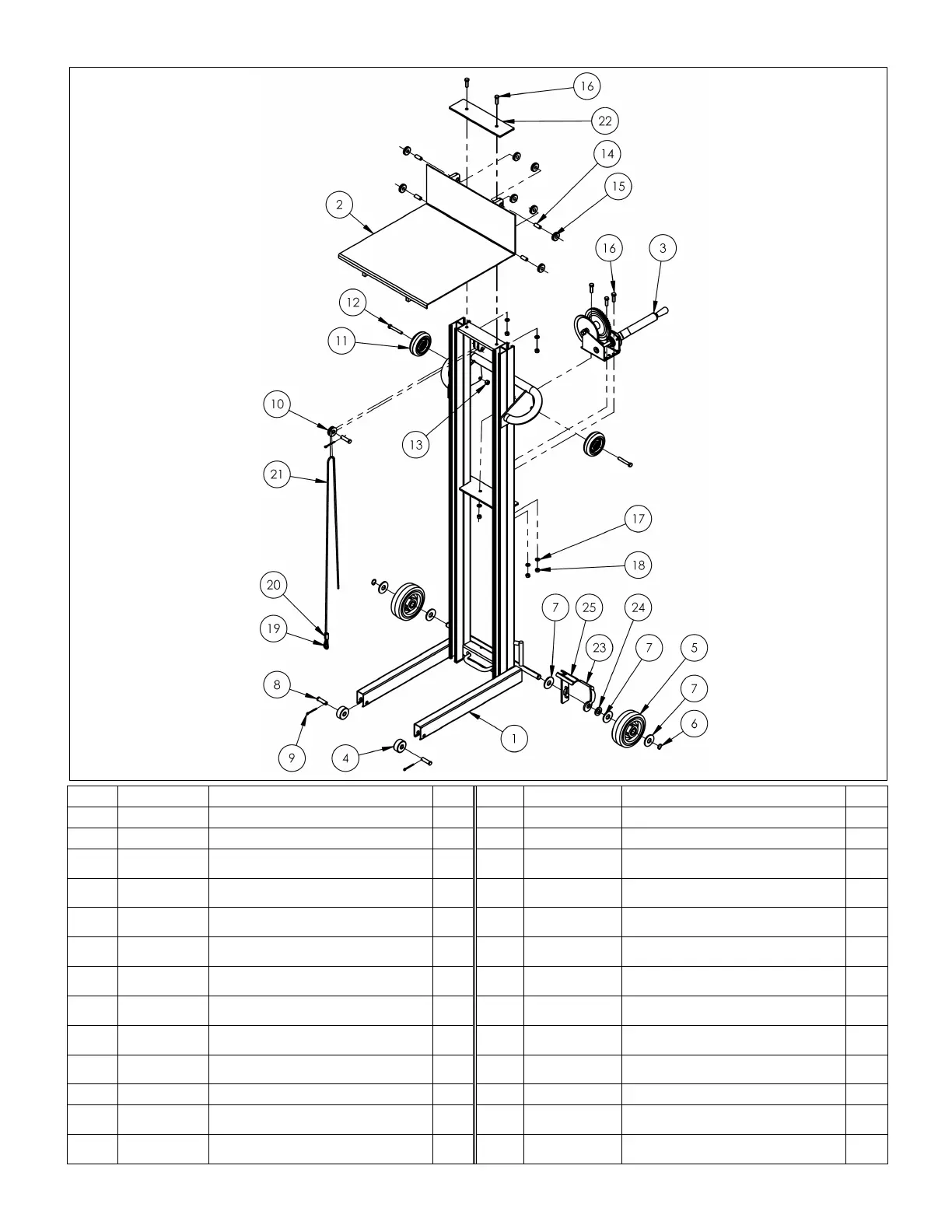

Exploded View & Bill of Materials
LLW-202058-FWWL
21-006-162
