Table of Contents Rev. 10/2/2020 LLW MANUAL
Table of Contents Copyright 2020 Vestil Manufacturing Co. Page 13 of 21

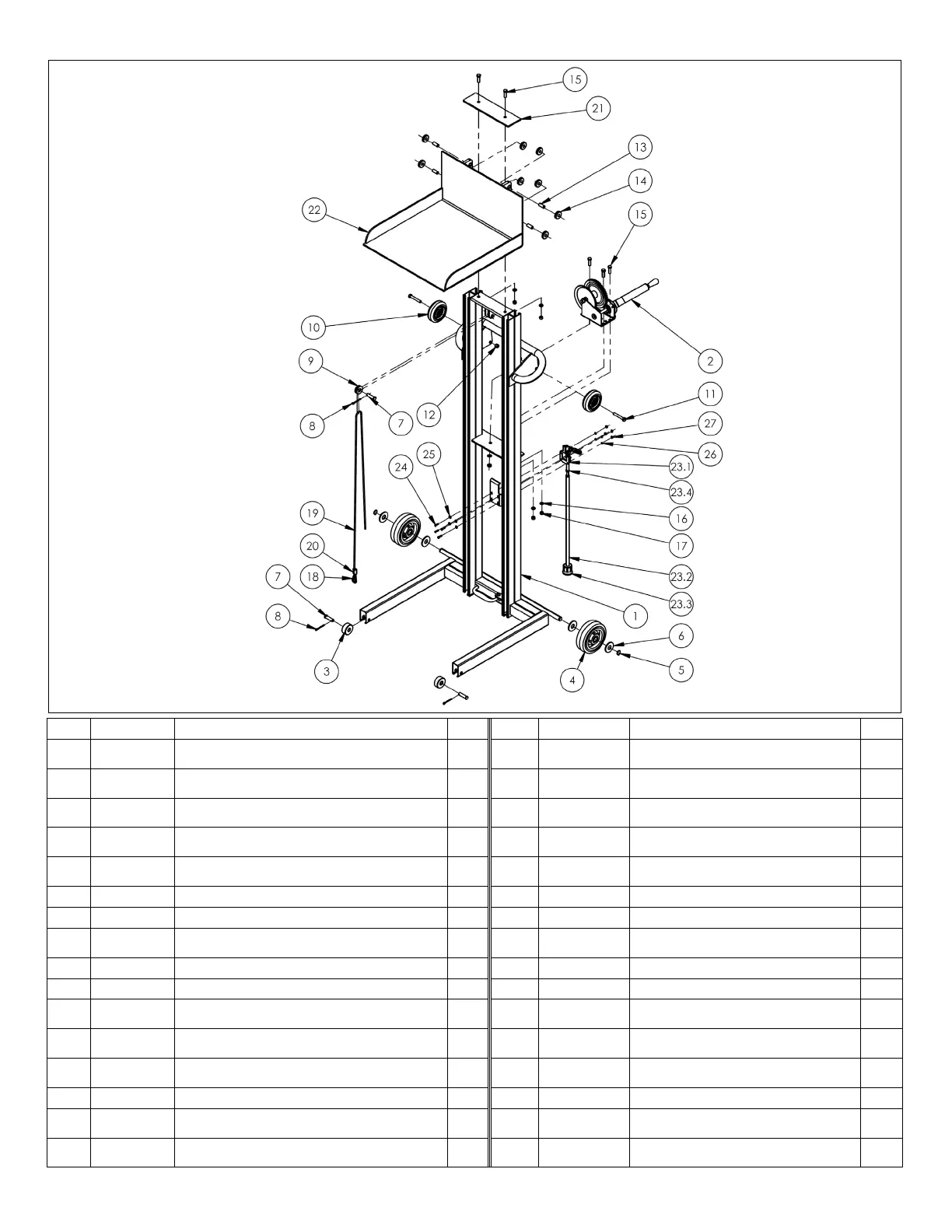

Exploded View & Bill of Materials
LLPW-500-FWFL
21-006-159
Item
Part no.
Description
Qty.
Item
Part no.
Description
Qty.
1
21-514-173 WELDMENT, FRAME 1
17
36106
HEX NUT, GRADE A, ZINC PLATED,
3/8-16
5
2
21-042-
002-001
HAND WINCH, ONE PIECE STRAIGHT
HANDLE GRIP
1
18
21-145-013 SPECIALTY HARDWARE, THIMBLE 1
3
21-527-002 SUB-ASSEMBLY, ROLLER W/ BUSHING 2
19
21-145-014
SPECIALTY HARDWARE, Ø3/16" AIR
CRAFT CABLE
1
4
16-132-058 WHEEL, POLY ON POLY 2
20
99-145-067
COMPRESSION SLEEVE Ø3/16" X 1"
LG
1
5
68015
EXTERNAL RETAINING
RING,PHOSPHATE, 3/4"
2
21
21-017-155 BAR, RETAINER 1
6
33018 USS FLAT WASHER, Z PLATED, Ø 3/4" 4
22
33-513-032 WELDMENT, DECK 1
7
21-112-003 PIN, Ø1/2 X 1-15/16 LG RETAINING CLEVIS 3
23
21-001-132 FINAL ASSEMBLY W/O SHIPPING 1
8
65107 COTTER PIN, ZINC FINISH, Ø5/32" X 2" 3
23.1
21-145-001
SPECIALTY HARDWARE, PUSH-PULL
CLAMP
1
9
21-527-001 SUB-ASSEMBLY, PULLEY W/BUSHING 1
23.2
21-537-006 WELDMENT, FLOOR LOCK 1
10
16-132-009 PP-4/1.25-W 2
23.3
14-037-005 RUBBER STOP CRUTCH TIP 1
11
11113
HEX BOLT, GRADE A, PLAIN FINISH, 3/8"-
16 X 2-1/2"
2
23.4
40307
HEX NUT, CLASS 8, ZINC PLATED,
M8-1.25
1
12
37024
NYLON INSERT LOCK NUT, GRADE 2, ZINC
FINISH, 3/8"-16
2
24
27560
#10-32 x 3/4 LG SLOTTED MACHINE
SCREW
4
13
21-112-002 PIN. ROLLER 4
25
33074
SAE FLAT WASHER, Z-PLATED, 3/16"
(#10)
4
14
21-027-003 ROLLER, GUIDE 8
26
33614 LOCK WASHER, Z-PLATED, #10 4
15
11107
HEX BOLT, GRADE A, ZINC FINISH, 3/8"-16
x 1-1/4"
5
27
36030 10-32 HEX NUT 4
16
33622
SPLIT LOCK WASHER, CARBON STEEL,
MEDIUM ZINC FINISH, 3/8"
5
