Table of Contents Rev. 10/8/2020 LLPW-CL-1560 MANUAL
Table of Contents Copyright 2020 Vestil Manufacturing Co. Page 5 of 9

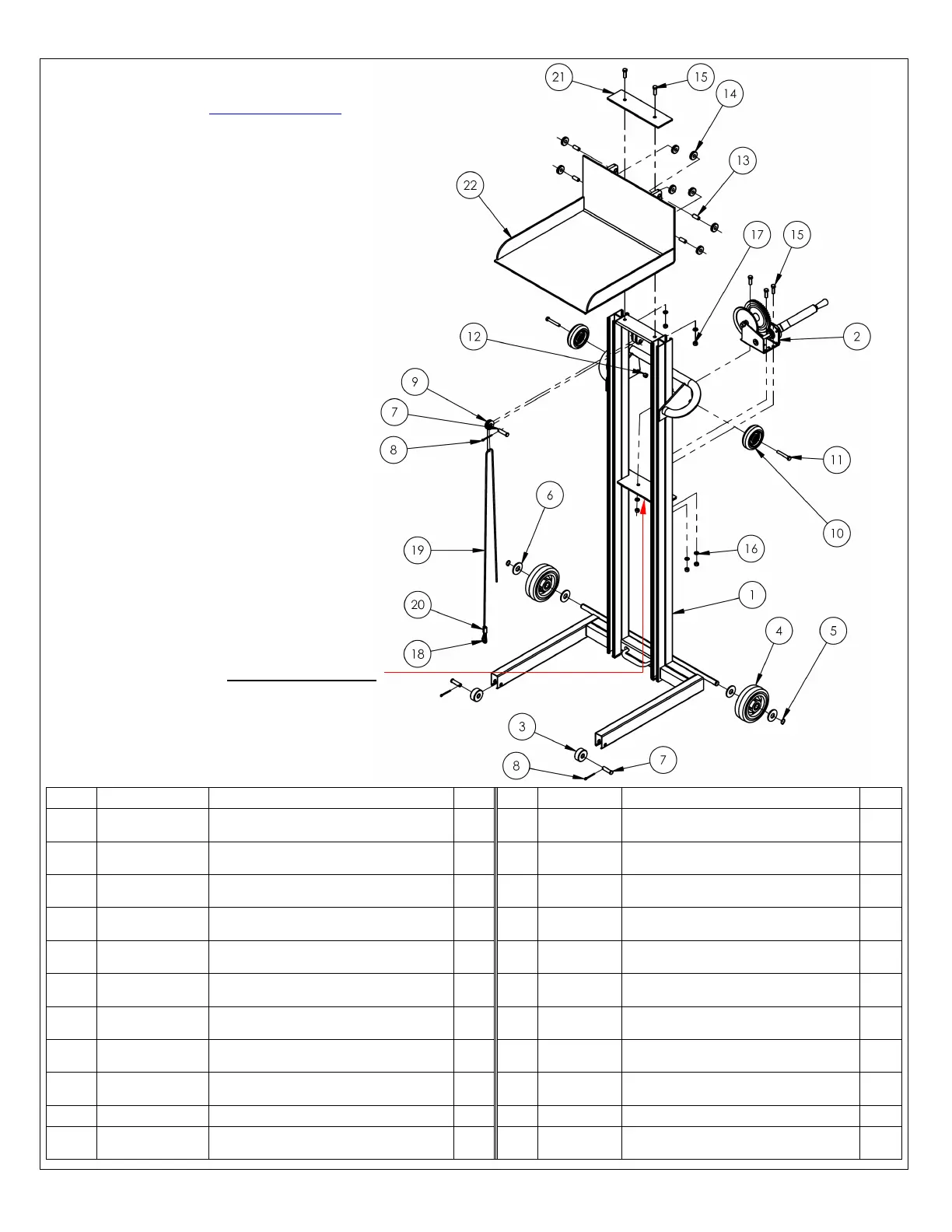

Exploded View & Bill of Materials
LL
PW-500-FW (ITEM 1 ON P. 4)
42
-006-011
ITEM
PART NO.
DESCRIPTION
QTY.
ITEM
PART NO.
DESCRIPTION
QTY.
1 33-514-056 WELDMENT, FRAME 1 12 37024
NYLON INSERT LOCK NUT,
GRADE 2, ZINC FINISH, 3/8"-16
2
2 21-042-002-001
HAND WINCH, ONE PIECE
STRAIGHT HANDLE GRIP
1 13 21-112-002 PIN. ROLLER 4
3 21-527-002
SUB-ASSEMBLY, ROLLER W/
BUSHING
2 14 21-027-003 ROLLER, GUIDE 8
4 16-132-058 WHEEL, POLY ON POLY 2 15 11107
HEX BOLT, GRADE A, ZINC
FINISH, 3/8"-16 x 1-1/4"
5
5 68015
EXTERNAL RETAINING
RING,PHOSPHATE, 3/4"
2 16 33622
SPLIT LOCK WASHER, CARBON
STEEL, MEDIUM ZINC FINISH, 3/8"
5
6 33018
USS FLAT WASHER, Z PLATED, Ø
3/4"
4 17 36106
HEX NUT, GRADE A, ZINC
PLATED, 3/8-16
5
7 21-112-003
PIN, Ø1/2 X 1-15/16 LG
RETAINING CLEVIS
3 18 21-145-013 SPECIALTY HARDWARE, THIMBLE
1
8 65107
COTTER PIN, ZINC FINISH, Ø5/32"
X 2"
3 19 21-145-014
SPECIALTY HARDWARE, Ø3/16"
AIRCRAFT CABLE
1
9 21-527-001
SUB-ASSEMBLY, PULLEY
W/BUSHING
1 20 99-145-067
COMPRESSION SLEEVE Ø3/16" X
1" LG
1
10
16-132-009
PP-4/1.25-W
2
21
21-017-155
BAR, RETAINER
1
11 11113
HEX BOLT, GRADE A, PLAIN
FINISH, 3/8"- 16 X 2-1/2"
2 22 33-513-032 WELDMENT, DECK 1
Winch mounting plate
