Table of Contents Rev. 8/15/2023 LLPH MANUAL
Table of Contents Copyright 2020 Vestil Manufacturing Co. Page 14 of 29
LLPH-500-FWFL

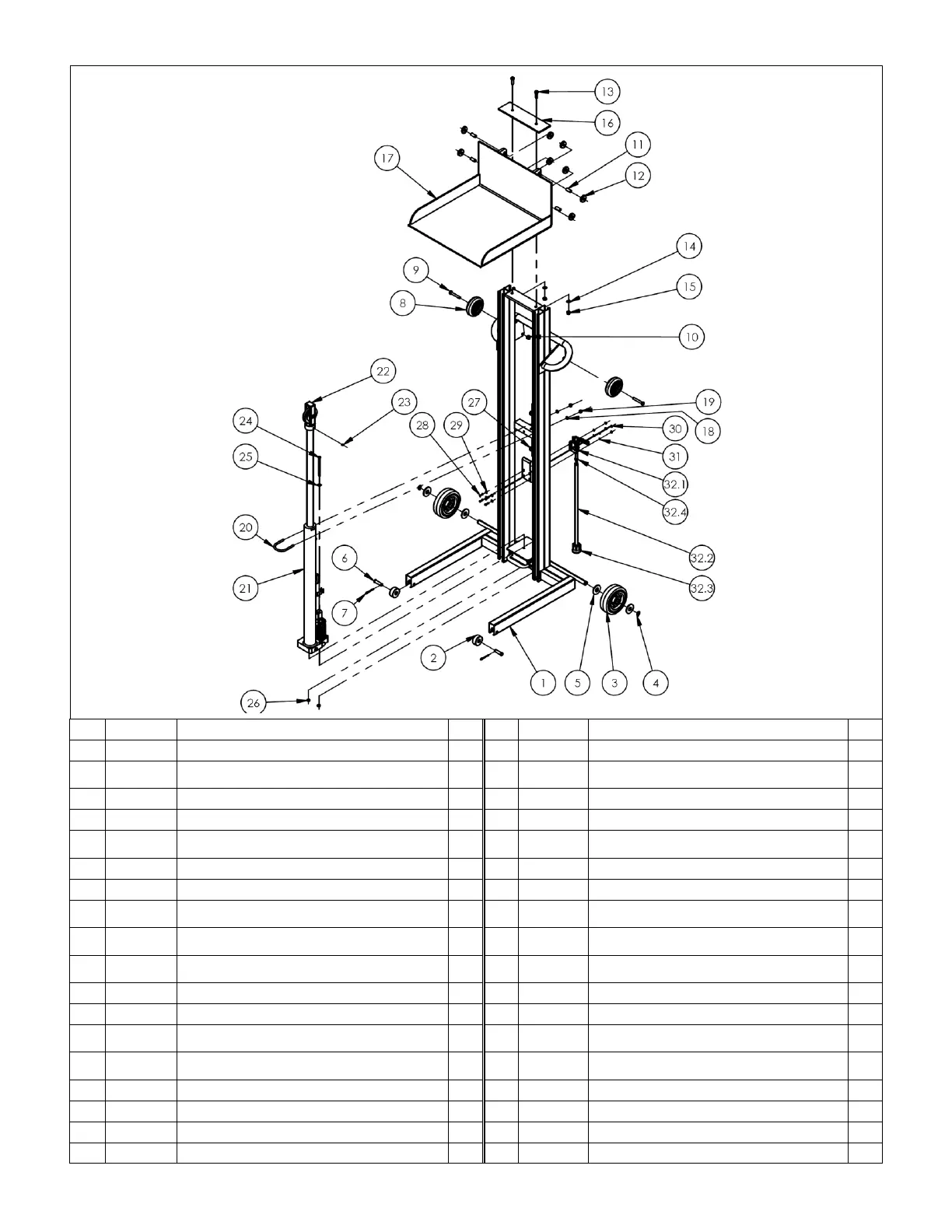

EXPLODED VIEW & BILL OF MATERIALS
21-006-160
Item
Part no.
Description
Qty.
Item
Part no.
Description
Qty.
1
21-514-174
WELDMENT, FRAME
1
19
36104
HEX NUT, GRADE A, ZINC PLATED, 5/16-18
2
2
21-527-002
SUB-ASSEMBLY, ROLLER W/ BUSHING
2
20
42034
U-BOLT, ZINC PLATED, Ø5/16"-18 X 2" PIPE
SIZE
1
3
16-132-058
WHEEL, POLY ON POLY
2
21
01-640-031
PUMP, MANUAL, STK 24" FHJ
1
4
68015
EXTERNAL RETAINING RING,PHOSPHATE, 3/4"
2
22
33-542-001
ASSEMBLY, PULLEY
1
5
33018
USS FLAT WASHER, Z PLATED, Ø 3/4"
4
23
25326
SOCKET SET SCREW, BLACK OXIDE, 1/4-20 X
1/4"
1
6
21-112-003
PIN, Ø1/2 X 1-15/16 LG RETAINING CLEVIS
2
24
11021
HHCS #2 Z PLATED, Ø1/4 - 20 UNC x 4 1/2 LG
2
7
65107
COTTER PIN, ZINC FINISH, Ø5/32" X 2"
2
25
33004
FLAT WASHER, USS, ZINC PLATED, Ø1/4"
2
8
16-132-009
PP-4/1.25-W
2
26
37018
NYLON LOCK NUT,GRADE 2, ZINC
FINISH,1/4"-20
2
9
11113
HEX BOLT, GRADE A, PLAIN FINISH, 3/8"-16 X
2-1/2"
2
27
36110
HEX NUT Z-PLATED, Ø 1/2 - 13
2
10
37024
NYLON INSERT LOCK NUT, GRADE 2, ZINC
FINISH, 3/8"-16
2
28
27560
#10-32 x 3/4 LG SLOTTED MACHINE SCREW
4
11
21-112-002
PIN. ROLLER
4
29
33074
SAE FLAT WASHER, Z-PLATED, 3/16" (#10)
4
12
21-027-003
ROLLER, GUIDE
8
30
36030
10-32 HEX NUT
4
13
11107
HEX BOLT, GRADE A, ZINC FINISH, 3/8"-16 x 1-
1/4"
2
31
33614
LOCK WASHER, Z-PLATED, #10
4
14
33622
SPLIT LOCK WASHER, CARBON STEEL,
MEDIUM ZINC FINISH, 3/8"
2
32
21-001-132
FLOOR LOCK, HAND, ASSEMBLY
1
15
36106
HEX NUT, GRADE A, ZINC PLATED, 3/8-16
2
32.1
21-145-001
SPECIALTY HARDWARE, PUSH-PULL CLAMP
1
16
21-017-155
BAR, RETAINER
1
32.2
21-537-006
WELDMENT, FLOOR LOCK
1
17
33-513-032
WELDMENT, DECK
1
32.3
14-037-005
RUBBER STOP CRUTCH TIP
1
18
33620
LOCK WASHER, MEDIUM SPLIT, Ø5/16"
2
32.4
40307
HEX NUT, CLASS 8, ZINC PLATED, M8-1.25
1
