Table of Contents Rev. 8/15/2023 LLPH MANUAL
Table of Contents Copyright 2020 Vestil Manufacturing Co. Page 7 of 29
Item
Part no.
Description
Qty.
Item
Part no.
Description
Qty.
1
42-514-013
WELDMENT, FRAME
1
13
21-027-003
ROLLER, GUIDE ROLLER
8
2
42-513-006
WELDMENT, DECK
1
14
33-542-001
ASSEMBLY, PULLEY
1
3
21-527-002
SUB-ASSEMBLY, ROLLER W/ BUSHING
2
15
42034
U-BOLT, ZINC PLATED, Ø5/16"-18 X 2" PIPE
SIZE
1
4
16-132-058
WHEEL, POLY ON POLY
2
16
33620
LOCK WASHER, MEDIUM SPLIT, Ø5/16"
2
5
68015
EXTERNAL RETAINING
RING,PHOSPHATE, 3/4"
2
17
36104
HEX NUT, GRADE A, ZINC PLATED, 5/16-18
2
6
33018
USS FLAT WASHER, Z PLATED, Ø 3/4"
4
18
11021
HHCS #2 Z PLATED, Ø1/4 - 20 UNC x 4 1/2
LG
2
7
21-112-003
PIN, Ø1/2 X 1-15/16 LG RETAINING
CLEVIS
2
19
36102
HEX NUT, GRADE A, ZINC PLATED, 1/4-20
2
8
65107
COTTER PIN, ZINC FINISH, Ø5/32" X 2"
2
20
01-640-031
PUMP, MANUAL, STK 24" FHJ
1
9
16-132-009
PP-4/1.25-W
2
21
13-025-004-002
HANDLE, WITH HOLES
1
10
11113
HEX BOLT, GRADE A, PLAIN FINISH,
3/8"-16 X 2-1/2"
2
22
31802
SCREW, SELF-TAPPING SCREW
2
11
37024
NYLON INSERT LOCK NUT, GRADE 2,
ZINC FINISH, 3/8"-16
2
23
36110
HEX NUT Z-PLATED, Ø 1/2 - 13
2
12
21-112-002
PIN. ROLLER
4
*24
33-542-003
CHAIN, CHAIN ASSEMBLY
1
ALLH-2020-FW

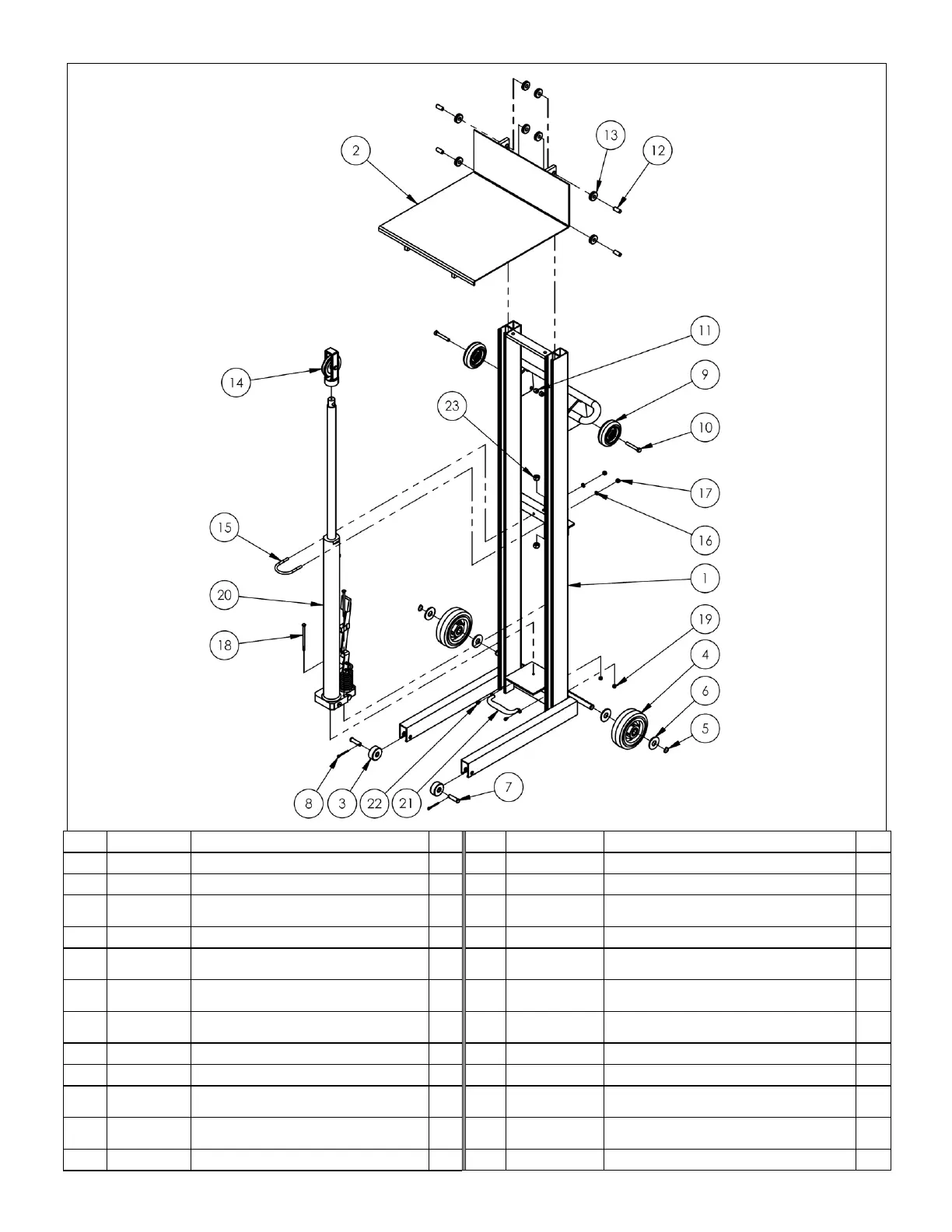

EXPLODED VIEW & BILL OF MATERIALS
42-006-018
*Item 24 not shown
