Table of Contents Rev. 8/15/2023 LLPH MANUAL
Table of Contents Copyright 2020 Vestil Manufacturing Co. Page 5 of 29
LLH-202053-FW

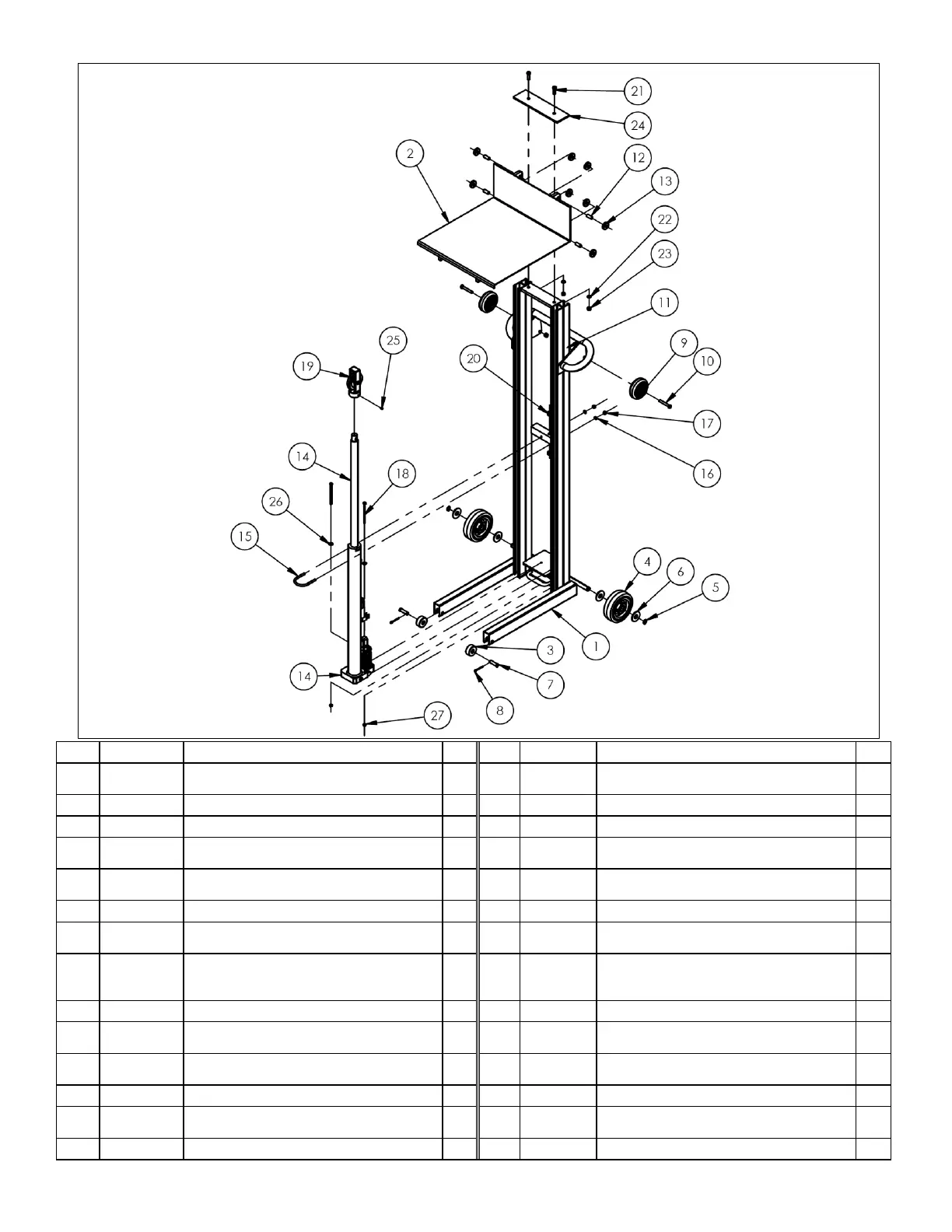

EXPLODED VIEW & BILL OF MATERIALS
21-006-004
Item
Part no.
Description
Qty.
Item
Part no.
Description
Qty.
1
21-514-004
WELDMENT, FRAME
1
15
42034
U-BOLT, ZINC PLATED, Ø5/16"-18 X 2" PIPE
SIZE
1
2
21-513-002
WELDMENT, DECK
1
16
33620
LOCK WASHER, MEDIUM SPLIT, Ø5/16"
2
3
21-527-002
SUB-ASSEMBLY, ROLLER W/ BUSHING
2
17
36104
HEX NUT, GRADE A, ZINC PLATED, 5/16-18
2
4
16-132-058
WHEEL, POLY ON POLY
2
18
11021
HHCS #2 Z PLATED, Ø1/4 - 20 UNC x 4 1/2
LG
2
5
68015
EXTERNAL RETAINING RING,PHOSPHATE,
3/4"
2
19
33-542-001
ASSEMBLY, PULLEY
1
6
33018
USS FLAT WASHER, Z PLATED, Ø 3/4"
4
20
36110
HEX NUT Z-PLATED, Ø 1/2 - 13
2
7
21-112-003
PIN, Ø1/2 X 1-15/16 LG RETAINING
CLEVIS
2
21
11107
HEX BOLT, GRADE A, ZINC FINISH, 3/8"-16 x
1-1/4"
2
8
65107
COTTER PIN, ZINC FINISH, Ø5/32" X 2"
2
22
33622
SPLIT LOCK WASHER, CARBON STEEL,
MEDIUM ZINC
FINISH, 3/8"
2
9
16-132-009
PP-4/1.25-W
2
23
36106
HEX NUT, GRADE A, ZINC PLATED, 3/8-16
2
10
11113
HEX BOLT, GRADE A, PLAIN FINISH, 3/8"-
16 X 2-1/2"
2
24
21-017-155
BAR, RETAINER
1
11
37024
NYLON INSERT LOCK NUT, GRADE 2,
ZINC FINISH, 3/8"-16
2
25
25326
SOCKET SET SCREW, BLACK OXIDE, 1/4-20 X
1/4"
1
12
21-112-002
PIN. ROLLER
4
26
33004
FLAT WASHER, USS, ZINC PLATED, Ø1/4"
2
13
21-027-003
ROLLER, GUIDE
8
27
37018
NYLON LOCK NUT,GRADE 2, ZINC
FINISH,1/4"-20
2
14
01-640-031
PUMP, MANUAL, STK 24" FHJ
1
