Table of Contents Rev. 8/15/2023 LLPH MANUAL
Table of Contents Copyright 2020 Vestil Manufacturing Co. Page 11 of 29
Item
Part no.
Description
Qty.
Item
Part no.
Description
Qty.
1
42-514-015
WELDMENT, FRAME
1
14
42034
U-BOLT, ZINC PLATED, Ø5/16"-18 X
2" PIPE SIZE
1
2
42-513-007
WELDMENT, DECK
1
15
33620
LOCK WASHER, MEDIUM SPLIT,
Ø5/16"
2
3
21-001-132
FLOOR LOCK, HAND, ASSEMBLY
1
16
36104
HEX NUT, GRADE A, ZINC PLATED,
5/16-18
2
4
68015
EXTERNAL RETAINING
RING,PHOSPHATE, 3/4"
2
17
36102
HEX NUT, GRADE A, ZINC PLATED,
1/4-20
2
5
33018
USS FLAT WASHER, Z PLATED, Ø
3/4"
4
18
11019
HEX BOLT, GRADE A, ZINC
PLATED, 1/4" - 20 x 4"
2
6
16-132-009
PP-4/1.25-W
2
19
01-640-031
PUMP, MANUAL, STK 24" FHJ
1
7
11113
HEX BOLT, GRADE A, PLAIN FINISH,
3/8"-16 X 2-1/2"
2
20
13-025-004-002
HANDLE, WITH HOLES
1
8
37024
NYLON INSERT LOCK NUT, GRADE
2, ZINC FINISH, 3/8"-16
2
21
31802
SCREW, SELF-TAPPING SCREW
2
9
21-027-003
ROLLER, GUIDE ROLLER
8
22
36110
HEX NUT Z-PLATED, Ø 1/2 - 13
2
10
21-112-002
PIN. ROLLER
4
23
99-612-001
PIN, BULLDOG BOLT AND NUT
ASSEMBLY
4
11
16-132-011
CASTER SWIVEL, 4X2
4
*24
33-542-003
CHAIN, CHAIN ASSEMBLY
1
12
16-132-200
CASTER, PP-8/2-W, RED
2
25
27560
#10-32 x 3/4 LG SLOTTED
MACHINE SCREW
4
13
33-542-001
ASSEMBLY, PULLEY
1
26
37015
10-32 NYLOCK NUT Z-PLATED
4
Floor lock
bracket
* Item 24 not shown
ALLH-2420-4SFL

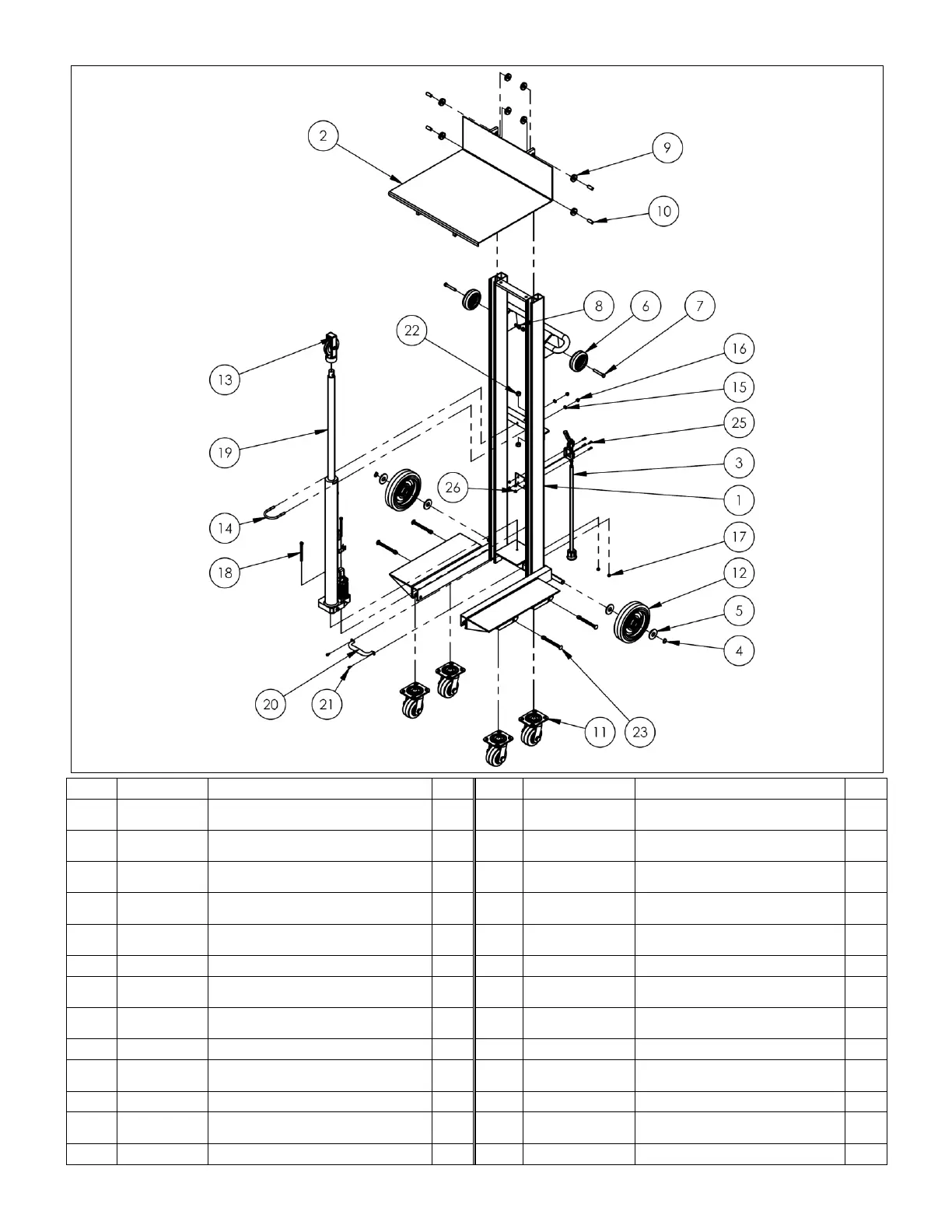

EXPLODED VIEW & BILL OF MATERIALS
42-006-012
