TABLE OF CONTENTS Rev. 7/14/2021 LLCB-202058 MANUAL
TABLE OF CONTENTS Copyright 2021 Vestil Manufacturing Co. Page 4 of 8

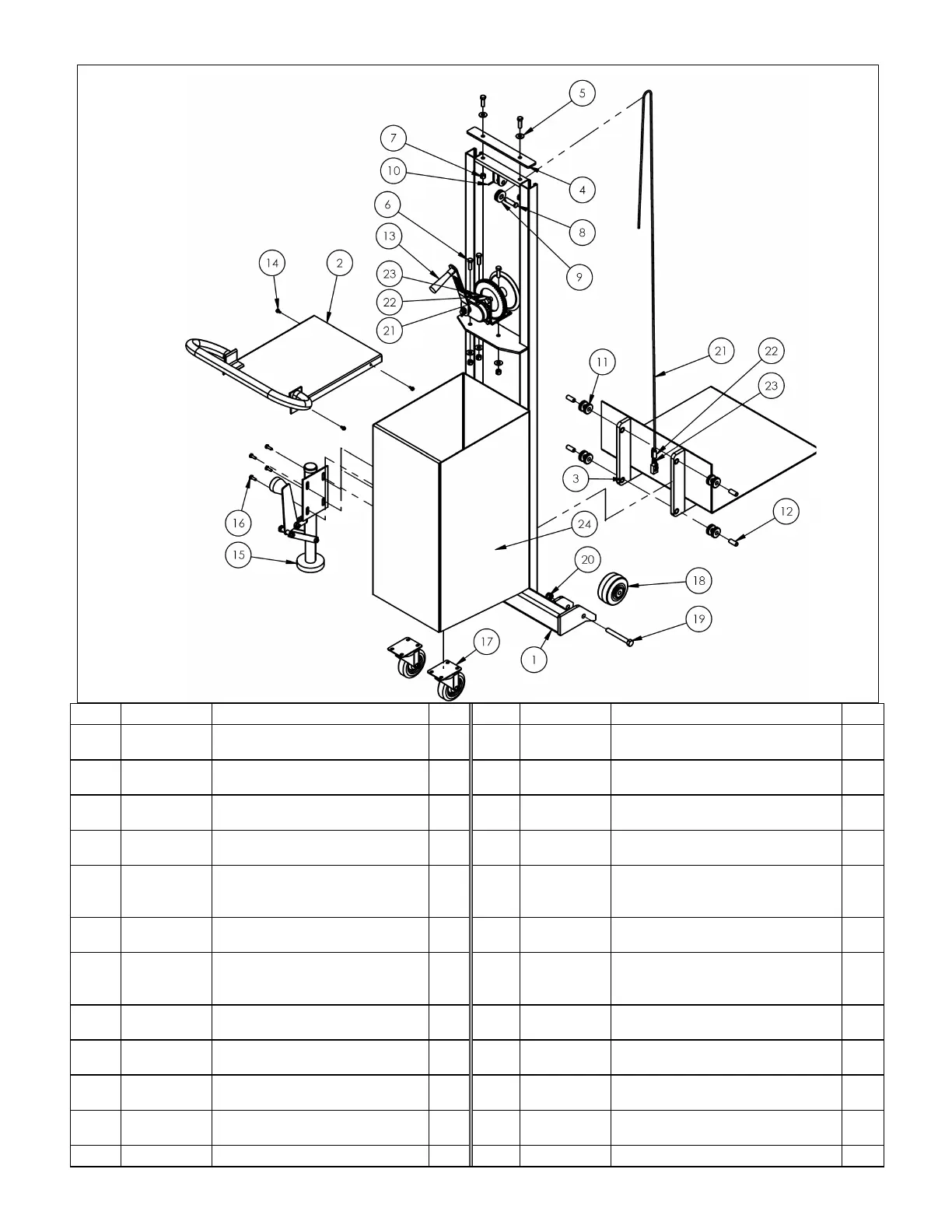

LLCB-202058 EXPLODED VIEW & BILL OF MATERIALS
21-006-062
Item
Part no.
Description
Qty.
Item
Part no.
Description
Qty.
1 21-514-076 WELDMENT, FRAME 1 13
21-042-002-
001
HAND WINCH, ONE PIECE
STRAIGHT HANDLE GRIP
1
2 21-525-004
WELDMENT, COVER
HANDLE
1 14 31802
SCREW, SELF-TAPPING
SCREW
4
3 21-513-002 WELDMENT, PLATFORM 1 15 16-132-081
FLOOR LOCK ASSEMBLY, LEFT
MOUNT
1
4 21-017-016 BAR STIFFENER 1 16 11003
HEX BOLT, GRADE A, ZINC
PLATED, 1/4-20 X 3/4"
4
5 33008
FLAT WASHER, LOW
CARBON, USS, ZINC
PLATED, 3/8"
5 17 16-132-196
4" POLY ON POLY SWIVEL
CASTER
2
6 11107
HEX BOLT, GRADE A, ZINC
FINISH, 3/8"-16 x 1-1/4"
5 18 16-132-011
4 x 2 MOLD ON RUBBER
SWIVEL
2
7 37024
NYLON INSERT LOCK NUT,
GRADE 2, ZINC FINISH, 3/8"-
16
5 19 11219
BOLT, HEX HEAD, Ø 1/2 - 13
UNC X 4 LG
2
8 21-112-003
PIN, Ø1/2 X 1-15/16 LG
RETAINING CLEVIS
1 20 37030
1/2"-13 NYLON INSERT LOCK
NUT
2
9 21-527-001
SUB-ASSEMBLY, PULLEY
W/BUSHING
1 21 21-145-014
SPECIALTY HARDWARE,
Ø3/16" AIR CRAFT CABLE
1
10 65076
Ø1/8" X 1" COTTER PIN, Z-
PLATED
1 22 99-145-067
COMPRESSION SLEEVE Ø3/16"
X 1" LG
1
11 21-027-003 ROLLER, GUIDE 8 23 21-145-013
SPECIALTY HARDWARE,
THIMBLE
1
12
21-112-002
PIN. ROLLER
4
24
15-014-039
FRAME, COUNTERWEIGHT
1
