Table of Contents Rev. 3.19.2020 LAD-TRS MANUAL
Table of Contents Copyright 2020 Vestil Manufacturing Co. Page 5 of 13
Item
Part no.
Description
Qty.
Item
Part no.
Description
Qty.
1
44-647-105
44-647-100
44-647-106
44-647-101
Weldment, step frame, 50°:
LAD-TRS-50-5-P
LAD-TRS-50-5-G
LAD-TRS-50-6-P
LAD-TRS-50-6-G
1
1
1
1
10
99-024-027
Square cap, 1” x 1” Duro.
2
11
99-024-028
Square cap, 1
1
/
2
” x 1
1
/
2
”
2
12
99-025-025
1” plastic plug (black)
4
13
11055 Hex bolt, HHCS,
5
/
16
”-18UNCx1” 4
14
11060
Hex bolt, gr. A, zinc plated,
5
/
16
”-
18UNC x 1
3
/
4
”
18
2
44-514-302
44-514-303
Weldment, back leg, 26” step:
5-step: LAD-TRS-5-P & -G
6-step: LAD-TRS-6-P & -G
1
1
15
11062
Hex bolt, #2,HHCS, zinc plated,
5
/
16
”-18UNC x 2
1
/
4
”
4
16
11107
Hex bolt, gr. A, zinc finish,
3
/
8
”-
16x1
1
/
4
”
2
3
44-514-313 Weldment, frame, caster tilter 2
17
11113
Hex bolt, gr. A,
3
/
8
”-16x2
1
/
2
”
2
4
44-514-314
Weldment, frame, back platform
1
18
33006
Flat washer, zinc plated, USS,
5
/
16
”
4
5
44-524-114
44-524-115
Weldment, handrail, 50° 26” step
5-step: LAD-TRS-2-P & -G
6-step: LAD-TRS-3-P & -G
2
2
19
33008
Flat washer, low carbon, USS
zinc plated,
3
/
8
”
2
20
33622
Split lock washer, carbon steel,
medium zinc finish,
3
/
8
”
2
6
16-132-009
Wheel, PP-4/1.25-W
2
7
21-024-016
Square cap, 1” x 1”, 60 Duro.
2
21
37021
Nylon insert lock nut, gr. 2, zinc
finish,
5
/
16
”-18
26
8
44-014-492
44-014-238
Base support:
LAD-TRS-50-5-P & -G
LAD-TRS-50-6-P & -G
2
2
9
44-014-487 Frame, tube, back leg 2
22
37024
Nylon insert lock nut, gr. 2, zinc
finish,
3
/
8
”-16
2
23
44-001-406 Ladder tool tray, 23
9
/
16
” 1

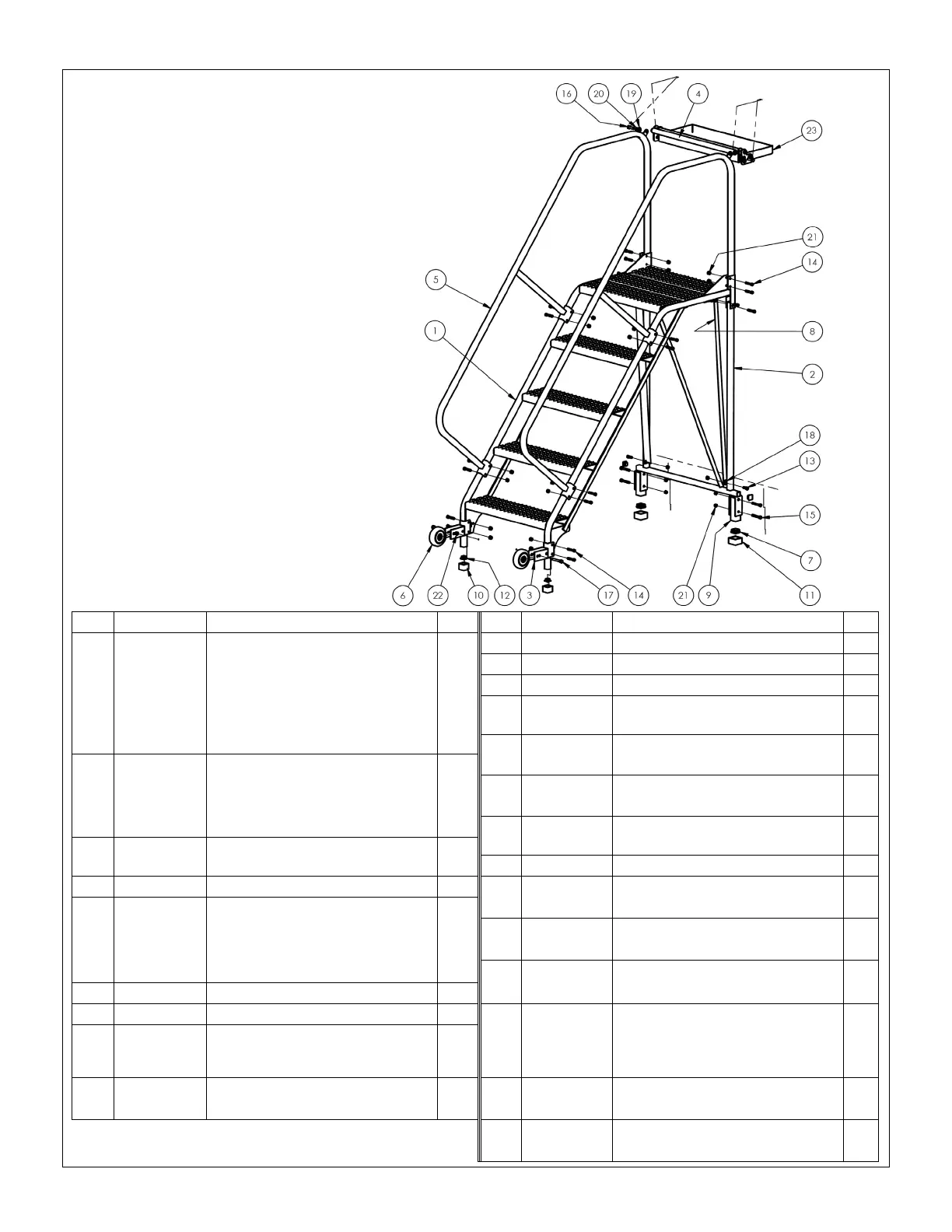

Exploded View & Bill of Materials:
LAD-TRS-50-5-P & LAD-TRS-50-5-G
LAD-TRS-50-6-P & LAD-TRS-50-6-G
*NOTE: Diagram shows LAD-TRS-50-5-G.
44-006-349
